20051 - Toro 22" Recycler Walk-Behind Mower (SN: 240000001 - 240999999) (2004) HANDLE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

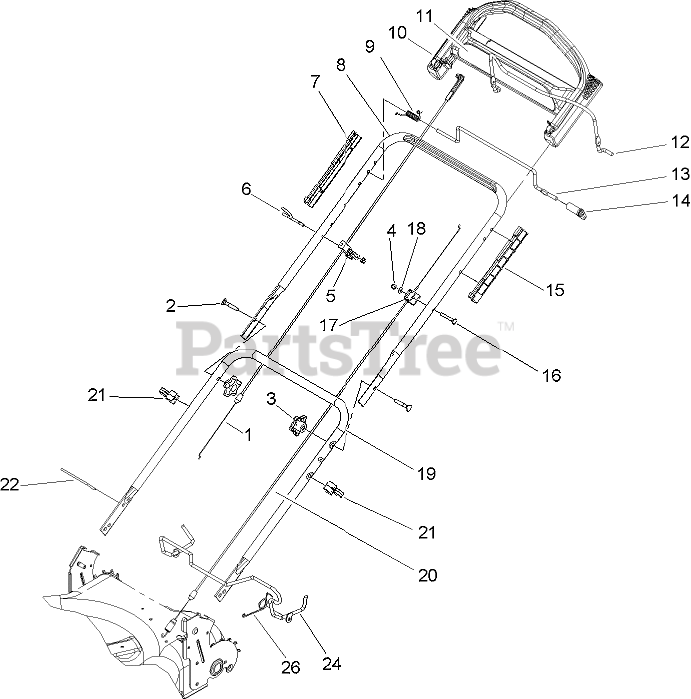

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8676

Cable-Brake

$34.99

$

In Stock, only 2 left!

0

2

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 5

0

3

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, only 2 left!

0

4

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

5

Toro 106-8331

ANCHOR-CABLE

$5.99

$

In Stock, Qty 8

0

6

Toro 106-8330

GUIDE-ROPE

$5.99

$

In Stock, only 3 left!

0

7

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, only 2 left!

0

8

Toro 104-8680-05

Handle-Upper

$74.99

$

In Stock, only 1 left!

0

9

Toro 104-8690

Spring-Torsion
(Superseded to 136-7166)

$3.49

$

In Stock, Qty 6

0

10

Toro 104-8678

HANDLE-CONTROL

$83.99

$

In Stock, only 1 left!

0

11

Toro 105-3033

Decal-Handle, Control

$25.99

$

Usually ships in 3-6 days

0

12

Toro 104-8679-03

Bail-Brake
(Superseded to 131-0880-03)

$25.99

$

In Stock, only 1 left!

0

13

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$17.99

$

In Stock, only 1 left!

0

14

Toro 99-1589

LEVER-TRACTION

$7.99

$

In Stock, Qty 15

0

15

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 3 left!

0

16

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 8

0

17

Toro 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, only 4 left!

0

18

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 107-0784-05

HANDLE-LOWER
(Superseded to 112-6440-05)

$67.99

$

In Stock, only 1 left!

0

20

Toro 105-1844

Cable-Traction

$27.99

$

In Stock, only 4 left!

0

21

Toro 106-6805

Guide-Cable
(Superseded to 114-7988)

$2.99

$

In Stock, Qty 7

0

22

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

24

Toro 107-0768

RELEASE LEVER ASM

$

$

Not available

26

Toro 107-7472

SPRING-TORSION

$4.49

$

Usually ships in 3-6 days

0
