200500 - Murray 16" Steelfort Lazer Walk-Behind Mower (2006) Handles Group (200500hdl) Parts Diagram

16" Steelfort Lazer Walk-Behind Mower

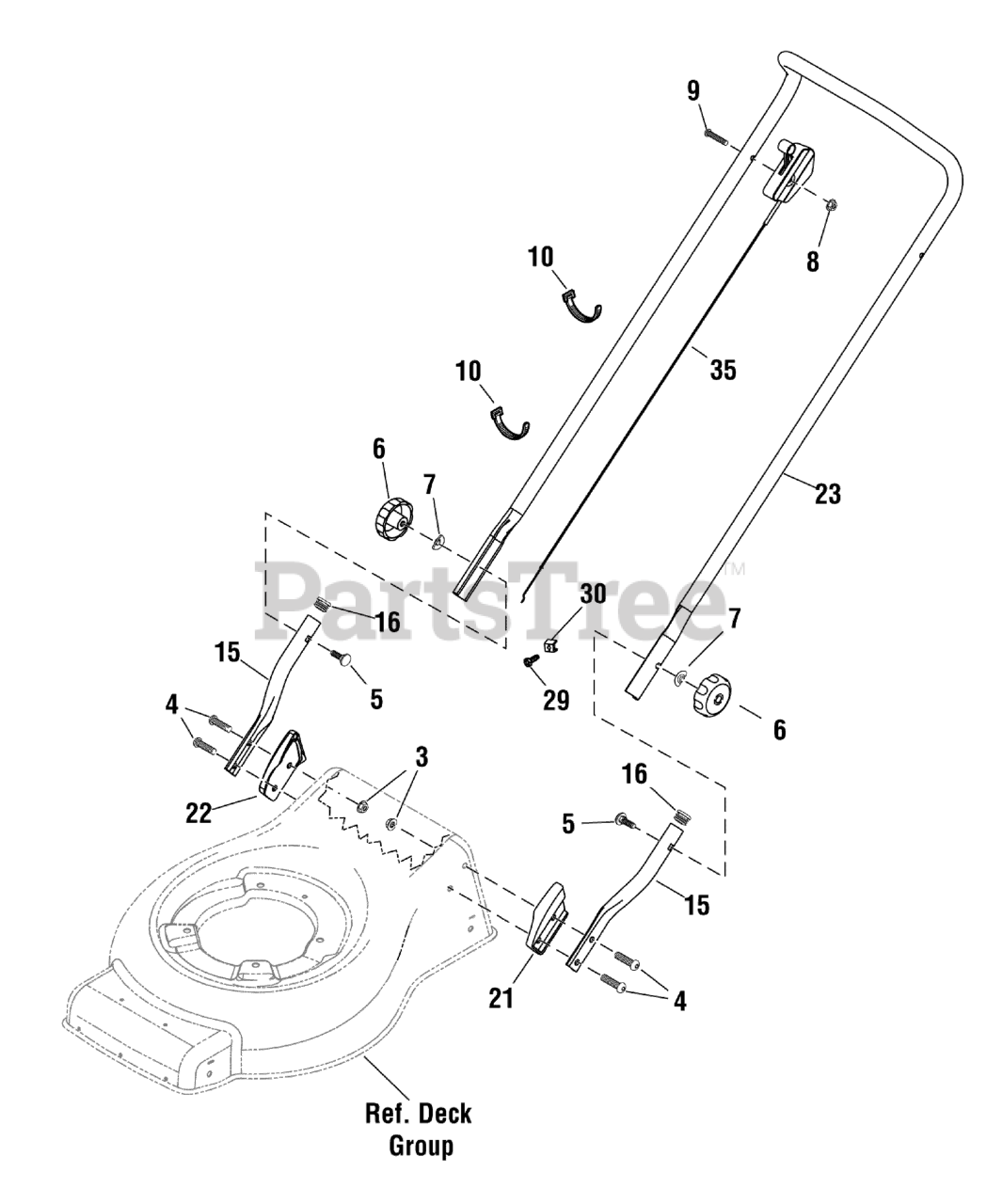

Handles Group (200500hdl) Parts Diagram

  • Title

3

Murray 700002

NUT, Lock, Nylon, M8 - 1.25
(Superseded to 880020YP)

$3.99

$

Usually ships in 2-12 days

0

4

Murray 700003

BOLT, Hex Key Head, M8 x 1.25

$

$

Currently unavailable

5

Murray 700004

BOLT, Carriage, M8 x 1.25

$

$

Currently unavailable

6

Murray 700005

KNOB, M8 x 1.25

$

$

Currently unavailable

7

Murray 700006

WASHER, Formed

$

$

Currently unavailable

8

Murray 700008

NUT, Hex Lock, M6 x 1

$

$

Currently unavailable

9

Murray 700009

SCREW, Button Head, M6 x 1

$

$

Not available

10

Murray 700010

TIE, Cable
(Superseded to 880029YP)

$3.99

$

Usually ships in 2-12 days

0

15

Murray 700018

HANDLE, Lower

$

$

Currently unavailable

16

Murray 700019

PLUG, 7/8

$

$

Currently unavailable

21

Murray 700021

BRACKET, Handle Mount, LH

$

$

Currently unavailable

22

Murray 700022

BRACKET, Handle Mount, RH

$

$

Currently unavailable

23

Murray 700023

HANDLE, Upper

$

$

Currently unavailable

29

Murray 700048

SCREW

$

$

Currently unavailable

30

Murray 700049

CLAMP, Cable

$

$

Currently unavailable

35

Murray 700050

THROTTLE CABLE ASSEMBLY

$

$

Currently unavailable
