20050 (E 120) - Toro Carefree Recycler Electric Walk-Behind Mower (SN: 200000001 - 200999999) (2000) DECK, LINER AND WHEEL ASSEMBLY Parts Diagram

Carefree Recycler Electric Walk-Behind Mower

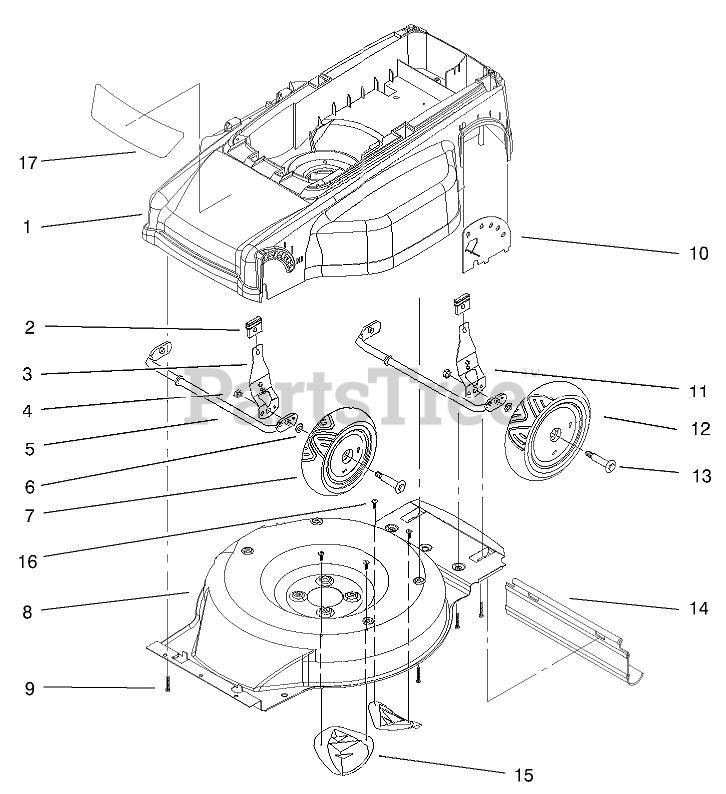

DECK, LINER AND WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 94-3895

DECK ASM

$

$

Not available

2

Toro 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$12.99

$

In Stock, only 2 left!

0

3

Toro 94-3870

LEVER ASM-HOC, FRONT

$17.99

$

Usually ships in 3-6 days

0

4

$2.99

$

In Stock, only 2 left!

0

5

$

$

Not available

6

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

7

Toro 92-9586

WHEEL ASM

$

$

Not available

8

Toro 95-5167

LINER ASM
(Superseded to 95-5162)

$

$

Not available

9

Toro 93-3985

SCREW - PPH

$

$

Not available

10

Toro 95-5037

PLATE - HOC

$

$

Not available

11

Toro 94-3871

LEVER ASM-HOC, REAR

$

$

Not available

12

Toro 93-0344

WHEEL ASM

$

$

Not available

13

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 11

0

14

Toro 94-7417

SHIELD-TRAILING
(Superseded to 93-3976)

$17.99

$

Usually ships in 3-6 days

0

15

Toro 76-2160

PLATE-KICKER

$15.99

$

In Stock, Qty 5

0

16

Toro 94-6961

SCREW

$1.49

$

In Stock, only 3 left!

0

17

Toro 99-6727

DECAL-DECK

$

$

Not available
