20050 (E 120) - Toro Carefree Recycler Electric Walk-Behind Mower (SN: 099000001 - 099999999) (1999) MOTOR & BLADE ASSEMBLY Parts Diagram

Carefree Recycler Electric Walk-Behind Mower

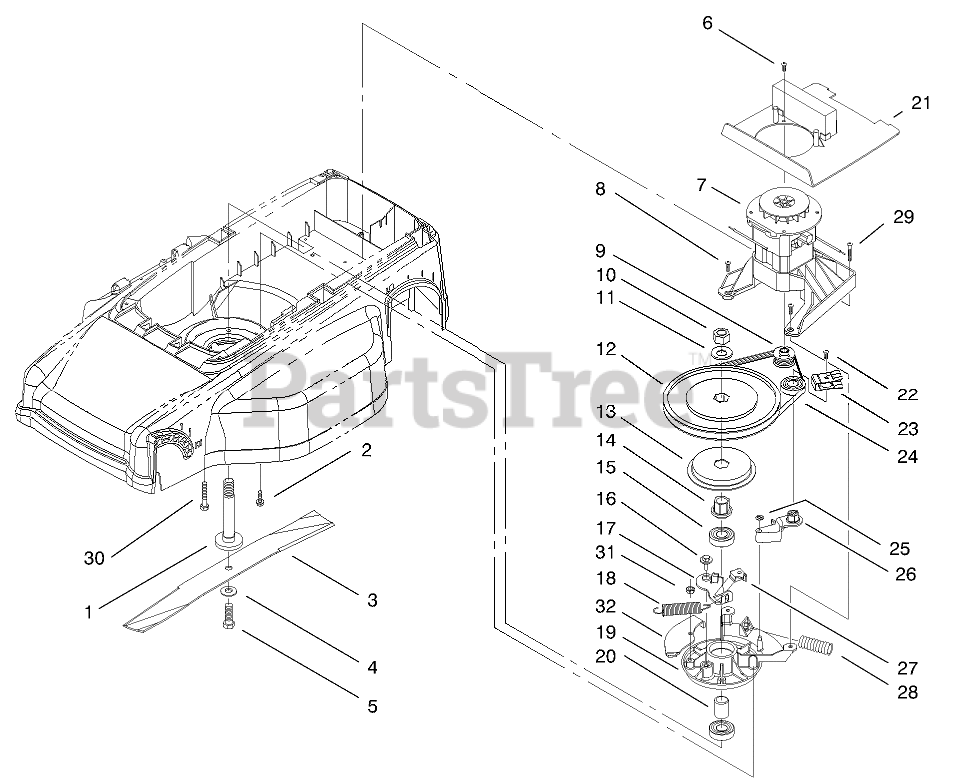

MOTOR & BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 93-3329

SHAFT - SPINDLE

$62.99

$

Usually ships in 3-6 days

0

2

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.49

$

In Stock, only 2 left!

0

3

Toro 93-3954

Blade
(Superseded to 93-3954-03)

$

$

Not available

4

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

5

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

6

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

7

Toro 94-6917

MOTOR ASM

$805.99

$

Usually ships in 3-6 days

0

8

Toro 32144-8

SCREW-PPHTF

$6.99

$

Usually ships in 3-6 days

0

9

Toro 93-3331

PULLEY - MOTOR

$

$

Not available

10

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

11

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

12

Toro 93-3321

PULLEY - DRIVEN

$

$

Not available

13

Toro 93-3328

DRUM - BRAKE

$

$

Not available

14

Toro 93-3330

HUB - PULLEY

$

$

Not available

15

Toro 61-8780

Bearing-Ball
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 18

0

16

Toro 92-9698

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

17

Toro 93-3991

LEVER ASM-BRAKE

$

$

Not available

18

Toro 93-3995

SPRING - BRAKE SWITCH

$

$

Not available

19

Toro 93-3325

SPINDLE

$

$

Not available

20

Toro 93-3980

SPACER - BEARING

$

$

Not available

21

Toro 94-3873

BAFFLE ASM

$

$

Not available

22

Toro 94-6961

SCREW

$1.49

$

In Stock, only 3 left!

0

23

Toro 94-3866

GUIDE - BELT

$

$

Not available

24

Toro 93-3989

BELT - POLY V

$

$

Not available

25

Toro 93-3988

PUSHNUT-TINNERMAN
(Superseded to 32151-106)

$0.99

$

In Stock, only 2 left!

0

26

Toro 93-3323

IDLER ARM

$9.49

$

In Stock, only 1 left!

0

27

Toro 93-3322

MOUNT - CABLE

$

$

Not available

28

Toro 61-8880

SPRING

$12.99

$

Usually ships in 3-6 days

0

29

Toro 93-3985

SCREW - PPH

$

$

Not available

30

Toro 32144-110

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

31

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 94-9155

BRACKET - SPRING

$

$

Not available
