20050 (E 120) - Toro Carefree Recycler Electric Walk-Behind Mower (SN: 099000001 - 099999999) (1999) COVER, MULCH PLUG & PANEL ASSEMBLY Parts Diagram

Carefree Recycler Electric Walk-Behind Mower

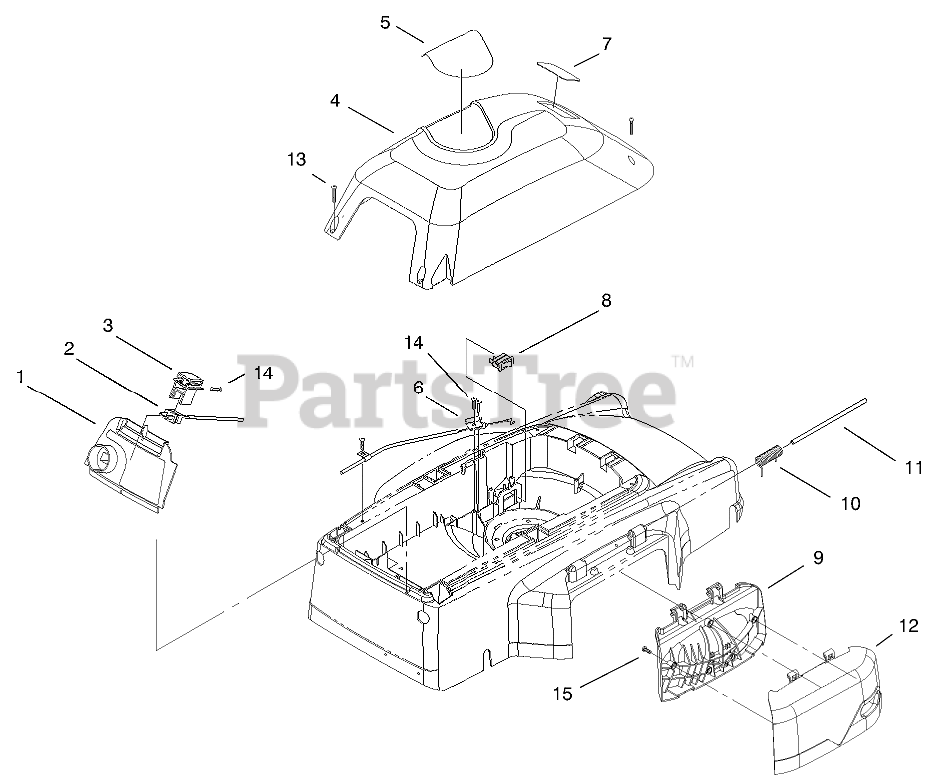

COVER, MULCH PLUG & PANEL ASSEMBLY Parts Diagram

  • Title
1

Toro 94-3880

PANEL ASM

$

$

Not available

2

$

$

Not available

3

Toro 93-3344

HOUSING - PLUG

$

$

Not available

4

Toro 94-3898

COVER ASM

$200.99

$

Usually ships in 3-6 days

0

5

Toro 98-1490

DECAL

$

$

Not available

6

Toro 93-3975

BRACKET - CABLE

$

$

Not available

7

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

8

Toro 94-3886

SWITCH

$

$

Not available

9

Toro 93-3956

OBS MULCH PLUG - INSIDE

$

$

Not available

10

Toro 94-3865

SPRING - TORSION

$

$

Not available

11

Toro 93-3990

PIN - HINGE, MULCH PLUG

$

$

Not available

12

Toro 93-3957

MULCH PLUG - OUTSIDE
(Superseded to 94-1164)

$

$

Not available

13

Toro 93-3986

SCREW-PPH

$4.49

$

Usually ships in 3-6 days

0

14

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

15

Toro 94-6961

SCREW

$1.49

$

In Stock, only 3 left!

0
