20048 (SR-21 SE) - Toro 21" Super Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) HOUSING AND WHEEL ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

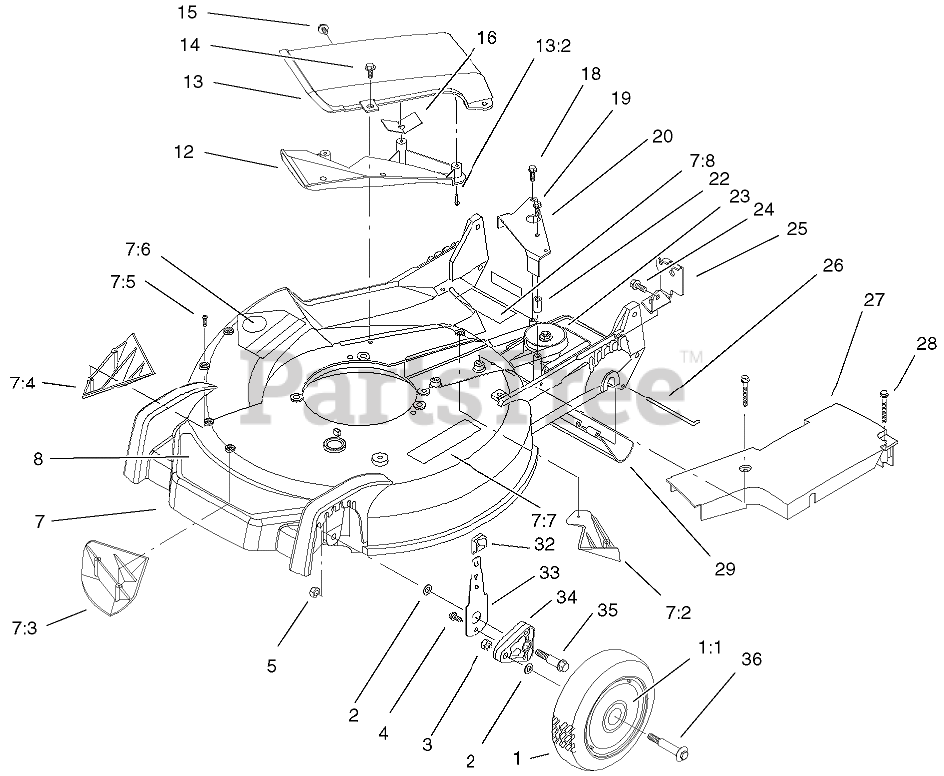

HOUSING AND WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 98-7130

WHEEL ASM

$25.99

$

In Stock, only 2 left!

0

1:1

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 9

0

2

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

3

$2.99

$

Usually ships in 3-6 days

0

4

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

5

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

7

Toro 98-7148

HOUSING
(Superseded to 105-1307)

$396.99

$

Usually ships in 3-6 days

0

7:2

Toro 92-1750

KICKER-REAR

$21.99

$

In Stock, only 3 left!

0

7:3

Toro 92-1720

KICKER-FRONT

$23.99

$

In Stock, only 2 left!

0

7:4

Toro 92-1730

KICKER-RH

$23.99

$

In Stock, only 2 left!

0

7:5

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

7:6

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

7:7

Toro 93-0248

DECAL-WARNING
(Superseded to 104-8589)

$7.49

$

Usually ships in 3-6 days

0

7:8

Toro 99-6018

DECAL-WARNING

$2.99

$

Usually ships in 3-6 days

0

8

Toro 99-6010

DECAL - DECK

$

$

Not available

12

Toro 82-8620

Deflector
(Superseded to 17-5179)

$

$

Not available

13

Toro 100-8775

RECYCLER COVER ASM

$

$

Not available

13:2

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

14

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

15

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

16

Toro 83-4750

Cover Guard

$

$

Not available

18

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

19

Toro 92-1616

SCREW-HWHTF

$3.49

$

In Stock, only 1 left!

0

20

Toro 99-1513-03

BRACKET-TRANSMISSION ACTUATOR

$11.99

$

Usually ships in 3-6 days

0

22

Toro 614673

BUSHING-PLATE, ACTUATOR

$12.99

$

In Stock, only 2 left!

0

23

Toro 104-7674

GEAR CASE ASM

$320.99

$

Usually ships in 3-6 days

0

24

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

25

Toro 99-1512-03

BRACKET-CABLE, TRACTION

$

$

Not available

26

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

27

Toro 104-7906

COVER-BELT

$

$

Not available

28

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

29

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

32

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

33

Toro 66-0541

FRONT SPRING ARM ASM

$18.99

$

In Stock, Qty 6

0

34

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

35

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 16

0

36

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 9

0
