20048 (SR-21 SE) - Toro 21" Super Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) GASKET KITS BRIGGS AND STRATTON MODEL 12J805-2370-B1 Parts Diagram

21" Super Recycler Walk-Behind Mower

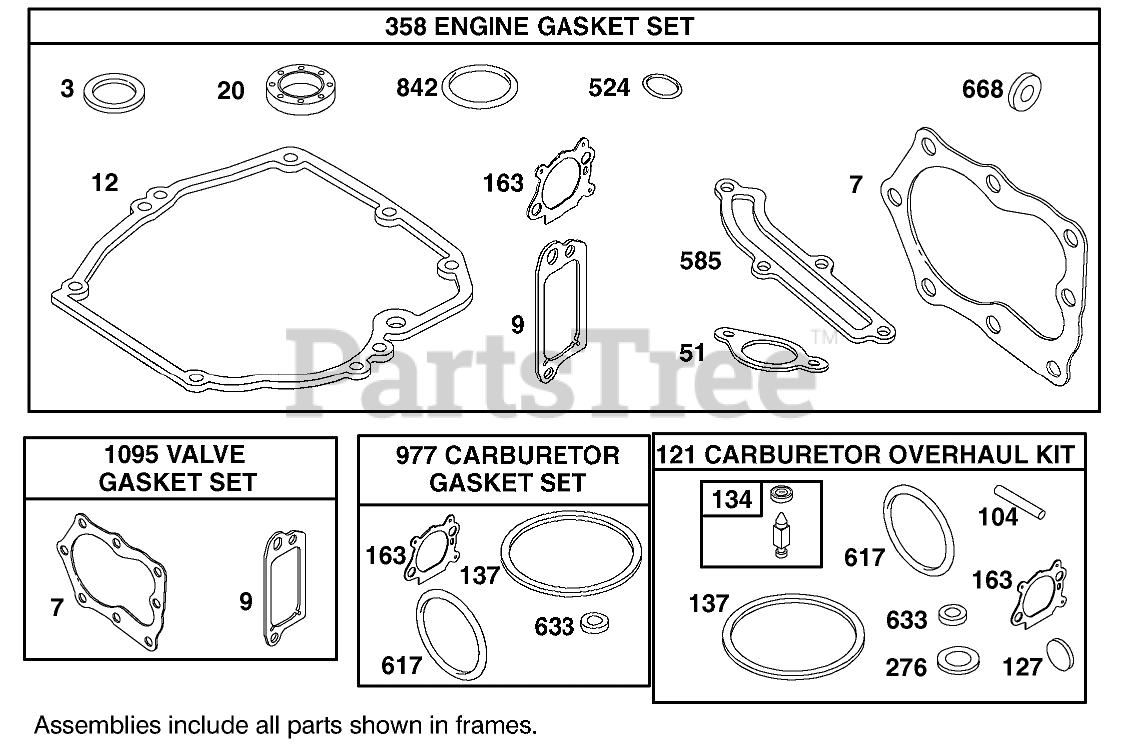

GASKET KITS BRIGGS AND STRATTON MODEL 12J805-2370-B1 Parts Diagram

  • Title

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, Qty 17

0

7

Briggs & Stratton 692249

Gasket-Head, Cylinder

Note: Included in Engine Gasket Set-Ref. 358.

$8.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 692249

Gasket-Head, Cylinder

Note: Included in Valve Gasket Set-Ref. 1095.

$8.49

$

In Stock, Qty 20+

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Valve Gasket Set-Ref. 1095.

$5.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 692232

Gasket-Crankcase

Note: Included in Engine Gasket Set-Ref. 358.

$5.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Included in Engine Gasket Set-Ref. 358.

$7.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 272199

Gasket-Intake
(Superseded to 272199S)

Note: Included in Engine Gasket Set-Ref. 358.

$4.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 691242

Pin-Hinge, Float
(Superseded to 797622)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.99

$

In Stock, Qty 10

0

121

Briggs & Stratton 498260

Carburetor Overhaul Kit

$16.99

$

In Stock, Qty 20+

0

127

Briggs & Stratton 694468

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.49

$

In Stock, only 3 left!

0

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Ref. 977

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Gasket Set-Ref. 977

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Engine Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$6.99

$

In Stock, Qty 5

0

358

Briggs & Stratton 497316

Engine Gasket Set
(Superseded to 590508)

$37.99

$

In Stock, only 2 left!

0

524

Briggs & Stratton 692296

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$4.99

$

In Stock, only 3 left!

0

585

Briggs & Stratton 691879

Gasket-Passage, Breather

Note: Included in Engine Gasket Set-Ref. 358.

$6.99

$

In Stock, only 1 left!

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Gasket Set-Ref. 977

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

Usually ships in 2-12 days

0

633

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-Ref. 977

$4.99

$

Usually ships in 2-12 days

0

668

Briggs & Stratton 493823

Spacer (Includes 2)

Note: Included in Engine Gasket Set-Ref. 358.

$6.49

$

In Stock, only 1 left!

0

842

Briggs & Stratton 691031

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, Qty 20+

0

977

Briggs & Stratton 498261

Carburetor Gasket Set
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

1095

Briggs & Stratton 498528

Valve Gasket Set

$26.99

$

Usually ships in 2-12 days

0
