20047 - Toro 22" Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) HANDLE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

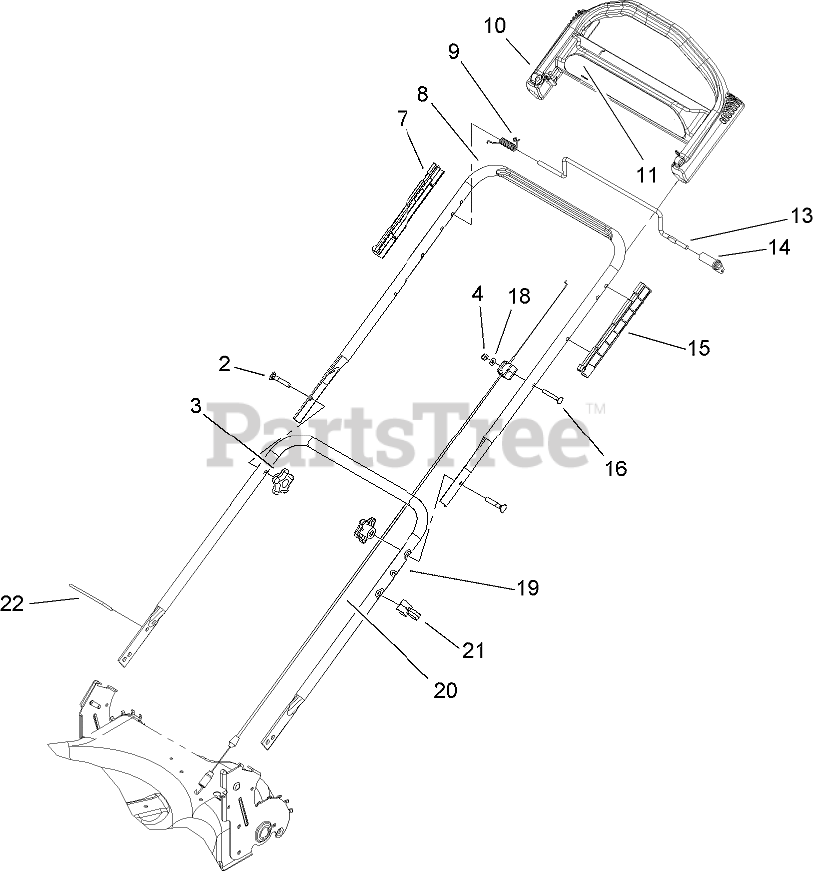

HANDLE ASSEMBLY Parts Diagram

  • Title

2

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 11

0

3

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 10

0

4

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

7

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, only 3 left!

0

8

Toro 104-8680-05

Handle-Upper

$64.99

$

In Stock, only 1 left!

0

9

Toro 104-8690

Spring-Torsion
(Superseded to 136-7166)

$2.99

$

In Stock, Qty 10

0

10

Toro 104-8678

HANDLE-CONTROL

$81.99

$

In Stock, only 1 left!

0

11

Toro 105-3033

Decal-Handle, Control

$20.99

$

Usually ships in 3-6 days

0

13

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$16.99

$

In Stock, only 1 left!

0

14

Toro 99-1589

LEVER-TRACTION

$7.49

$

In Stock, Qty 15

0

15

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 3 left!

0

16

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 9

0

18

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 107-0784-05

HANDLE-LOWER
(Superseded to 112-6440-05)

$57.99

$

In Stock, only 1 left!

0

20

Toro 105-1844

Cable-Traction

$22.99

$

In Stock, only 4 left!

0

21

Toro 106-6805

Guide-Cable
(Superseded to 114-7988)

$2.99

$

In Stock, Qty 12

0

22

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0
