20047 - Toro 22" Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) HANDLE AND SWITCH ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

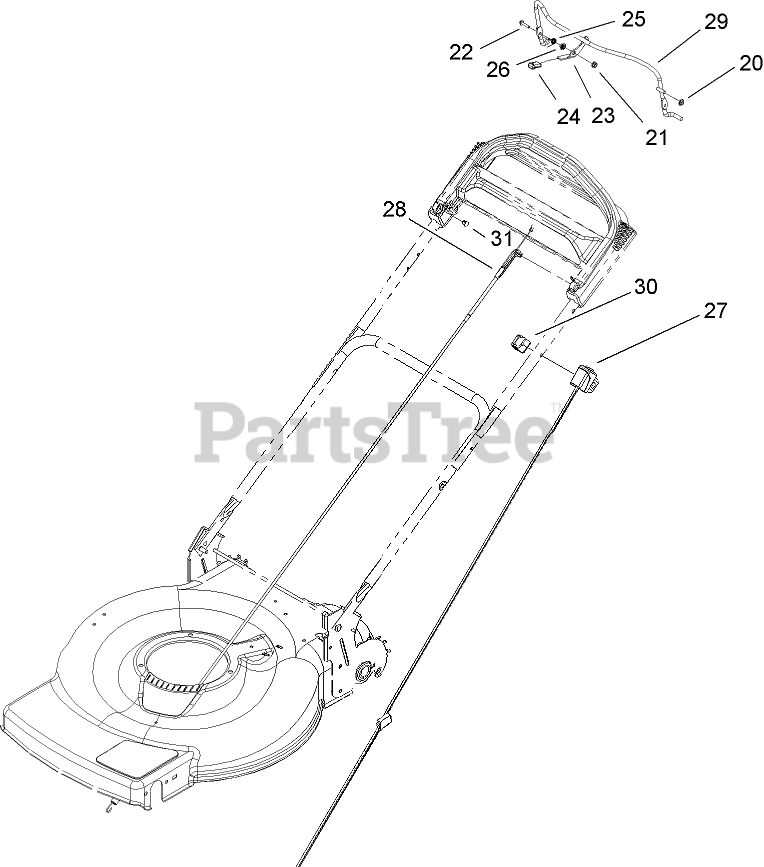

HANDLE AND SWITCH ASSEMBLY Parts Diagram

  • Title
20

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

21

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

22

Toro 106-9169

SCREW-HWH

$7.99

$

In Stock, only 3 left!

0

23

Toro 106-6802

LEVER
(Superseded to 138-3220)

$2.99

$

In Stock, Qty 9

0

24

$2.99

$

Usually ships in 3-6 days

0

25

Toro 107-7462

SPRING-TORSION

$8.49

$

In Stock, only 1 left!

0

26

Toro 107-7463

SPACER

$5.49

$

In Stock, Qty 15

0

27

Toro 108-8161

SWITCH HOUSING ASM
(Superseded to 117-5975)

$19.99

$

In Stock, Qty 20+

0

28

Toro 107-0799

CABLE ASM

$87.99

$

In Stock, only 1 left!

0

29

Toro 108-3788

BAIL-BRAKE
(Superseded to 108-3788-03)

$43.99

$

In Stock, only 1 left!

0

30

Toro 99-5239

ANCHOR-CABLE
(Superseded to 136-5864)

$2.99

$

In Stock, Qty 7

0

31

Toro 104-9368

Plug-Dome

$0.99

$

In Stock, only 4 left!

0
