20046 (SR-21 OSK) - Toro 21" Super Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) RECOIL STARTER ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

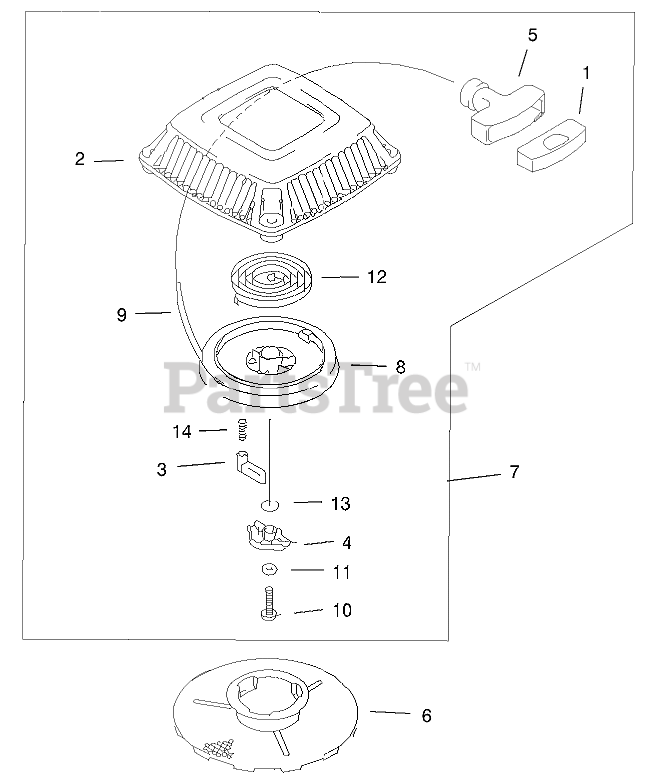

RECOIL STARTER ASSEMBLY Parts Diagram

  • Title

1

Toro 94-9044

CAP-GRIP

$14.99

$

Usually ships in 3-6 days

0

2

Toro 100-2766

HOLDER

$

$

Not available

3

Toro 100-2767

PAWL-STARTER, RECOIL

$8.99

$

In Stock, only 1 left!

0

4

Toro 100-2768

RETAINER-SPRING

$15.99

$

Usually ships in 3-6 days

0

5

Toro 100-2769

GRIP-STARTER, RECOIL

$

$

Not available

6

Toro 100-2770

PULLEY-STARTING

$

$

Not available

7

Toro 100-2771

STARTER-RECOIL

$

$

Not available

8

Toro 100-2772

REEL-STARTER, RECOIL

$56.99

$

In Stock, only 1 left!

0

9

Toro 100-2836

ROPE RECOIL

$

$

Not available

10

Toro 100-2774

SCREW

$

$

Not available

11

Toro 100-2775

WASHER

$

$

Not available

12

Toro 100-2776

SPRING-RECOIL

$

$

Not available

13

Toro 100-2777

SPRING

$

$

Not available

14

Toro 93-8555

SPRING-RETURN

$1.49

$

Usually ships in 3-6 days

0
