20046 (SR-21 OSK) - Toro 21" Super Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) PISTON & CRANKCASE ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

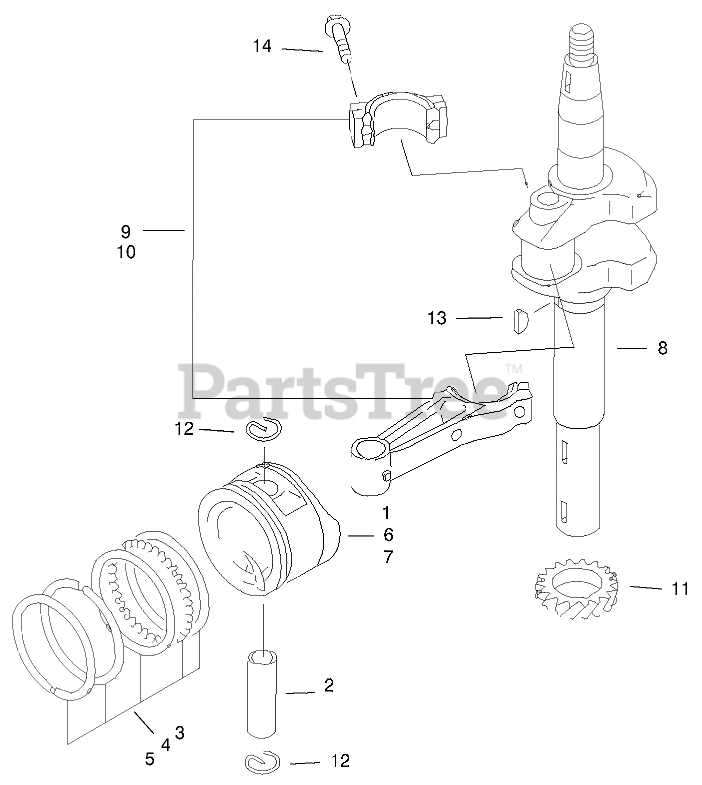

PISTON & CRANKCASE ASSEMBLY Parts Diagram

  • Title

1

Toro 100-2672

PISTON-ENGINE

$

$

Not available

2

Toro 100-2673

PIN-PISTON

$

$

Not available

3

Toro 100-2674

SET-RING, PISTON

$

$

Not available

4

Toro 100-2675

SET-RING, PISTON-L0.25

$

$

Not available

5

Toro 100-2676

SET-RING, PISTON-L0.50

$

$

Not available

6

Toro 100-2677

PISTON-ENGINE, L0.25

$

$

Not available

7

Toro 100-2678

PISTON-ENGINE, L0.50

$

$

Not available

8

Toro 100-2827

CRANKSHAFT

$

$

Not available

9

Toro 100-2680

CONNECTING ROD ASM

$

$

Not available

10

Toro 100-2681

CONNECTING ROD ASM (U/S=0.50)

$

$

Not available

11

Toro 100-2682

GEAR-HELICAL

$

$

Not available

12

Toro 100-2683

RING-SNAP

$

$

Not available

13

Toro 93-8526

KEY

$

$

Not available

14

Toro 93-8527

BOLT-ROD
(Superseded to 115-1805)

$10.99

$

Usually ships in 3-6 days
