20046 (SR-21 OSK) - Toro 21" Super Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) CARBURETOR ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

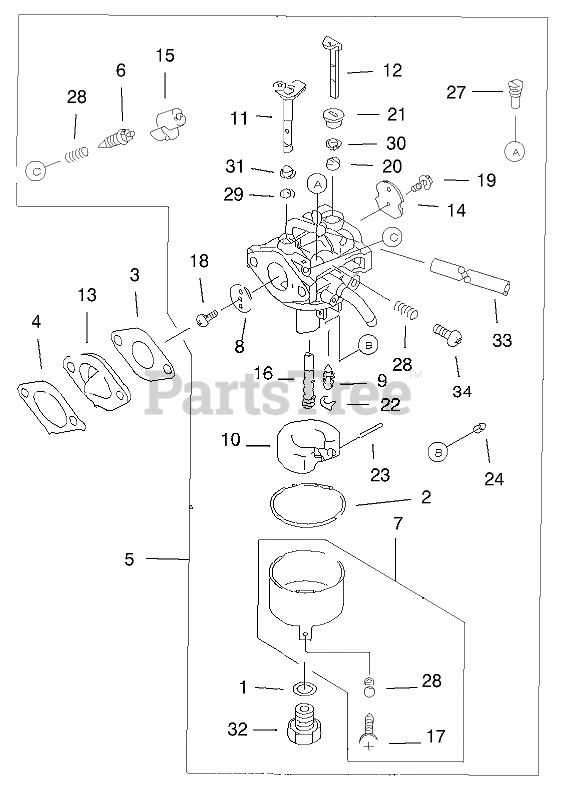

CARBURETOR ASSEMBLY Parts Diagram

  • Title
1

Toro 100-2611

GASKET

$

$

Not available

2

Toro 100-2612

GASKET

$

$

Not available

3

Toro 100-2613

GASKET-CARBURETOR

$6.49

$

In Stock, only 1 left!

0

4

Toro 100-2614

GASKET-INSULATOR

$5.99

$

In Stock, only 1 left!

0

5

Toro 100-2615

CARBURETOR ASM

$

$

Not available

6

Toro 100-2616

SCREW-PILOT, AIR

$

$

Not available

7

Toro 100-2617

FLOAT-CHAMBER

$

$

Not available

8

Toro 100-2618

VALVE-THROTTLE

$

$

Not available

9

Toro 100-2619

VALVE-FLOAT

$

$

Not available

10

$

$

Not available

11

Toro 100-2621

SHAFT-THROTTLE, CARBURETOR

$

$

Not available

12

Toro 100-2622

SHAFT-CHOKE, CARBURETOR

$

$

Not available

13

Toro 100-2623

INSULATOR

$

$

Not available

14

$

$

Not available

15

Toro 100-2625

LIMITER

$

$

Not available

16

Toro 100-2626

NOZZLE-MAIN

$94.99

$

In Stock, only 1 left!

0

17

$

$

Not available

18

$

$

Not available

19

$

$

Not available

20

Toro 100-2630

COLLAR

$

$

Not available

21

Toro 100-2631

COLLAR

$

$

Not available

22

$

$

Not available

23

$

$

Not available

24

Toro 100-2634

JET-MAIN

$

$

Not available

27

Toro 100-2635

JET-PILOT

$

$

Not available

28

Toro 100-2636

SPRING

$

$

Not available

29

$

$

Not available

30

$

$

Not available

31

Toro 100-2639

COLLAR

$

$

Not available

32

$

$

Not available

33

$

$

Not available

34

Toro 100-2642

SCREW-PAN

$

$

Not available
