20045 (SR-21 SE) - Toro 21" Super Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) BATTERY AND SWITCH ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

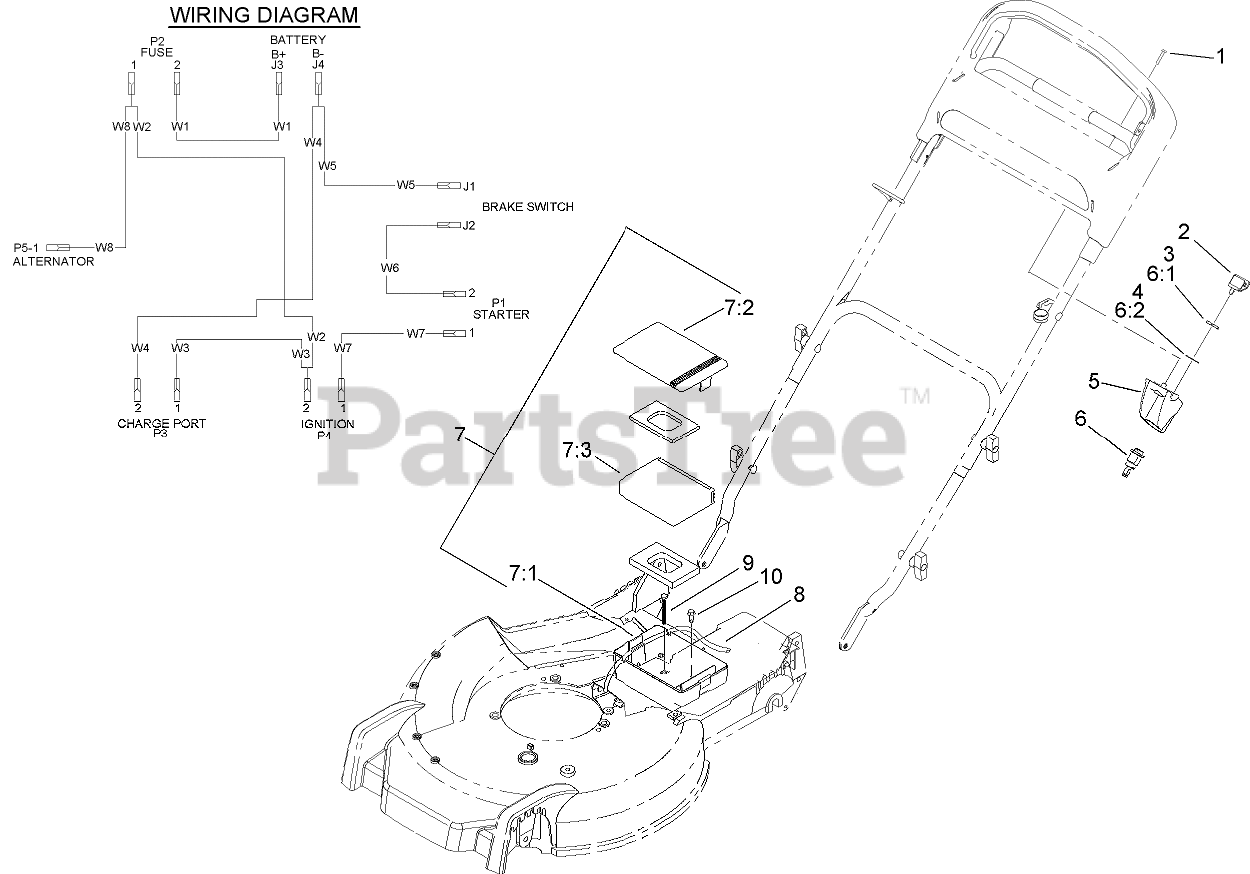

BATTERY AND SWITCH ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 7

0

2

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

3

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

4

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

5

Toro 99-6006

SWITCH-HOLDER

$71.99

$

Usually ships in 3-6 days

0

6

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, Qty 7

0

6:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

6:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

7

Toro 104-7682

BATTERY ASM-PANASONIC
(Superseded to 115-1304)

$96.99

$

In Stock, only 3 left!

0

7:1

Toro 104-7900

BOX-BATTERY
(Superseded to 105-6843)

$36.99

$

Usually ships in 3-6 days

0

7:2

Toro 104-7901

COVER-BATTERY
(Superseded to 105-6844)

$40.99

$

Usually ships in 3-6 days

0

7:3

Toro 104-7903

BATTERY-12V
(Superseded to 115-1304)

$96.99

$

In Stock, only 3 left!

0

8

Toro 100-1037

HARNESS-WIRE

$

$

Not available

9

Toro 37-7262

SCREW-SPECIAL

$3.49

$

Usually ships in 3-6 days

0

10

Toro 32144-32

SCREW

$2.99

$

Usually ships in 3-6 days

0

Toro 104-7401

CHARGER-12 VOLT
(Superseded to 136-9126)

Note: Not illustrated

$41.99

$

In Stock, Qty 18

0

Toro 104-7953

DECAL-WARNING

Note: Not illustrated

$9.99

$

Usually ships in 3-6 days

0

Toro 99-6124

FUSE-40 AMP

Note: Not illustrated

$5.49

$

In Stock, Qty 8

0
