20045 (SR-21 SE) - Toro 21" Super Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) STARTER MOTOR ASSEMBLY BRIGGS AND STRATTON 12H807-1775-E1 Parts Diagram

21" Super Recycler Walk-Behind Mower

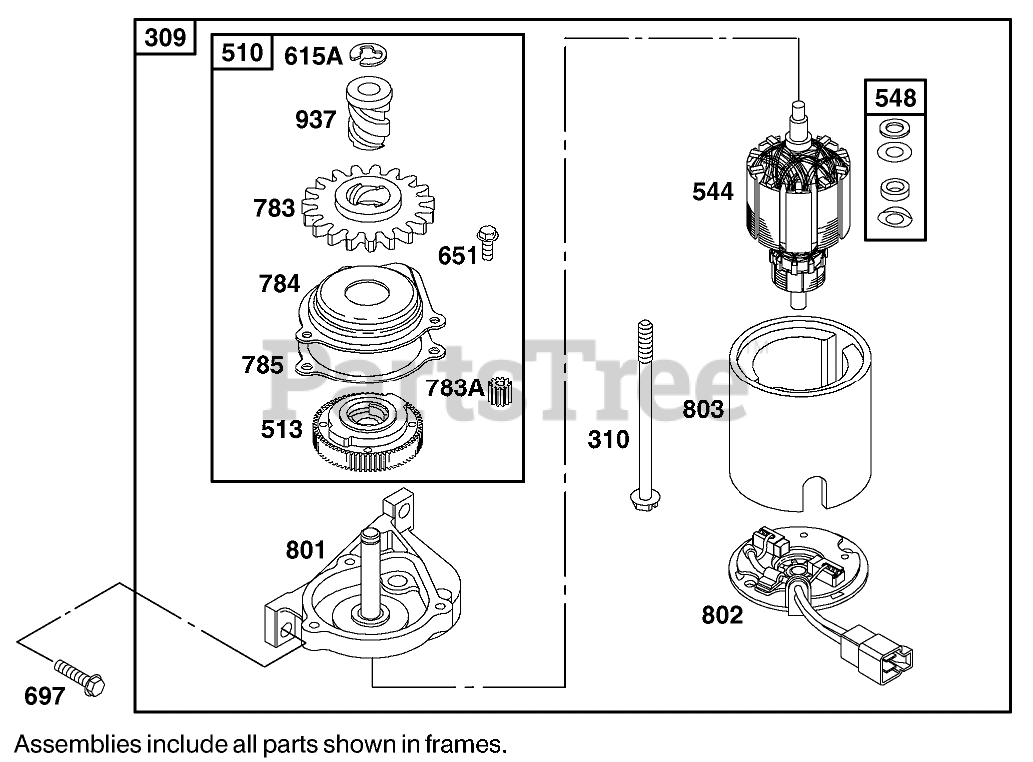

STARTER MOTOR ASSEMBLY BRIGGS AND STRATTON 12H807-1775-E1 Parts Diagram

  • Title

309

Briggs & Stratton 494233

Motor-Starter
(Superseded to 799045)

$198.99

$

Usually ships in 2-12 days

0

310

Briggs & Stratton 94051

Bolt-Thru
(Superseded to 692327)

$3.99

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 494147

Drive-Starter

$33.99

$

Usually ships in 2-12 days

0

513

Briggs & Stratton 394815

Clutch-Drive
(Superseded to 795100)

$79.99

$

Usually ships in 2-12 days

0

544

Briggs & Stratton 492921

Armature Assy.
(Superseded to 690786)

$32.99

$

Usually ships in 2-12 days

0

548

Briggs & Stratton 492919

Washer Set

$2.49

$

Usually ships in 2-12 days

0

615A

Briggs & Stratton 93941

Retainer-E Ring

$6.99

$

In Stock, only 1 left!

0

651

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

697

Briggs & Stratton 94974

Screw-Hex,
(Superseded to 691127)

$4.49

$

In Stock, Qty 13

0

783

Briggs & Stratton 281127

Gear-Pinion
(Superseded to 795099)

$21.99

$

Usually ships in 2-12 days

0

783A

Briggs & Stratton 261606

Gear Pinion
(Superseded to 795096)

$13.99

$

Usually ships in 2-12 days

0

784

Briggs & Stratton 692341

Cover-Gear, Starter

$8.99

$

Usually ships in 2-12 days

0

785

Briggs & Stratton 272201

Gasket-Cover
(Superseded to 795097)

$5.99

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 492335

Cap-Drive
(Superseded to 690782)

$85.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 492922

Cap-End
(Superseded to 695975)

$53.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 492920

Housing-Starter
(Superseded to 695975)

$53.99

$

Usually ships in 2-12 days

0

937

Briggs & Stratton 281125

Drive-Starter
(Superseded to 795098)

$11.99

$

Usually ships in 2-12 days

0
