20043 (SR-21 SB) - Toro 21" Super Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) ENGINE AND BLADE ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

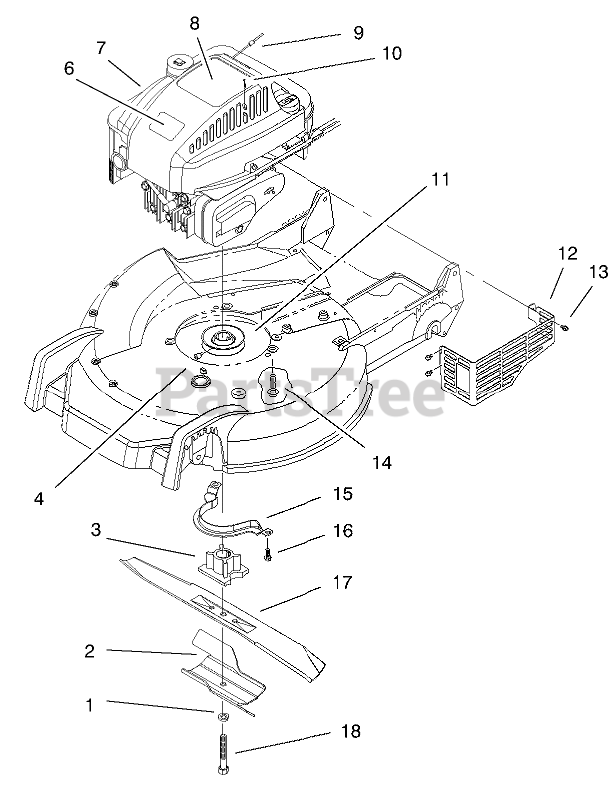

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

2

Toro 94-1608-03

ACCELERATOR-BLADE
(Superseded to 105-6848-03)

$18.99

$

In Stock, only 4 left!

0

3

Toro 104-1007

RETAINER-BLADE

$72.99

$

In Stock, only 1 left!

0

4

Toro 104-0214

SCREW-SET
(Superseded to 105-8875)

$11.99

$

Usually ships in 3-6 days

0

6

Toro 98-3206

Decal

$2.49

$

Usually ships in 3-6 days

0

7

Toro 93-0243

SHROUD-ENGINE

$59.99

$

Usually ships in 3-6 days

0

8

Toro 99-6013

DECAL - RECOIL

$35.99

$

In Stock, only 1 left!

0

9

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

10

Toro 32144-121

SCREW-PPH
(Superseded to 32144-88)

$1.99

$

In Stock, only 2 left!

0

11

Toro 95-1878

PULLEY

$63.99

$

In Stock, only 2 left!

0

12

Toro 104-7577-03

SHIELD-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

13

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

14

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

15

Toro 66-0570-03

BRACKET-GUIDE, BELT

$13.99

$

In Stock, only 2 left!

0

16

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

17

Toro 93-4106-03

BLADE
(Superseded to 133-8183-03)

$22.99

$

In Stock, Qty 20+

0

18

Toro 95-1748

SCREW-BLADE
(Superseded to 105-8629)

$20.99

$

In Stock, Qty 5

0
