20042 (SR-21 S) - Toro 21" Super Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) GEAR CASE ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

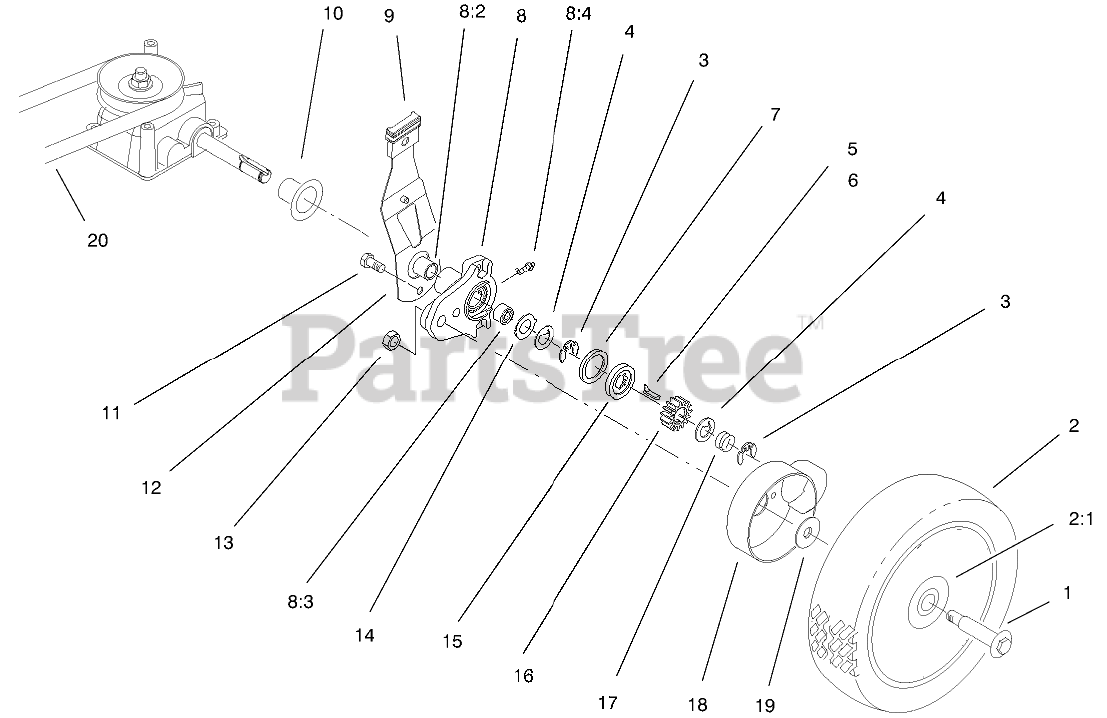

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 9

0

2

Toro 98-7135

WHEEL ASM

$45.99

$

In Stock, only 4 left!

0

2:3:1

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 9

0

2:3

Wheel ASM

$

$

Not available

3

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, Qty 20+

0

4

Toro 65-4740

WASHER-THRUST, KEYED

$2.49

$

In Stock, Qty 12

0

5

Toro 66-6040

KEY-ROCKING, RH
(Superseded to 139-6643)

$7.49

$

In Stock, only 2 left!

0

6

Toro 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 9

0

7

Toro 65-4710

RING-FRICTION

$3.49

$

In Stock, Qty 10

0

8

Toro 100-8774

PIVOT ARM ASM

$38.99

$

In Stock, only 1 left!

0

8:2

Toro 47-2900

BUSHING

$6.49

$

In Stock, Qty 5

0

8:3

Toro 70-9760

BUSHING

$4.99

$

In Stock, Qty 6

0

8:4

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 1 left!

0

9

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

10

Toro 42-3520

CAP-END
(Superseded to 138-3235)

$3.99

$

In Stock, only 2 left!

0

11

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

12

Toro 63-8721

SPRING ARM ASM

$21.99

$

In Stock, only 2 left!

0

13

Toro 603773

NUT

$2.99

$

Usually ships in 3-6 days

0

14

Toro 65-4730

WASHER-ARM, PIVOT

$2.49

$

In Stock, Qty 6

0

15

Toro 65-4760

WASHER-CLUTCH

$1.49

$

In Stock, Qty 6

0

16

Toro 65-4750

GEAR-PINION

$11.99

$

In Stock, Qty 18

0

17

Toro 65-4720

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

18

Toro 74-1660

COVER-WHEEL

$8.49

$

In Stock, only 3 left!

0

19

Toro 74-1671

SPACER-COVER, WHEEL

$1.99

$

In Stock, Qty 13

0

20

Toro 91-2258

BELT-V

$18.99

$

In Stock, Qty 11

0
