20042 (SR-21 S) - Toro 21" Super Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) HOUSING, HANDLE BRACKETS, & WHEEL ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

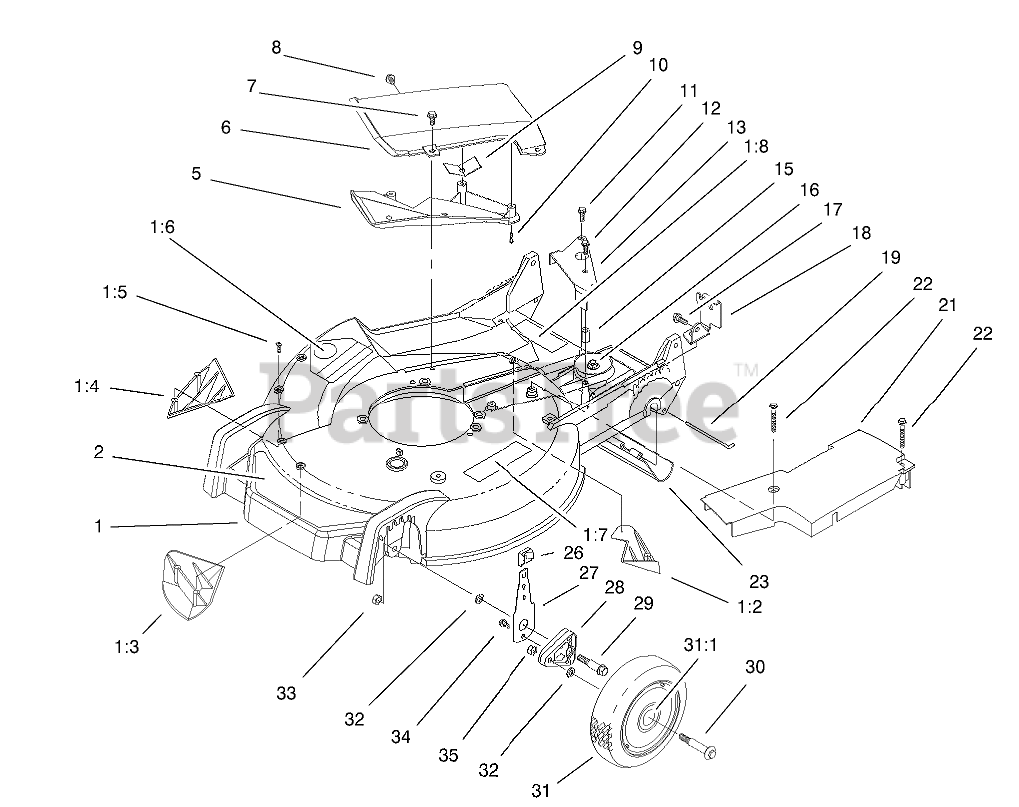

HOUSING, HANDLE BRACKETS, & WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 98-7148

HOUSING
(Superseded to 105-1307)

$396.99

$

Usually ships in 3-6 days

0

1:2

Toro 92-1750

KICKER-REAR

$21.99

$

In Stock, only 3 left!

0

1:3

Toro 92-1720

KICKER-FRONT

$23.99

$

In Stock, only 2 left!

0

1:4

Toro 92-1730

KICKER-RH

$23.99

$

In Stock, only 2 left!

0

1:5

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

1:6

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

1:7

Toro 93-0248

DECAL-WARNING
(Superseded to 104-8589)

$7.49

$

Usually ships in 3-6 days

0

1:8

Toro 99-6018

DECAL-WARNING

$2.99

$

Usually ships in 3-6 days

0

2

Toro 99-6010

DECAL - DECK

$

$

Not available

5

Toro 82-8620

Deflector (Only On: 20042)
(Superseded to 17-5179)

$

$

Not available

6

Toro 82-8612

Cover (Only On: 20042)
(Superseded to 100-1183)

$

$

Not available

7

Toro 46-6811

Screw & Washer ASM (Only On: 20042)

$3.49

$

In Stock, only 3 left!

0

8

Toro 46-6810

Screw & Washer ASM (Only On: 20042)

$5.49

$

In Stock, Qty 11

0

9

Toro 83-4750

Cover Guard (Only On: 20042)

$

$

Not available

10

Toro 32144-111

Screw-PPH (Only On: 20042)

$1.49

$

In Stock, Qty 20+

0

11

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

12

Toro 92-1616

SCREW-HWHTF

$3.49

$

In Stock, only 1 left!

0

13

Toro 99-1513-03

BRACKET-TRANSMISSION ACTUATOR

$11.99

$

Usually ships in 3-6 days

0

15

Toro 614673

BUSHING-PLATE, ACTUATOR

$12.99

$

In Stock, only 2 left!

0

16

Toro 99-1525

ASM-Gearcase
(Superseded to 104-7618)

$320.99

$

Usually ships in 3-6 days

0

17

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

18

Toro 99-1512-03

BRACKET-CABLE, TRACTION

$

$

Not available

19

Toro 33-3208

ROD-SHIELD

$16.99

$

In Stock, Qty 12

0

21

Toro 98-1502

COVER-BELT

$

$

Not available

22

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, Qty 12

0

23

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

26

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

27

Toro 66-0541

FRONT SPRING ARM ASM

$18.99

$

In Stock, Qty 6

0

28

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, Qty 6

0

29

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 15

0

30

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 20+

0

30

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

31

Toro 98-7130

WHEEL ASM

$25.99

$

In Stock, Qty 14

0

31

Toro 14-9989

WHEEL AND TIRE ASM

$47.99

$

In Stock, only 2 left!

0

31:1

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

32

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

33

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

34

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

35

$2.99

$

In Stock, Qty 20+

0

35

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0
