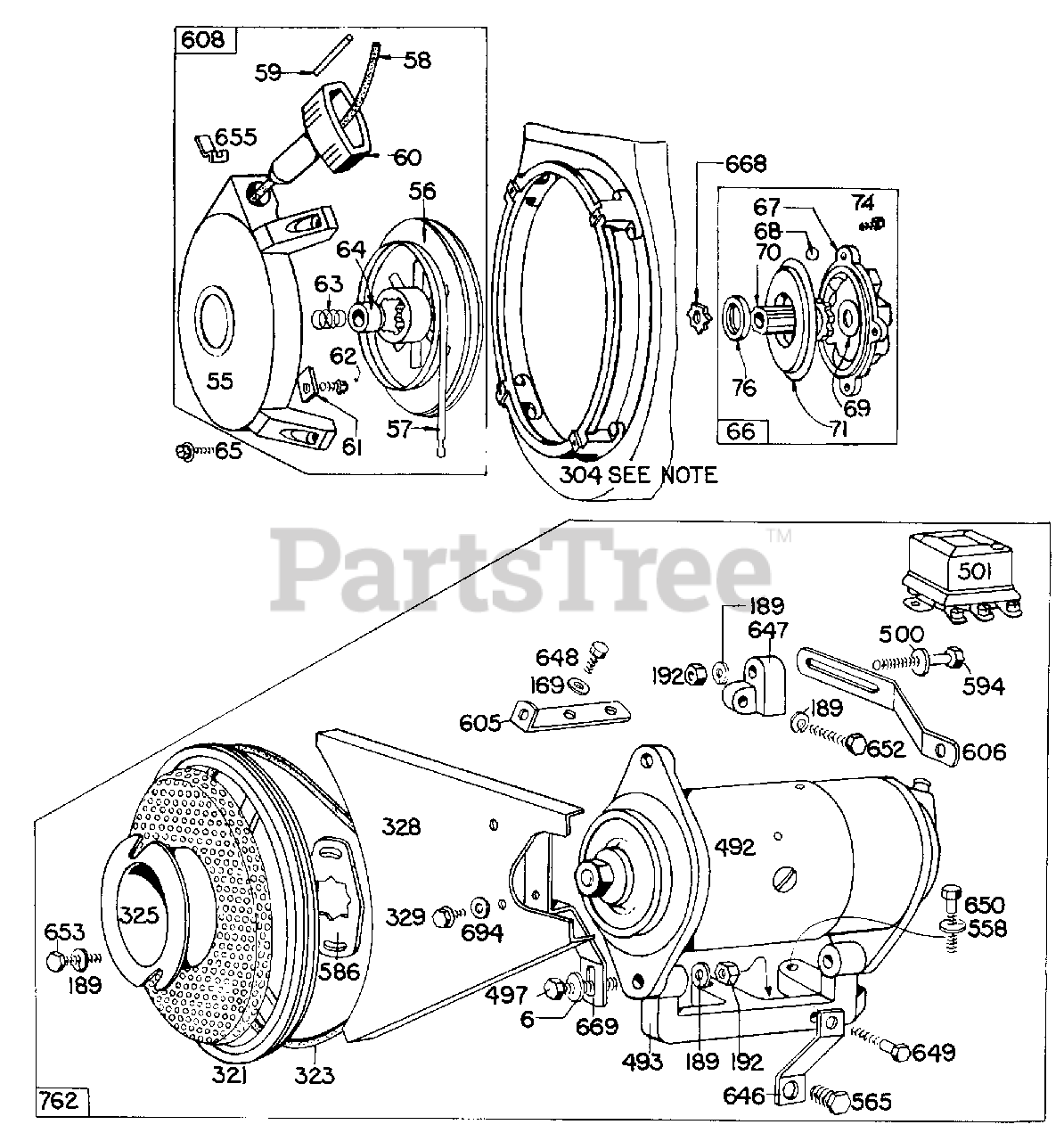

200414-0127-XX - Briggs & Stratton Horizontal Engine Electric Starter,Rewind Parts Diagram

Horizontal Engine

Electric Starter,Rewind Parts Diagram

  • Title

6

Briggs & Stratton 22963

Washer, Flat
(Superseded to 691261)

$3.99

$

In Stock, only 3 left!

0

55

Briggs & Stratton 297663

Housing-Rewind Starter

$

$

Not available

56

Briggs & Stratton 295871

Pulley-Starter (Includes 63" Rope)

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 294303

Spring-Rewind Starter
(Superseded to 490179)

$

$

Not available

58

Briggs & Stratton 66564

Rope-Starter (63" Long)

$8.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 66884

Rope, Starter (63" Cut To Required Length)
(Superseded to 692188)

$8.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 230228

Pin-Starter Rope
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 66728

Grip-Starter Rope.
(Superseded to 490652)

$5.49

$

In Stock, Qty 12

0

61

Briggs & Stratton 68848

Bumper-Starter Pulley
(Superseded to 68848S)

$1.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 93254

Screw-Pulley Bumper Mounting Sem

$3.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 260414

Spring-Ratchet
(Superseded to 690547)

$8.49

$

In Stock, Qty 5

0

64

Briggs & Stratton 230543

Adapter-Spring
(Superseded to 691920)

$11.99

$

In Stock, Qty 5

0

65

Briggs & Stratton 93107

Screw-Slotted

$4.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 298798

Clutch Assy.-Rewind Starter
(Superseded to 399671)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 211383

Housing-Starter Clutch
(Superseded to 394897)

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball-Clutch
(Superseded to 691604)

$

$

Not available

69

Briggs & Stratton 66718

Washer, Thrust (1-1/16" O.d. X 17/32" I.d.)
(Superseded to 690271)

$8.49

$

In Stock, only 1 left!

0

70

Briggs & Stratton 298799

Ratchet Assy
(Superseded to 691945)

Note: (For engine W/Ring Gear on FW equipped for Elec Start)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer, Steel (Non-Coated)
(Superseded to 691359)

Note: Uses: 93042 Screw-Retainer Washer (2)

$9.99

$

In Stock, Qty 13

0

74

Briggs & Stratton 93042

Screw, Sem Hex Head
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 68238

Seal-Ratchet
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

169

Briggs & Stratton 90832

Washer-Lock
(Superseded to 22097GS)

$3.49

$

Usually ships in 2-12 days

0

189

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 91397

Nut, Hex (5/16-18)
(Superseded to 691105)

$7.99

$

In Stock, only 1 left!

0

304

Briggs & Stratton 294742

Housing-Blower

$

$

Not available

321

Briggs & Stratton 211166

Pulley-V Starter

$43.99

$

Usually ships in 2-12 days

0

323

Briggs & Stratton 68878

Belt-Vee (For High Position Mtg.)

$40.99

$

Usually ships in 2-12 days

0

325

Briggs & Stratton 299308

Pulley-Rope Start (With Screen)

$40.99

$

Usually ships in 2-12 days

0

328

Briggs & Stratton 221531

Guard-Belt

$27.99

$

Usually ships in 2-12 days

0

329

Briggs & Stratton 93294

Screw, Sem (5/8" Long)
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

492

Briggs & Stratton 297779

Starter-Gen

Note: Uses: 296182 Pulley (Delco-Remy No. 1949358) (Delco-Remy #1101864 & Pulley-Delco-Remy #1949358)

$

$

Not available

493

Briggs & Stratton 211622

Bracket-Starter

Note: Used before Serial No. 6810251

$

$

Not available

493

Briggs & Stratton 211786

Bracket-Starter

Note: Used after Serial No. 6810281

$

$

Not available

497

Briggs & Stratton 91203

Screw, Hex Head Cap (5/16-18 X 1-3/4")
(Superseded to 691614)

$6.99

$

Usually ships in 2-12 days

0

500

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

Note: Used with 91325 Washer

$3.49

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 295924

Regulator (Flat Mount, Delco-remy)

$76.99

$

Usually ships in 2-12 days

0

558

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

Note: Used to mount Starter Bracket to Cylinder

$3.49

$

Usually ships in 2-12 days

0

565

Briggs & Stratton 93142

Screw-Hex

$3.49

$

Usually ships in 2-12 days

0

586

Briggs & Stratton 22906

Retainer
(Superseded to 690265)

$4.99

$

Usually ships in 2-12 days

0

594

Briggs & Stratton 92272

Screw-Hex (5/16-18 X 3/4")
(Superseded to 92272GS)

Note: to mount Strap to Generator.

$5.99

$

In Stock, only 2 left!

0

605

Briggs & Stratton 297171

Bracket-Support (Lower)

$5.49

$

Usually ships in 2-12 days

0

606

Briggs & Stratton 221934

Strap-Adjusting

$

$

Not available

608

Briggs & Stratton 297011

Starter Assembly-Rewind

$76.99

$

Usually ships in 2-12 days

0

646

Briggs & Stratton 221472

Bracket-Support

$28.99

$

Usually ships in 2-12 days

0

647

Briggs & Stratton 211154

Anchor-Link

$

$

Not available

648

Briggs & Stratton 91439

Screw-Cap, Hex. Head 1/4-20 X 3/8"

$

$

Not available

649

Briggs & Stratton 93123

Screw-Cap, Hex. Head 5/16-18 X 1-1/4"

$

$

Not available

650

Briggs & Stratton 91162

Screw, Hex Head Cap (5/16-18 X 1-1/2")
(Superseded to 691103)

Note: Used on type No. to mount Starter Bracket to Cylinder.

$3.99

$

In Stock, only 4 left!

0

650

Briggs & Stratton 91814

Screw-Hex (3/8-16 X 2")
(Superseded to 7091814SM)

$3.99

$

Usually ships in 2-12 days

0

652

Briggs & Stratton 91162

Screw, Hex Head Cap (5/16-18 X 1-1/2")
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

653

Briggs & Stratton 91442

Screw-Pulley Mtg.
(Superseded to 7028668YP)

$1367.99

$

Usually ships in 2-12 days

0

655

Briggs & Stratton 221014

Anchor-Rewind Spg

$5.99

$

Usually ships in 2-12 days

0

668

Briggs & Stratton 260647

Spacer (Used Between End Of Ratchet And Starter Pulley)

$3.99

$

Usually ships in 2-12 days

0

669

Briggs & Stratton 297187

Bracket-Mounting (Upper)

$22.99

$

Usually ships in 2-12 days

0

694

Briggs & Stratton 91324

Washer

$

$

Not available

762

Briggs & Stratton 297651

Electric Starter-Generator Kit 12 Volt

$

$

Not available
