20041 - Toro 22" Recycler Walk-Behind Mower (SN: 250000001 - 250999999) (2005) CYLINDER ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

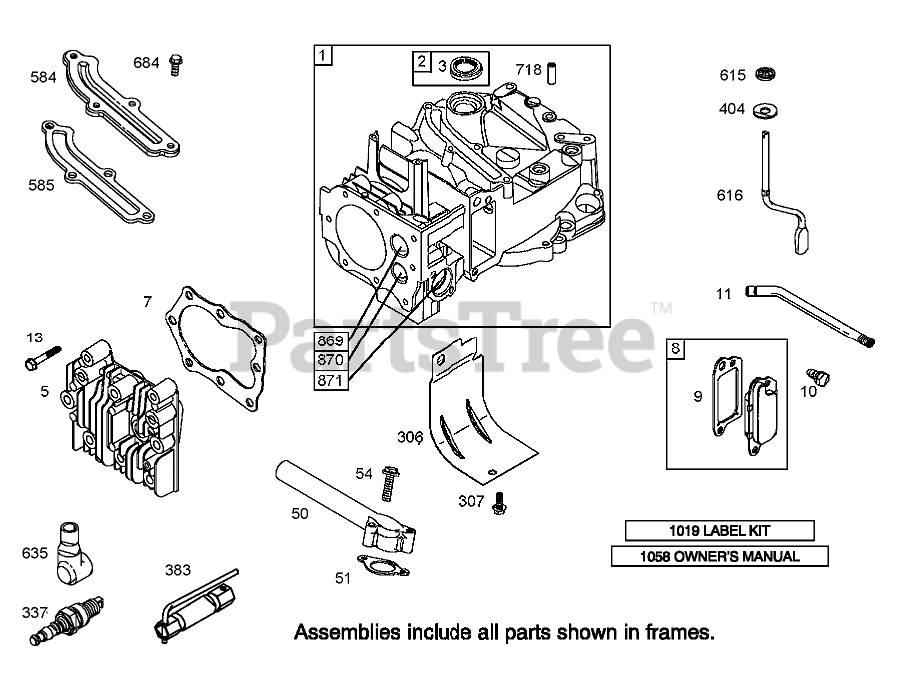

CYLINDER ASSEMBLY Parts Diagram

  • Title

1

Briggs & Stratton 697322

Cylinder ASM
(Superseded to 592645)

Note: Obtain parts from www.briggsandstratton.com

$295.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 399269

Bushing and Seal Kit
(Superseded to 796961)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 13

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, Qty 13

0

5

Briggs & Stratton 691160

Head-Cylinder
(Superseded to 594989)

Note: Obtain parts from www.briggsandstratton.com

$55.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 692249

Gasket-Head, Cylinder

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 692249

Gasket-Head, Cylinder

Note: Included in Engine Gasket Set-Ref. 358.

$8.49

$

In Stock, Qty 20+

0

8

Briggs & Stratton 695250

Breather Asm
(Superseded to 590395)

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 699472

Gasket-Breather
(Superseded to 699833)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 691125

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 691781

Tube-Breather

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 690912

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 19

0

50

Briggs & Stratton 497465

Manifold-Intake
(Superseded to 794305)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

51

Briggs & Stratton 272199

Gasket-Intake
(Superseded to 272199S)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 272199

Gasket-Intake
(Superseded to 272199S)

Note: Included in Engine Gasket Set-Ref. 358.

$4.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton 691650

Screw

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 690450

Shield-Cylinder

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 690345

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592

Plug-Spark
(Superseded to 796112S)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, only 4 left!

0

404

Briggs & Stratton 690272

Washer

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

584

Briggs & Stratton 697734

Cover-Passage, Breather

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

585

Briggs & Stratton 691879

Gasket-Passage, Breather

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

585

Briggs & Stratton 691879

Gasket-Passage, Breather

Note: Included in Engine Gasket Set-Ref. 358.

$6.99

$

In Stock, only 1 left!

0

615

Briggs & Stratton 690340

Retainer-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 698801

Crank-Governor

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 5

0

684

Briggs & Stratton 690345

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

Pin-Locating

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

869

Briggs & Stratton 691155

Seat-Valve

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 690380

Seat-Valve

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

871

Briggs & Stratton 262001

Bushing-Guide

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 63709

Bushing-Guide

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 494256

Label Kit

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

Usually ships in 2-12 days

0

1058

Toro 275177

Manual-Owner?s

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
