20040 (SR-21 OS) - Toro 21" Super Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) HANDLE ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

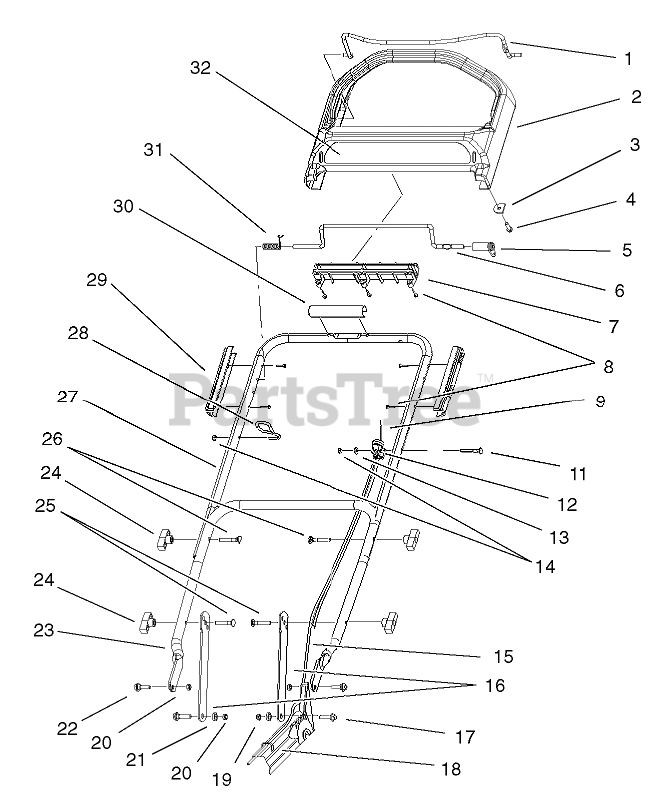

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 99-1593-03

BAIL-BRAKE

$

$

Not available

2

Toro 99-1582

HANDLE-CONTROL

$

$

Not available

3

Toro 99-1595

RETAINER-CABLE, BRAKE
(Superseded to 106-2662)

$19.99

$

In Stock, Qty 5

0

4

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

5

Toro 99-1589

LEVER-TRACTION

$7.99

$

In Stock, Qty 15

0

6

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$17.99

$

In Stock, only 1 left!

0

7

Toro 99-6008

RETAINER-CONTROL ROD, TRACTION

$36.99

$

Usually ships in 3-6 days

0

8

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

9

Toro 100-1186

CABLE-BRAKE

$38.99

$

In Stock, only 2 left!

0

11

Toro 95-4453

SCREW

$3.49

$

In Stock, only 1 left!

0

12

Toro 99-5239

ANCHOR-CABLE
(Superseded to 136-5864)

$2.99

$

In Stock, Qty 7

0

13

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

15

Toro 99-1584

CABLE-TRACTION
(Superseded to 106-8300)

$27.99

$

In Stock, only 3 left!

0

16

Toro 99-5248-03

LATCH-HANDLE

$29.99

$

Usually ships in 3-6 days

0

17

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

18

Toro 100-2894

TIE-CABLE

$2.49

$

Usually ships in 3-6 days

0

19

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 12

0

20

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

22

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

23

Toro 99-5249-05

HANDLE-LOWER

$197.99

$

Usually ships in 3-6 days

0

24

Toro 98-7134

KNOB-HANDLE

$2.99

$

In Stock, Qty 16

0

25

Toro 99-6019

SCREW-CARR

$2.99

$

In Stock, Qty 11

0

26

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 7

0

27

Toro 99-1596-05

HANDLE-UPPER

$90.99

$

Usually ships in 3-6 days

0

28

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

29

Toro 99-1590

GUIDE-HANDLE, CONTROL

$16.99

$

In Stock, only 3 left!

0

30

Toro 99-6339

COVER-HANDLE

$11.99

$

Usually ships in 3-6 days

0

31

Toro 99-1592

SPRING-TORSION, RH

$11.99

$

In Stock, only 2 left!

0

32

Toro 99-6009

DECAL-CONSOLE
(Superseded to 99-6016)

$27.99

$

Usually ships in 3-6 days

0
