20040 (SR-21 OS) - Toro 21" Super Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) ENGINE AND BLADE ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

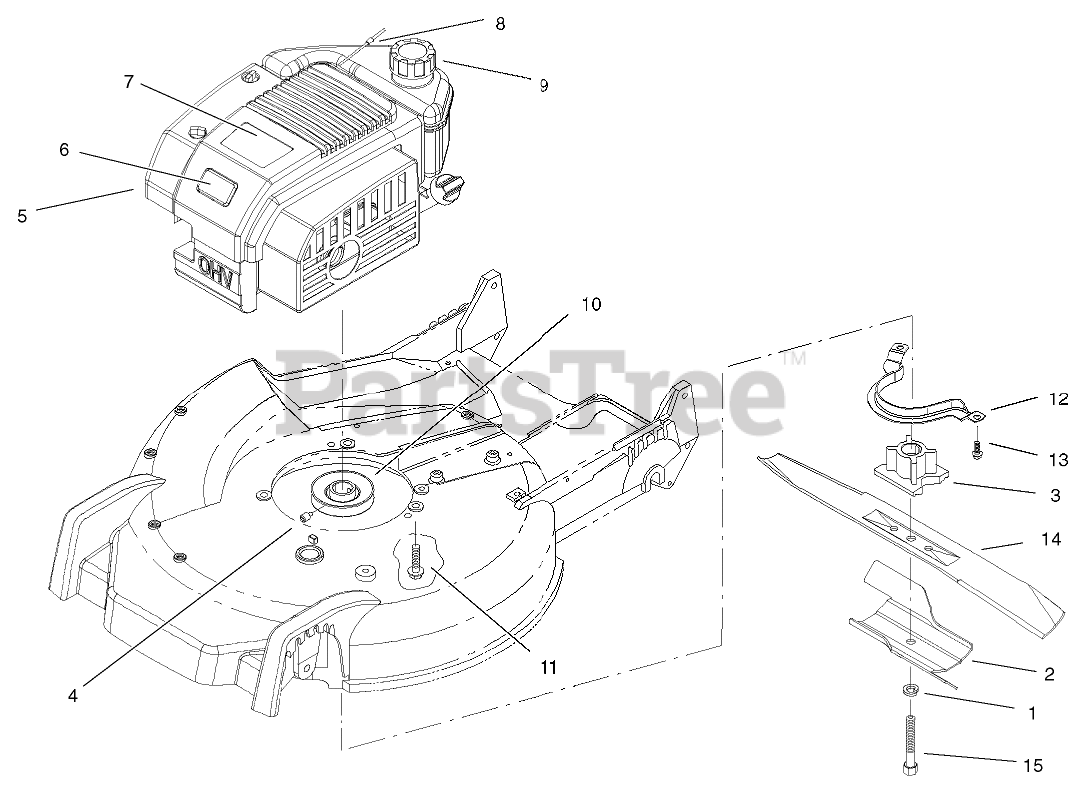

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

2

Toro 94-1608-03

ACCELERATOR-BLADE
(Superseded to 105-6848-03)

$18.99

$

In Stock, only 1 left!

0

3

Toro 100-1100

RETAINER-BLADE

$104.99

$

Usually ships in 3-6 days

0

4

Toro 104-0214

SCREW-SET
(Superseded to 105-8875)

$11.99

$

Usually ships in 3-6 days

0

5

Engine-GTS 200

$

$

Not available

6

Toro 98-3206

Decal

$2.49

$

Usually ships in 3-6 days

0

7

Toro 99-6012

DECAL - RECOIL

$

$

Not available

8

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

9

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

10

Toro 100-1102

PULLEY ASM

$115.99

$

Usually ships in 3-6 days

0

11

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

12

Toro 99-1526-03

GUIDE-BELT

$

$

Not available

13

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

14

Toro 93-4106-03

BLADE
(Superseded to 133-8183-03)

$22.99

$

In Stock, Qty 17

0

15

Toro 95-1748

SCREW-BLADE
(Superseded to 105-8629)

$20.99

$

In Stock, Qty 5

0
