20040 (SR-21 OS) - Toro 21" Super Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) CRANKSHAFT ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

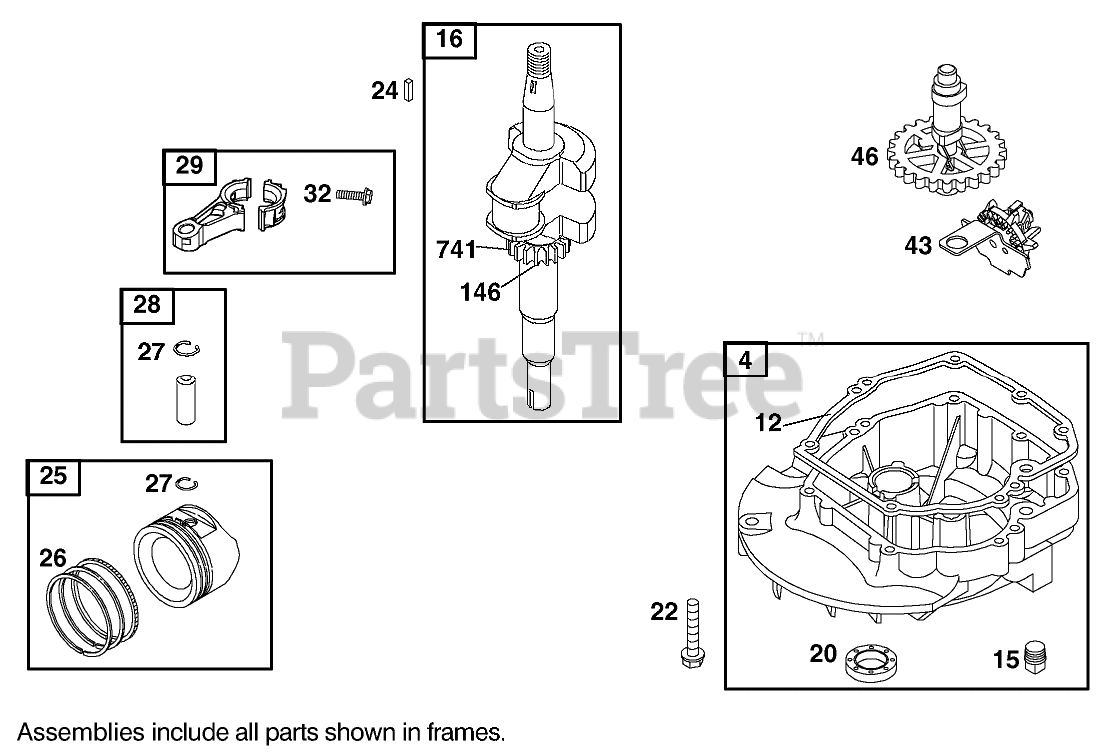

CRANKSHAFT ASSEMBLY Parts Diagram

  • Title

4

Toro 99-0952

SUMP-ENGINE

$234.99

$

Usually ships in 3-6 days

0

12

Toro 99-0953

GASKET-CRANKCASE

Note: Included in Gasket Set-See Ref. 358.

$20.99

$

Usually ships in 3-6 days

0

15

Toro 99-0954

PLUG-DRAIN, OIL

$

$

Not available

16

Toro 100-8796

CRANKSHAFT

$

$

Not available

20

Toro 99-0955

Oil Seal
(Superseded to 77-7570)

Note: Included in Gasket Set-See Ref. 358.

$23.99

$

Usually ships in 3-6 days

0

22

Toro 99-0956

SCREW-HEX

$

$

Not available

Toro 99-1040

SCREW-HEX
(Superseded to 99-0956)

$

$

Not available

24

Toro 99-0957

KEY-FLYWHEEL

$6.99

$

Usually ships in 3-6 days

0

25

Toro 99-0958

PISTON ASM

$266.99

$

Usually ships in 3-6 days

0

Toro 100-5030

PISTON ASM (.010 O/S)

$346.99

$

Usually ships in 3-6 days

0

Toro 100-5029

PISTON ASM (.020 O/S)

$362.99

$

Usually ships in 3-6 days

0

Toro 100-5028

PISTON ASM (.030 O/S)

$379.99

$

Usually ships in 3-6 days

0

26

Toro 99-0959

SET-RING

$

$

Not available

Toro 100-5027

RING SET (.010 O/S)

$131.99

$

Usually ships in 3-6 days

0

Toro 100-5026

RING SET (.020 O/S)

$

$

Not available

Toro 100-5025

RING SET (.030 O/S)

$147.99

$

Usually ships in 3-6 days

0

27

Toro 99-0960

LOCK-PIN, PISTON

$

$

Not available

28

Toro 99-0961

PIN-PISTON

$

$

Not available

29

Toro 99-0962

ROD-CONNECTING

$96.99

$

Usually ships in 3-6 days

0

32

Toro 99-0963

SCREW-ROD, CONNECTING

$

$

Not available

43

Toro 99-0964

SLINGER-OIL, GOVERNOR

$

$

Not available

46

Toro 99-0965

GEAR-CAM

$164.99

$

Usually ships in 3-6 days

0

146

Toro 99-0966

KEY-TIMING

$

$

Not available

741

Toro 99-0967

GEAR-TIMING

$

$

Not available
