20040 (SR-21 OS) - Toro 21" Super Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE GTS 200 Parts Diagram

21" Super Recycler Walk-Behind Mower

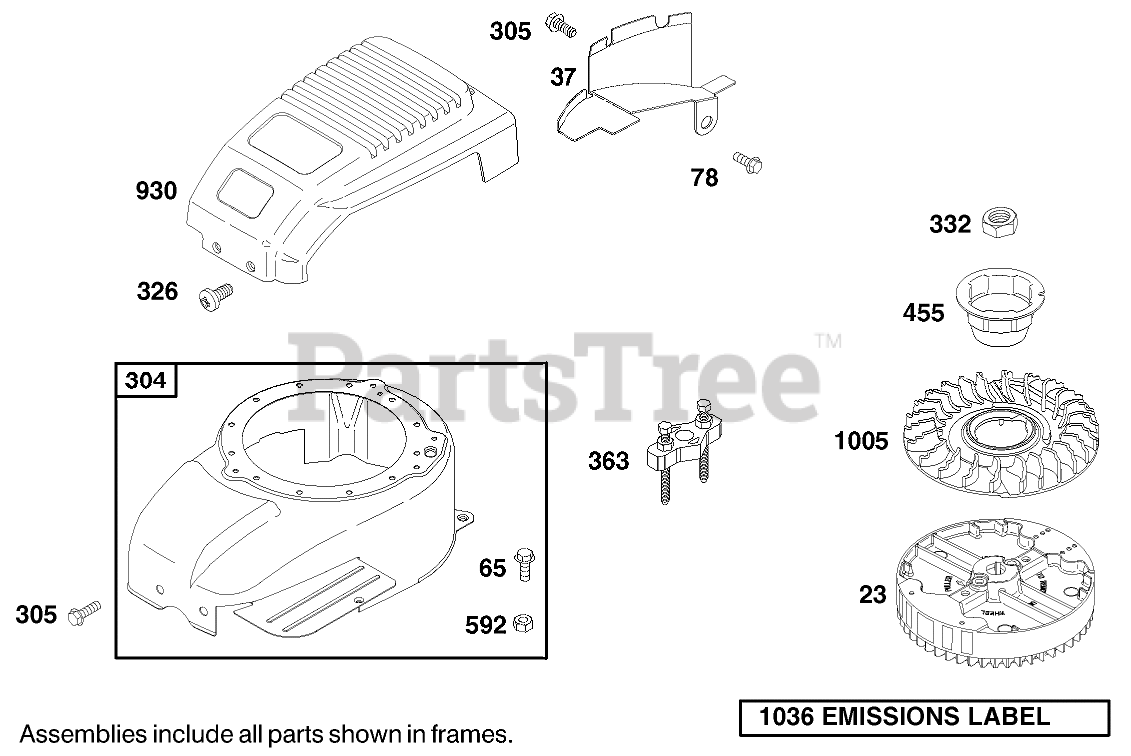

ENGINE GTS 200 Parts Diagram

  • Title
23

Toro 99-1001

FLYWHEEL

$

$

Not available

37

Toro 99-0950

ARM-ROCKER

$

$

Not available

65

Toro 99-1002

SCREW-HH

$

$

Not available

78

Toro 99-0941

SCREW-HH

$

$

Not available

131

Toro 99-0975

SHAFT-THROTTLE

$32.99

$

Usually ships in 3-6 days

0

304

Toro 99-1003

HOUSING-BLOWER

$

$

Not available

305

Toro 99-0941

SCREW-HH

$

$

Not available

326

Toro 98-9204

SCREW-SHROUD

$6.49

$

Usually ships in 3-6 days

0

332

Toro 94-1673

NUT-FLYWHEEL

$

$

Not available

363

Toro 99-1008

PULLER-FLYWHEEL

$

$

Not available

455

Toro 99-1010

CUP-FLYWHEEL

$

$

Not available

592

Toro 99-1009

NUT-HEX

$

$

Not available

812

Toro 99-0942

SCREW-HEX

$

$

Not available

930

Toro 98-9203

GUARD-REWIND

$79.99

$

Usually ships in 3-6 days

0

1005

Toro 99-1015

FAN-FLYWHEEL

$41.99

$

Usually ships in 3-6 days

0

1036

Toro 99-1016

KIT-LABEL, EMISSIONS

$

$

Not available
