20040 (SR-21 OS) - Toro 21" Super Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE GTS 200 Parts Diagram

21" Super Recycler Walk-Behind Mower

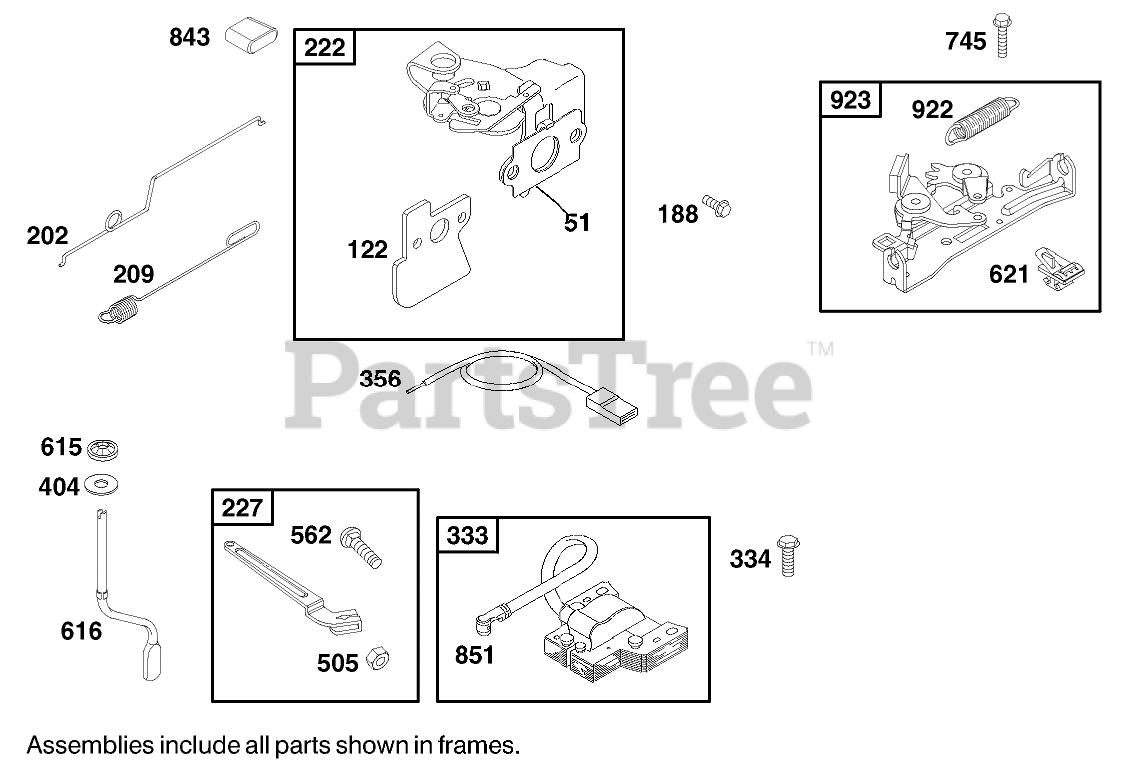

ENGINE GTS 200 Parts Diagram

  • Title
51

Toro 99-0968

GASKET-INTAKE

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Valve Over Haul Gasket Set-See Ref. 1095

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Gasket Set-See Ref. 358.

$

$

Not available

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Gasket Set-See Ref. 358.

$43.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Carburetor Kit-See Ref. 121.

$43.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Valve Over Haul Gasket Set-See Ref. 1095

$43.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Carburetor Gasket Set-See Ref. 977.

$43.99

$

Usually ships in 3-6 days

0

131

Toro 99-0975

SHAFT-THROTTLE

$32.99

$

Usually ships in 3-6 days

0

188

Toro 100-5031

SCREW-CONTROL BRACKET

$

$

Not available

202

Toro 99-0981

LINK-GOVERNOR

$

$

Not available

209

Toro 99-0982

SPRING-GOVERNOR

$14.99

$

Usually ships in 3-6 days

0

222

Toro 100-2891

BRACKET-CONTROL

$78.99

$

Usually ships in 3-6 days

0

227

Toro 99-0917

GOVERNOR LEVER ASM

$

$

Not available

333

Toro 99-1005

ARMATURE-MAGNETO

$57.99

$

In Stock, Qty 20+

0

334

Toro 99-1006

SCREW-HH

$

$

Not available

356

Toro 99-1007

WIRE-STOP

$

$

Not available

404

Toro 99-0918

WASHER-CRANK, GOVERNOR

$

$

Not available

505

Toro 99-0924

NUT-HEX

$

$

Not available

562

Toro 99-0921

Screw-HH
(Superseded to 94-1670)

$

$

Not available

615

Toro 99-0925

FASTENER

$

$

Not available

616

Toro 99-0926

CRANK-GOVERNOR

$

$

Not available

621

Toro 99-0986

SWITCH-STOP
(Superseded to 77-8010)

$

$

Not available

745

Toro 99-0983

SCREW-HH

$

$

Not available

812

Toro 99-0942

SCREW-HEX

$

$

Not available

851

Toro 77-9450

TERMINAL-PLUG, SPARK

$

$

Not available

922

Toro 99-0987

SPRING-BRAKE

$

$

Not available

923

Toro 99-0988

BRAKE ASSEMBLY
(Superseded to 77-9460)

$

$

Not available
