20039 - Toro Super Recycler Walk-Behind Mower with Bag (SN: 220000001 - 220999999) (2002) ENGINE ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower with Bag

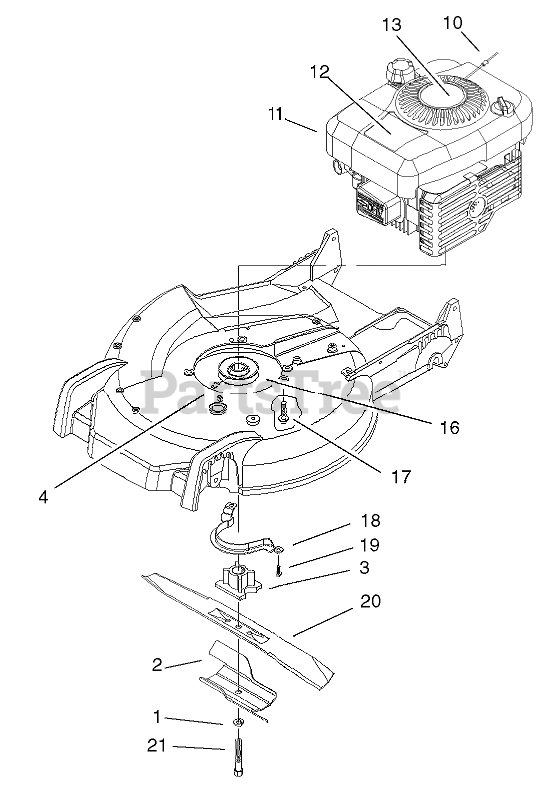

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

2

Toro 94-1608-03

ACCELERATOR-BLADE
(Superseded to 105-6848-03)

$18.99

$

In Stock, only 1 left!

0

3

Toro 104-1007

RETAINER-BLADE

$72.99

$

In Stock, only 1 left!

0

4

Toro 104-0214

SCREW-SET
(Superseded to 105-8875)

$11.99

$

Usually ships in 3-6 days

0

10

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

11

Engine-Intek 6.75, Es W/Alt Briggs and Stratton Model 122607-0118-E1

Note: Not serviced separately

$

$

Not available

12

Toro 99-6015

DECAL-RECOIL

$6.99

$

Usually ships in 3-6 days

0

13

Toro 105-8571

Decal-Recoil

$26.99

$

Usually ships in 3-6 days

0

16

Toro 95-1878

PULLEY

$63.99

$

In Stock, only 1 left!

0

17

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

18

Toro 66-0570-03

BRACKET-GUIDE, BELT

$13.99

$

In Stock, only 2 left!

0

19

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

20

Toro 93-4106-03

BLADE
(Superseded to 133-8183-03)

$22.99

$

In Stock, Qty 20+

0

21

Toro 95-1748

SCREW-BLADE
(Superseded to 105-8629)

$20.99

$

In Stock, Qty 5

0
