20039 - Toro Super Recycler Walk-Behind Mower with Bag (SN: 220000001 - 220999999) (2002) BATTERY AND SWITCH ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower with Bag

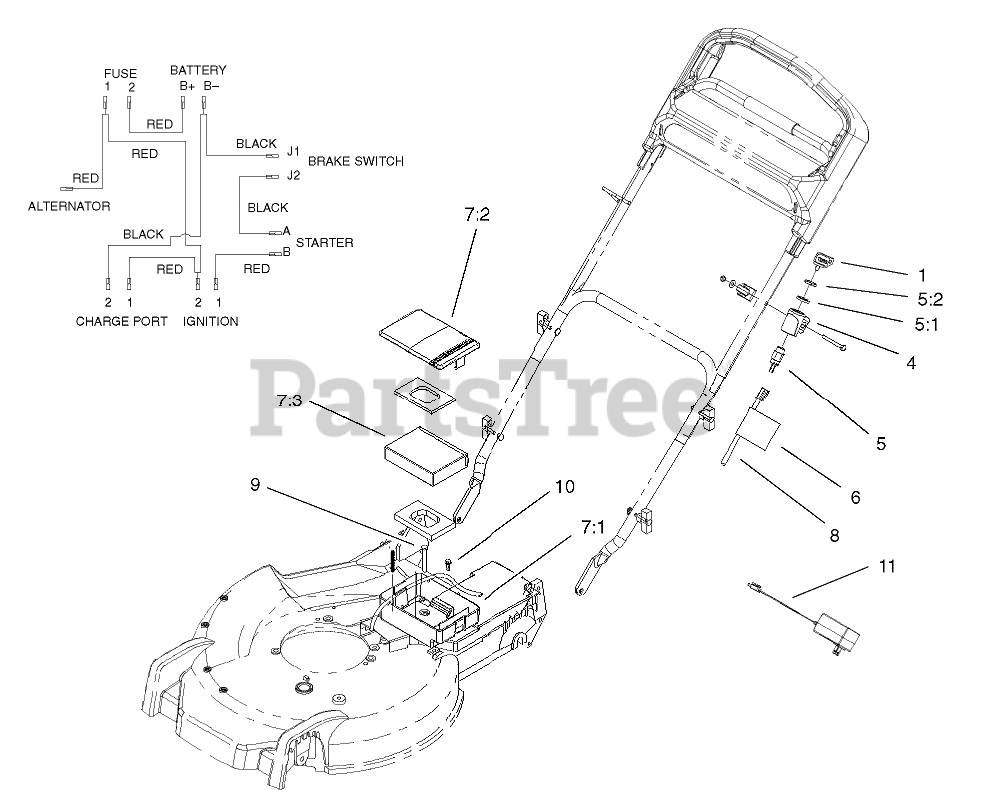

BATTERY AND SWITCH ASSEMBLY Parts Diagram

  • Title

1

Toro 700918

KEY

$6.49

$

In Stock, Qty 11

0

4

Toro 104-8692

Mount-Switch
(Superseded to 108-9760)

$5.99

$

In Stock, only 1 left!

0

5

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, only 1 left!

0

5:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

5:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

6

Toro 104-7953

DECAL-WARNING

$9.99

$

Usually ships in 3-6 days

0

7:1

Toro 104-7900

BOX-BATTERY
(Superseded to 105-6843)

$36.99

$

Usually ships in 3-6 days

0

7:2

Toro 104-7901

COVER-BATTERY
(Superseded to 105-6844)

$40.99

$

Usually ships in 3-6 days

0

7:3

Toro 104-7903

BATTERY-12V
(Superseded to 115-1304)

$96.99

$

In Stock, only 3 left!

0

7

Toro 104-7682

BATTERY ASM-PANASONIC
(Superseded to 115-1304)

$96.99

$

In Stock, only 3 left!

0

8

Toro 104-7921

Harness-Wire,Tc

$156.99

$

Usually ships in 3-6 days

0

9

Toro 37-7262

SCREW-SPECIAL

$3.49

$

Usually ships in 3-6 days

0

10

Toro 32144-32

SCREW

$2.99

$

Usually ships in 3-6 days

0

11

Toro 104-7401

CHARGER-12 VOLT
(Superseded to 136-9126)

$41.99

$

In Stock, only 1 left!

0

13

Toro 99-6124

FUSE-40 AMP

Note: Not illustrated

$5.49

$

In Stock, Qty 8

0
