20038 - Toro Super Recycler Walk-Behind Mower with Bag (SN: 230000001 - 230999999) (2003) CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON MODEL 122602-0111-E1 Parts Diagram

Super Recycler Walk-Behind Mower with Bag

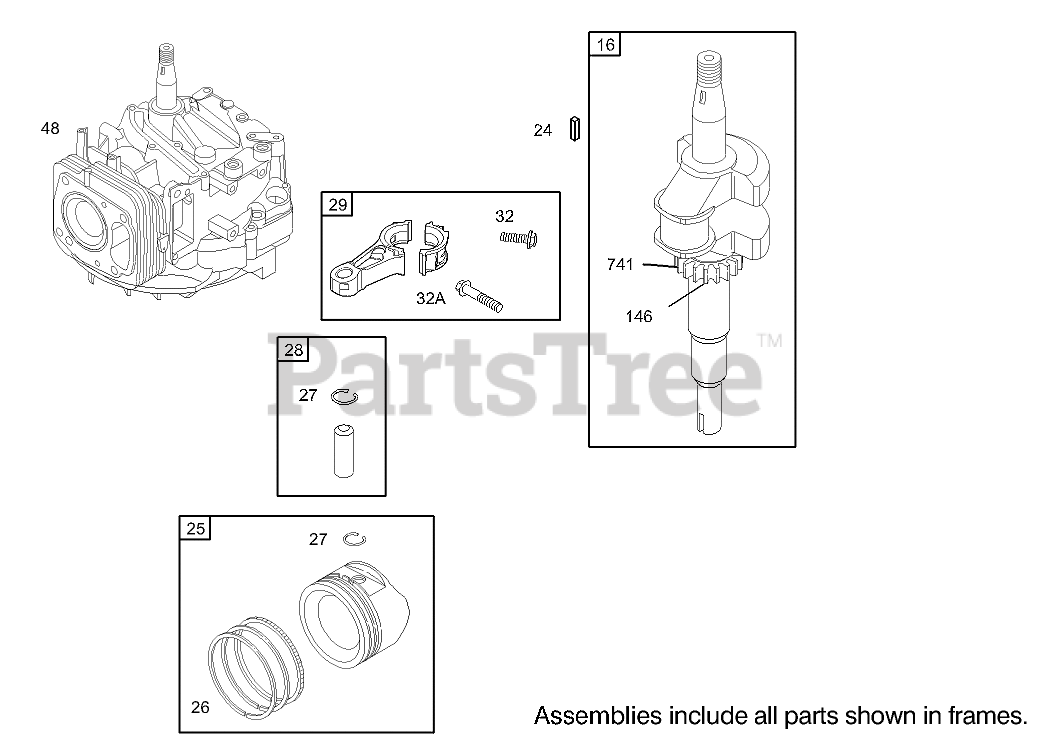

CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON MODEL 122602-0111-E1 Parts Diagram

  • Title
16

Briggs & Stratton 695950

Crankshaft

Note: Obtain parts from www.briggsandstratton.com

$192.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 499627

Piston ASM (Standard)
(Superseded to 799063)

Note: Obtain parts from www.briggsandstratton.com

$91.99

$

In Stock, Qty 5

0

Briggs & Stratton 692788

Piston Assembly (.010 Oversize)

Note: Obtain parts from www.briggsandstratton.com

$55.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692789

Piston ASM (.020in Oversize)
(Superseded to 799064)

Note: Obtain parts from www.briggsandstratton.com

$120.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692790

Piston Assembly (.030 Oversize)

Note: Obtain parts from www.briggsandstratton.com

$65.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499631

Ring Set (Standard)

Note: Obtain parts from www.briggsandstratton.com

$53.99

$

In Stock, only 4 left!

0

Briggs & Stratton 692785

Ring Set (.010in Oversize)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

Briggs & Stratton 692786

Ring Set (.020in Oversize)

Note: Obtain parts from www.briggsandstratton.com

$55.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692787

Ring Set (.030in Oversize)

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 691866

Lock-Pin, Piston

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Pin-Piston

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 499424

Rod-Connecting
(Superseded to 590406)

Note: Obtain parts from www.briggsandstratton.com

$87.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 691664

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

32A

Briggs & Stratton 695759

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 2 left!

0

48

Briggs & Stratton 694898

Short Block

Note: Obtain parts from www.briggsandstratton.com

$205.99

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 690979

Key-Timing

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 8

0

741

Briggs & Stratton 691830

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days

0
