20037 - Toro Super Recycler Walk-Behind Mower with Bag (SN: 240000001 - 240999999) (2004) GEAR CASE ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower with Bag

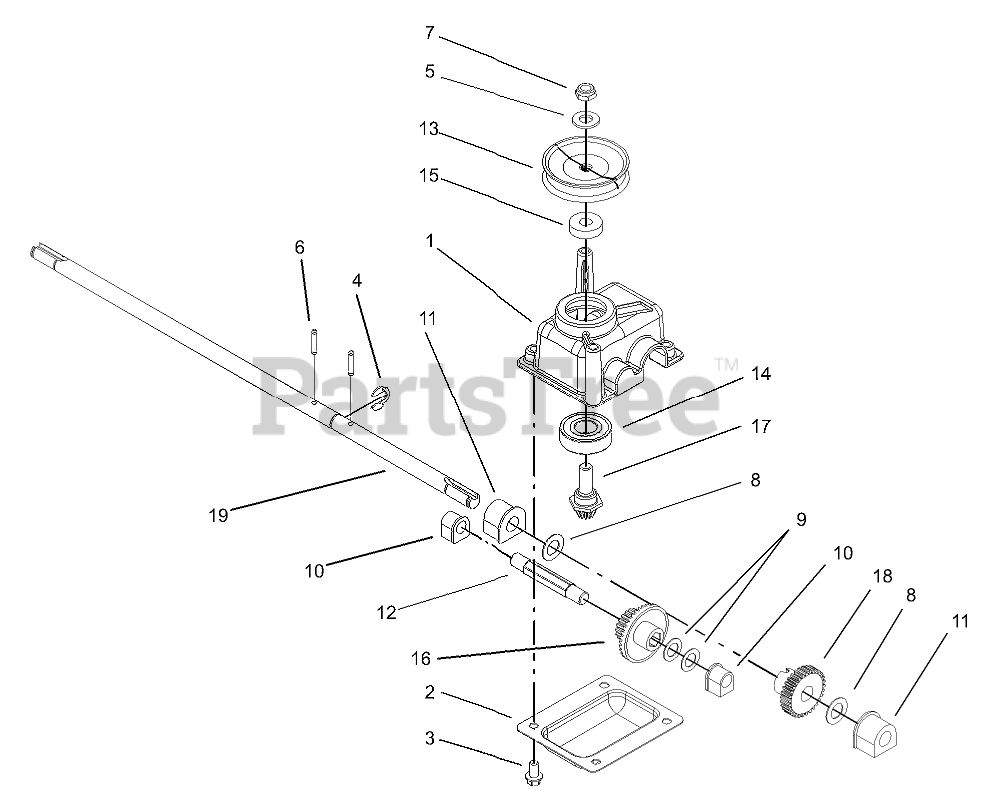

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 104-7619

CASE-GEAR

$45.99

$

In Stock, only 1 left!

0

2

Toro 614668-03

COVER-CASE, GEAR

$9.49

$

Usually ships in 3-6 days

0

3

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

4

Toro 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 6

0

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

6

Toro 3285-19

PIN-GROOVE

$2.99

$

In Stock, Qty 7

0

7

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

8

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 7

0

9

Toro 36-4791

WASHER-THRUST

$2.49

$

In Stock, Qty 20+

0

10

Toro 60-8750

BUSHING

$6.99

$

In Stock, Qty 10

0

11

Toro 60-8850

BUSHING

$8.49

$

In Stock, Qty 17

0

12

Toro 614696

SHAFT-INTERMEDIATE

$108.99

$

Usually ships in 3-6 days

0

13

Toro 100-1176

PULLEY-HALF

$9.99

$

Usually ships in 3-6 days

0

14

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 18

0

15

Toro 62-6660

SPACER

$1.49

$

In Stock, only 3 left!

0

16

Toro 104-1005

GEAR-19T SPUR, 37T BEVEL

$60.99

$

In Stock, only 1 left!

0

17

Toro 104-7667

GEAR-PINION, BEVEL

$18.99

$

In Stock, only 1 left!

0

18

Toro 104-1004

GEAR-30T

$25.99

$

Usually ships in 3-6 days

0

19

Toro 104-7673

SHAFT-OUTPUT

$183.99

$

Usually ships in 3-6 days

0
