20037 - Toro Super Recycler Walk-Behind Mower with Bag (SN: 220000001 - 220999999) (2002) CRANKSHAFT ASSEMBLY 123K02-0114-E1 Parts Diagram

Super Recycler Walk-Behind Mower with Bag

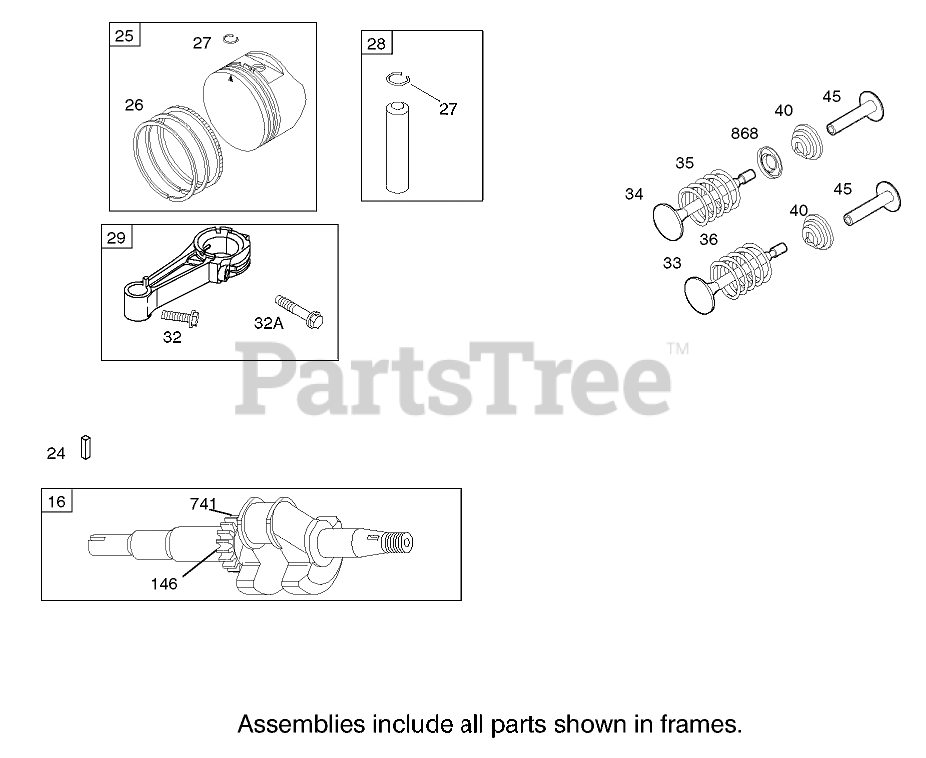

CRANKSHAFT ASSEMBLY 123K02-0114-E1 Parts Diagram

  • Title

16

Briggs & Stratton 696009

Crankshaft
(Superseded to 590807)

$179.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 697339

Piston ASM (Standard)
(Superseded to 799063)

$91.99

$

In Stock, Qty 5

0

Toro 697340

Piston Assembly (.010" Oversize)

$

$

Currently unavailable

Briggs & Stratton 697341

Piston ASM (.020in Oversize)
(Superseded to 799064)

$120.99

$

Usually ships in 2-12 days

0

Toro 697342

Piston Assembly (.030" Oversize)

$

$

Currently unavailable

26

Briggs & Stratton 499425

Ring Set (Standard)

$

$

Not available

Briggs & Stratton 499426

Ring Set (.010" O.S.)

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 499427

Ring Set (.020in Oversize)

$52.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 499428

Ring Set (.030" O.S.)

$29.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 691866

Lock-Pin, Piston

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Pin-Piston

$9.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 298908

Pin-Piston (.005 Undersize)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 499424

Rod-Connecting
(Superseded to 590406)

$87.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 691664

Screw

$4.49

$

In Stock, only 2 left!

0

32A

Briggs & Stratton 695759

Screw

$4.99

$

In Stock, only 2 left!

0

33

Briggs & Stratton 262651

Valve-Exhaust
(Superseded to 590394)

$24.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 262652

Valve-Intake
(Superseded to 590393)

$21.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 691270

Spring-Valve

$5.49

$

In Stock, Qty 7

0

36

Briggs & Stratton 691270

Spring-Valve

$5.49

$

In Stock, Qty 7

0

40

Briggs & Stratton 692194

Retainer-Valve

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 690548

Tappet-Valve

$9.99

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 690979

Key-Timing

$3.49

$

In Stock, Qty 8

0

741

Briggs & Stratton 691830

Gear-Timing

$17.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 697338

Seal-Valve

$13.99

$

In Stock, only 4 left!

0
