20036 - Toro Super Recycler Walk-Behind Mower (SN: 240000001 - 240999999) (2004) ENGINE ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

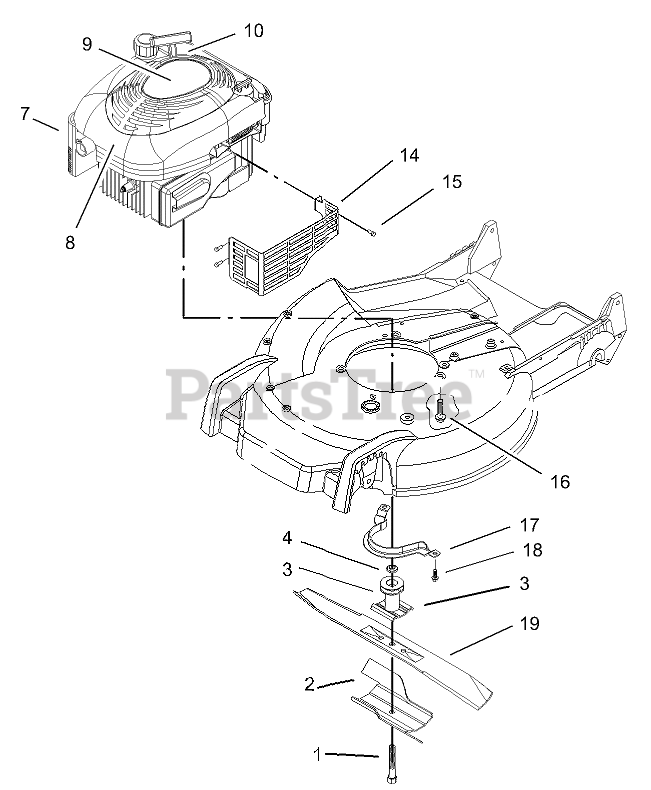

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

2

Toro 105-6848-03

Accelerator-Blade

$18.99

$

In Stock, only 1 left!

0

3

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, only 2 left!

0

4

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

7

Engine-Quantum 6.5 Briggs and Stratton Model 123k02-0114-E1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

7

Engine-Quantum 6.5 Briggs and Stratton Model 123k02-0114-E1

Note: Not serviced separately

$

$

Not available

8

Toro 98-3206

Decal

$2.49

$

Usually ships in 3-6 days

0

9

Toro 105-8570

Decal-Recoil

$10.99

$

Usually ships in 3-6 days

0

10

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

14

Toro 104-7577-03

SHIELD-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

15

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

16

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

17

Toro 66-0570-03

BRACKET-GUIDE, BELT

$13.99

$

In Stock, only 2 left!

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

19

Toro 93-4106-03

BLADE
(Superseded to 133-8183-03)

$22.99

$

In Stock, Qty 17

0
