20035 (R-21 SE) - Toro 21" Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) HOUSING & BRACKET ASSEMBLY Parts Diagram

21" Recycler Walk-Behind Mower

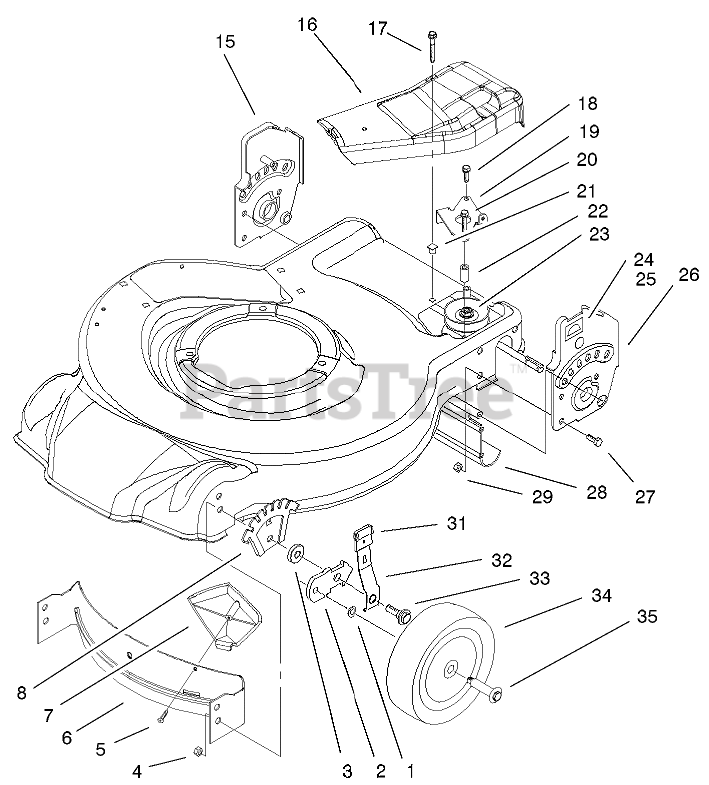

HOUSING & BRACKET ASSEMBLY Parts Diagram

  • Title

1

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

2

Toro 95-7403-03

BRACKET-HEIGHT ADJUSTMENT, WHEEL

$

$

Not available

3

Toro 92-4890

WASHER

$8.99

$

In Stock, only 2 left!

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

5

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

6

Toro 93-0222-03

BAFFLE - FRONT

$29.99

$

Usually ships in 3-6 days

0

7

Toro 93-0216

KICKER-FRONT

$

$

Not available

8

Toro 92-4881-03

PLATE-HEIGHT, ADJUSTMENT

$29.99

$

Usually ships in 3-6 days

0

15

Toro 99-5234

BRACKET ASM-HANDLE, RH

$

$

Not available

16

Toro 99-1581

COVER-BELT

$29.99

$

Usually ships in 3-6 days

0

17

Toro 32144-119

SCREW-PTH

$

$

Not available

18

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

19

Toro 99-1567-03

BRACKET-BELT GUIDE

$

$

Not available

20

Toro 92-1616

SCREW-HWHTF

$3.49

$

In Stock, only 1 left!

0

21

Toro 605120

NUT-CLIP

$4.49

$

In Stock, Qty 9

0

22

Toro 614673

BUSHING-PLATE, ACTUATOR

$12.99

$

In Stock, only 2 left!

0

23

Toro 104-7677

GEAR CASE ASM

$334.99

$

Usually ships in 3-6 days

0

24

Toro 92-2915

DECAL-HOC, RH

$6.49

$

Usually ships in 3-6 days

0

25

Toro 92-2914

DECAL-HOC, LH

$

$

Not available

26

Toro 99-5233

BRACKET ASM-HANDLE, LH

$24.99

$

Usually ships in 3-6 days

0

27

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

28

Toro 92-8647

SHIELD-TRAILING

$41.99

$

In Stock, only 1 left!

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$14.99

$

In Stock, only 2 left!

0

32

Toro 614687

ARM-FRONT SPRING

$21.99

$

In Stock, only 3 left!

0

33

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 9

0

34

Toro 92-9591

WHEEL ASM

$27.99

$

In Stock, only 2 left!

0

35

Toro 614672

BOLT-SHOULDER

$2.99

$

In Stock, Qty 6

0
