20035 (R-21 SE) - Toro 21" Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) ENGINE BRIGGS & STRATTON MODEL 12J805-2370-B1 Parts Diagram

21" Recycler Walk-Behind Mower

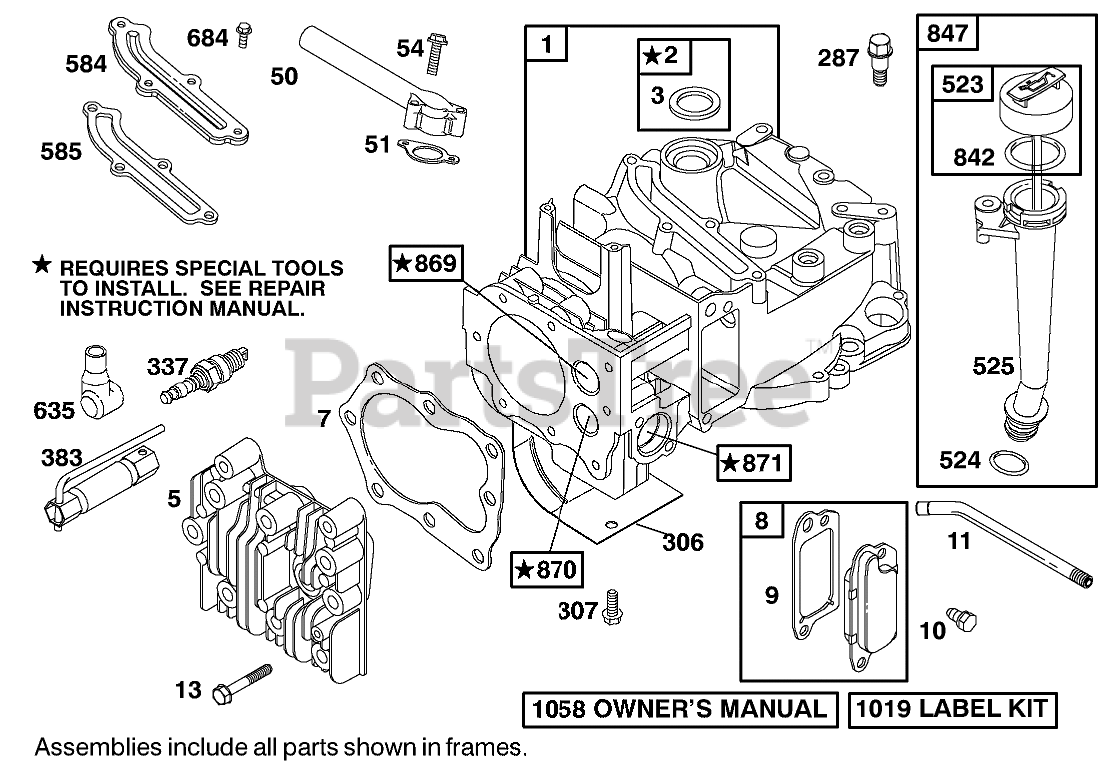

ENGINE BRIGGS & STRATTON MODEL 12J805-2370-B1 Parts Diagram

  • Title

1

Briggs & Stratton 494062

Cylinder Assembly
(Superseded to 592645)

$295.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 399269

Bushing and Seal Kit
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, Qty 14

0

5

Briggs & Stratton 691160

Head-Cylinder
(Superseded to 594989)

$55.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 692249

Gasket-Head, Cylinder

Note: Included in Valve Gasket Set-Ref. 1095.

$8.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 692249

Gasket-Head, Cylinder

Note: Included in Engine Gasket Set-Ref. 358.

$8.49

$

In Stock, Qty 20+

0

8

Briggs & Stratton 695250

Breather Asm
(Superseded to 590395)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Valve Gasket Set-Ref. 1095.

$5.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 94650

Screw-Hex.

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 691781

Tube-Breather

$10.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 690912

Screw

$3.99

$

In Stock, Qty 19

0

50

Briggs & Stratton 497465

Manifold-Intake
(Superseded to 794305)

$

$

Not available

51

Briggs & Stratton 272199

Gasket-Intake
(Superseded to 272199S)

Note: Included in Engine Gasket Set-Ref. 358.

$4.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton 691650

Screw

$2.99

$

Usually ships in 2-12 days

0

287

Briggs & Stratton 690940

Screw

$3.99

$

In Stock, Qty 5

0

306

Briggs & Stratton 690450

Shield-Cylinder

$10.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 690345

Screw

$4.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

523

Briggs & Stratton 495264

Dipstick
(Superseded to 499621)

$17.99

$

In Stock, only 4 left!

0

524

Briggs & Stratton 692296

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$4.99

$

In Stock, only 2 left!

0

525

Briggs & Stratton 495265

Tube-Dipstick

$

$

Not available

584

Briggs & Stratton 692342

Cover?Breather Passage
(Superseded to 697734)

$9.49

$

Usually ships in 2-12 days

0

585

Briggs & Stratton 691879

Gasket-Passage, Breather

Note: Included in Engine Gasket Set-Ref. 358.

$6.99

$

In Stock, only 1 left!

0

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 5

0

684

Briggs & Stratton 690345

Screw

$4.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 692017

Dipstick/Tube Assembly
(Superseded to 692047)

$

$

Not available

869

Briggs & Stratton 691155

Seat-Valve

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 690380

Seat-Valve

$

$

Not available

871

Briggs & Stratton 262001

Bushing-Guide

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 63709

Bushing-Guide

$14.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 498606

Label Kit

$27.99

$

Usually ships in 2-12 days

0

1058

Toro 274783

Owner-s Manual

$

$

Currently unavailable

Toro 696276

Short Block

$

$

Currently unavailable
