20030 (SR-21 P) - Toro 21" Super Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) HOUSING, HANDLE BRACKETS & WHEEL ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

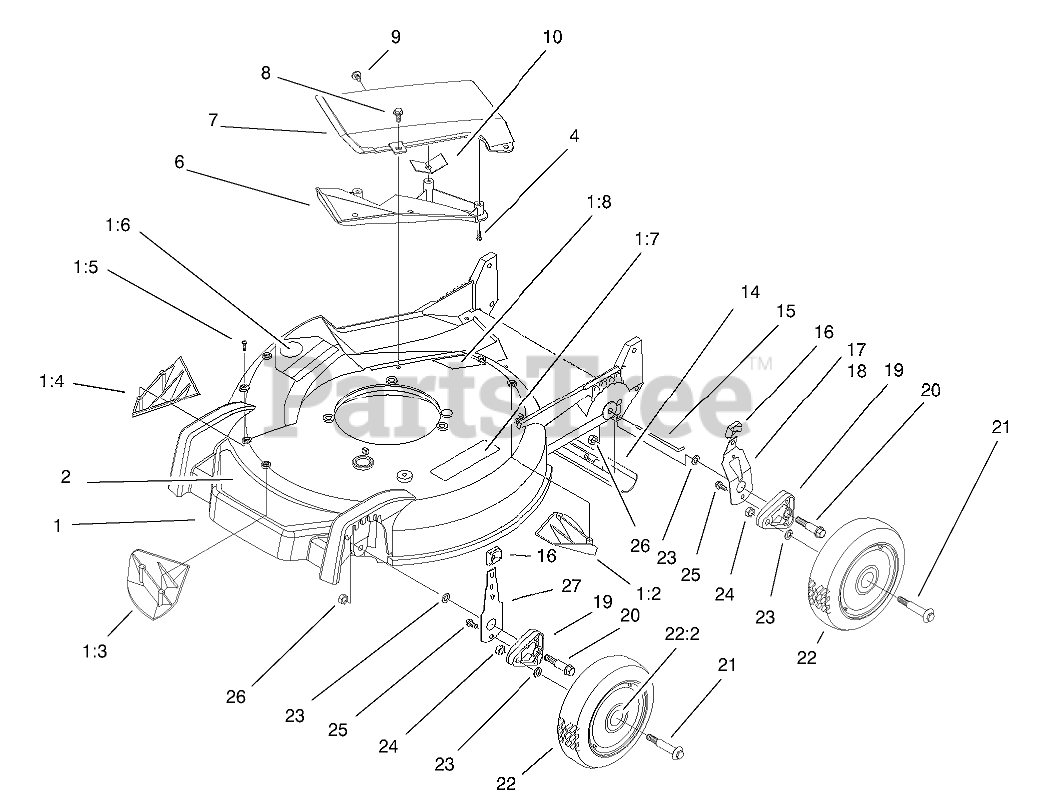

HOUSING, HANDLE BRACKETS & WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 99-1704

HOUSING ASM

$740.99

$

Usually ships in 3-6 days

0

1:2

Toro 92-1660

KICKER-REAR

$

$

Not available

1:3

Toro 92-1720

KICKER-FRONT

$23.99

$

In Stock, only 2 left!

0

1:4

Toro 92-1730

KICKER-RH

$23.99

$

In Stock, only 2 left!

0

1:5

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

1:6

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

1:7

Toro 93-0248

DECAL-WARNING
(Superseded to 104-8589)

$7.49

$

Usually ships in 3-6 days

0

1:8

Toro 99-6018

DECAL-WARNING

$2.99

$

Usually ships in 3-6 days

0

2

Toro 99-6010

DECAL - DECK

$

$

Not available

4

Screw-PPH

$

$

Not available

6

Deflector

$

$

Not available

7

Toro 100-2857

RECYCLER COVER ASM.
(Superseded to 17-5179)

$

$

Not available

8

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

9

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, Qty 11

0

10

Cover Guard

$

$

Not available

14

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

15

Toro 33-3208

ROD-SHIELD

$16.99

$

In Stock, Qty 12

0

16

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

17

Toro 71-0571

LH SPRING ARM ASM

$45.99

$

In Stock, only 1 left!

0

18

Toro 71-0561

RH SPRING ARM ASM

$19.99

$

In Stock, only 1 left!

0

19

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, Qty 6

0

20

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 15

0

21

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 20+

0

21

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

22

Toro 98-7130

WHEEL ASM

$25.99

$

In Stock, Qty 14

0

22

Toro 14-9989

WHEEL AND TIRE ASM

$47.99

$

Usually ships in 3-6 days

0

22:2

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

23

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

24

$2.99

$

In Stock, Qty 20+

0

24

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

25

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

26

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

27

Toro 66-0541

FRONT SPRING ARM ASM

$18.99

$

In Stock, Qty 6

0
