20030 (SR-21 P) - Toro 21" Super Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) ENGINE BRIGGS & STRATTON MODEL 12H802-1767-E1 Parts Diagram

21" Super Recycler Walk-Behind Mower

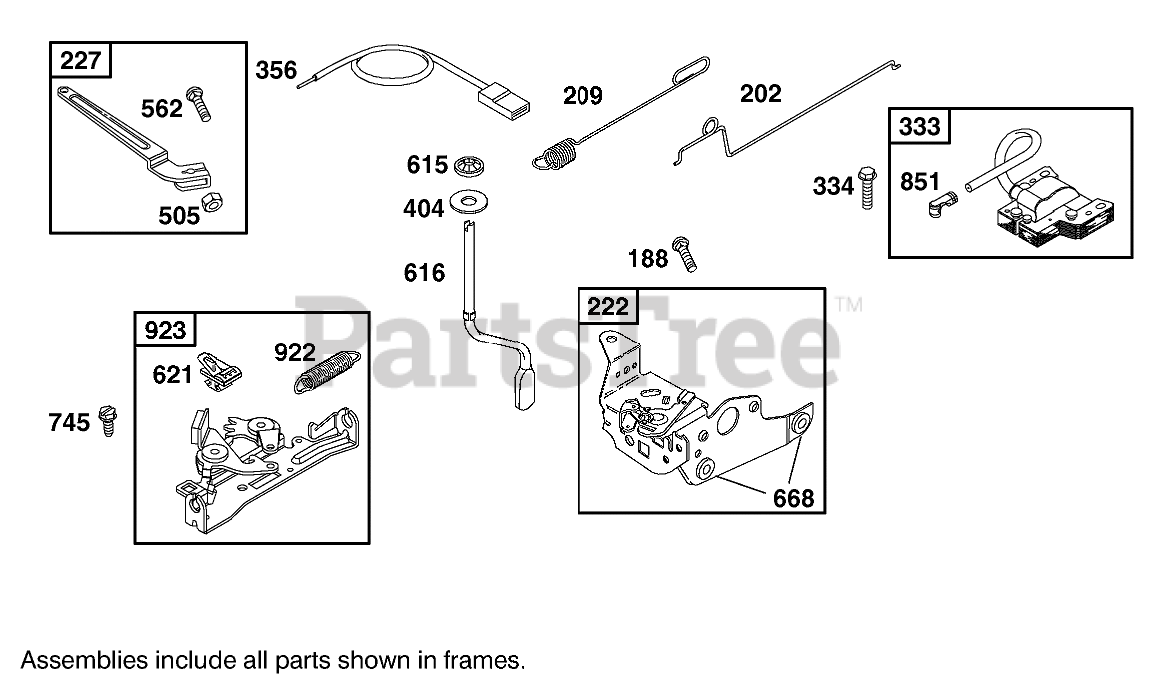

ENGINE BRIGGS & STRATTON MODEL 12H802-1767-E1 Parts Diagram

  • Title
188

Briggs & Stratton 94644

Screw-Hex.
(Superseded to 690877)

$3.99

$

In Stock, Qty 5

0

202

Briggs & Stratton 262579

Link-Govemor
(Superseded to 691829)

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 691292

Spring-Governor

$8.49

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 499835

Bracket-Control
(Superseded to 793754)

$43.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 492349

Lever Ass-y. Gov.
(Superseded to 690783)

$15.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

Screw-Sem
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 497833

Wire-Stop
(Superseded to 692390)

$

$

Not available

404

Briggs & Stratton 67072

Washer
(Superseded to 690272)

$3.99

$

In Stock, only 2 left!

0

505

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

$

$

Not available

615

Briggs & Stratton 94474

Pushnut
(Superseded to 690340)

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 691306

Crank-Governor
(Superseded to 698801)

$10.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 396847

Switch
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

668

Briggs & Stratton 493823

Spacer (Includes 2)

Note: Included in Gasket Set-See Ref. 358.

$6.49

$

In Stock, only 1 left!

0

745

Briggs & Stratton 94512

Screw-Sem
(Superseded to 691648)

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

922

Briggs & Stratton 262640

Brake Spring
(Superseded to 691831)

$10.99

$

In Stock, only 2 left!

0

923

Briggs & Stratton 493442

Brake
(Superseded to 796387)

$

$

Not available
