20027 (R-21 OSB) - Toro 21" Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) ENGINE BRIGGS & STRATTON MODEL 122602-0150-E1 Parts Diagram

21" Recycler Walk-Behind Mower

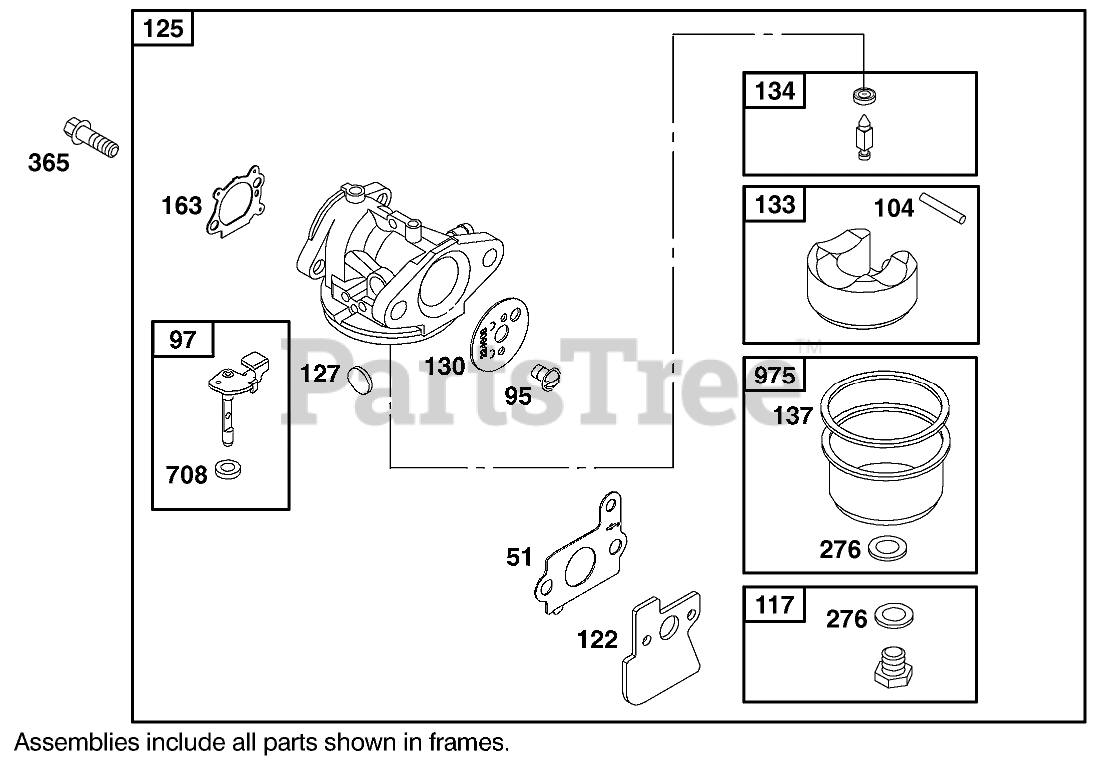

ENGINE BRIGGS & STRATTON MODEL 122602-0150-E1 Parts Diagram

  • Title

51

Briggs & Stratton 272487

Gasket-Intake
(Superseded to 692668)

Note: Included in Carburetor Kit-See Ref. 121.

$4.49

$

In Stock, only 3 left!

0

51

Briggs & Stratton 272487

Gasket-Intake
(Superseded to 692668)

Note: Included in Gasket Set-See Ref. 358.

$4.49

$

In Stock, only 3 left!

0

51

Briggs & Stratton 272487

Gasket-Intake
(Superseded to 692668)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$4.49

$

In Stock, only 3 left!

0

51

Briggs & Stratton 272487

Gasket-Intake
(Superseded to 692668)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$4.49

$

In Stock, only 3 left!

0

95

Briggs & Stratton 94098

Valve-Choke
(Superseded to 691636)

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 499682

Shaft?Throttle

$16.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 691242

Pin-Hinge, Float
(Superseded to 797622)

$3.99

$

In Stock, Qty 10

0

117

Briggs & Stratton 494870

Jet-Main

$

$

Not available

122

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Gasket Set-See Ref. 358.

$14.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Carburetor Gasket Set-See Ref. 977.

$14.99

$

In Stock, only 1 left!

0

125

Briggs & Stratton 692648

Carburetor
(Superseded to 790120)

$

$

Not available

127

Welch Plug (Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

130

Briggs & Stratton 691203

Valve?Throttle

$9.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Included in Carburetor Kit-See Ref. 121.

$6.49

$

In Stock, Qty 20+

0

137

Float Bowl Gasket (Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

137

Float Bowl Gasket (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

163

Briggs & Stratton 273364

Air Cleaner Gasket
(Superseded to 691894)

Note: Included in Carburetor Kit-See Ref. 121.

$4.99

$

In Stock, Qty 7

0

163

Briggs & Stratton 273364

Air Cleaner Gasket
(Superseded to 691894)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$4.99

$

In Stock, Qty 7

0

163

Briggs & Stratton 273364

Air Cleaner Gasket
(Superseded to 691894)

Note: Included in Gasket Set-See Ref. 358.

$4.99

$

In Stock, Qty 7

0

276

Bowl Washer (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

276

Bowl Washer (Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

365

Briggs & Stratton 691136

Screw
(Superseded to 691148)

$3.99

$

In Stock, only 2 left!

0

515

Briggs & Stratton 263073

Spring-Torsion
(Superseded to 691855)

$4.49

$

In Stock, only 3 left!

0

708

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Kit-See Ref. 121.

$4.99

$

Usually ships in 2-12 days

0

708

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-See Ref. 977.

$4.99

$

Usually ships in 2-12 days

0

708

Choke Shaft Seal (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$

$

Not available
