20027 (R-21 OSB) - Toro 21" Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) ENGINE BRIGGS & STRATTON MODEL 122602-0150-E1 Parts Diagram

21" Recycler Walk-Behind Mower

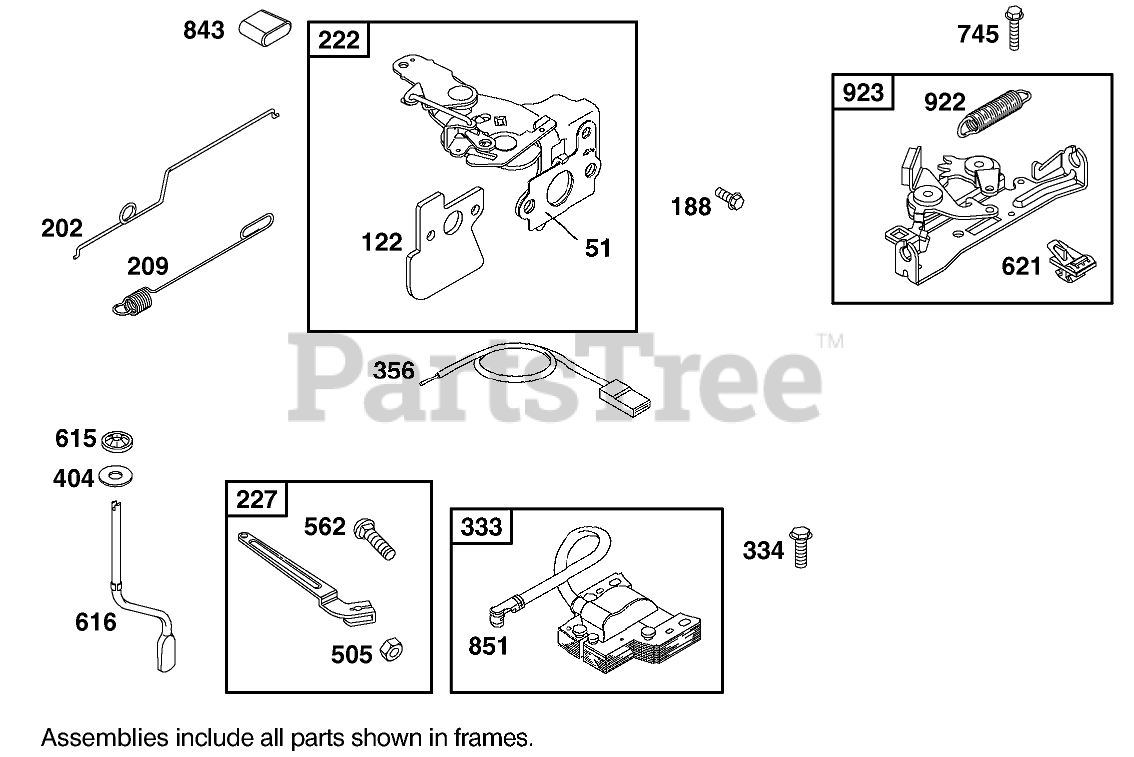

ENGINE BRIGGS & STRATTON MODEL 122602-0150-E1 Parts Diagram

  • Title

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$4.49

$

In Stock, only 3 left!

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Carburetor Kit-See Ref. 121.

$4.49

$

In Stock, only 3 left!

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Carburetor Gasket Set-See Ref. 977.

$4.49

$

In Stock, only 3 left!

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Gasket Set-See Ref. 358.

$4.49

$

In Stock, only 3 left!

0

122

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Valve Overhaul Gasket Set-See Ref. 1033.

$14.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Carburetor Gasket Set-See Ref. 977.

$14.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Gasket Set-See Ref. 358.

$14.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Carburetor Kit-See Ref. 121.

$14.99

$

In Stock, only 1 left!

0

188

Briggs & Stratton 691147

Screw

$3.99

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 691303

Link?Governor, Mechanical

$

$

Not available

209

Briggs & Stratton 263044

Governor Spring
(Superseded to 690319)

$8.49

$

In Stock, only 1 left!

0

222

Briggs & Stratton 692723

Bracket?Control
(Superseded to 697614)

$43.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 691467

Lever?Governor Control

$12.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

Screw-Sem
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 692390

Wire-Stop

$

$

Not available

404

Briggs & Stratton 67072

Washer
(Superseded to 690272)

$3.99

$

In Stock, only 1 left!

0

505

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

515

Briggs & Stratton 263073

Spring-Torsion
(Superseded to 691855)

$4.49

$

In Stock, only 3 left!

0

562

Briggs & Stratton 94852

Screw (Governor Control Lever)
(Superseded to 691119)

$4.49

$

In Stock, Qty 17

0

615

Briggs & Stratton 690340

Retainer-Shaft, Governor

$4.49

$

In Stock, Qty 10

0

616

Toro 391306

Governor Crank

$

$

Currently unavailable

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

708

Choke Shaft Seal (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

745

Briggs & Stratton 691648

Screw

$4.99

$

Usually ships in 2-12 days

0

843

Briggs & Stratton 272616

Lever Sleeve
(Superseded to 691884)

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

922

Briggs & Stratton 691831

Spring-Brake

$10.99

$

In Stock, only 2 left!

0

923

Briggs & Stratton 691994

Brake ASM
(Superseded to 796387)

$

$

Not available
