20027 (R-21 OSB) - Toro 21" Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) ENGINE BRIGGS & STRATTON MODEL 122602-0150-E1 Parts Diagram

21" Recycler Walk-Behind Mower

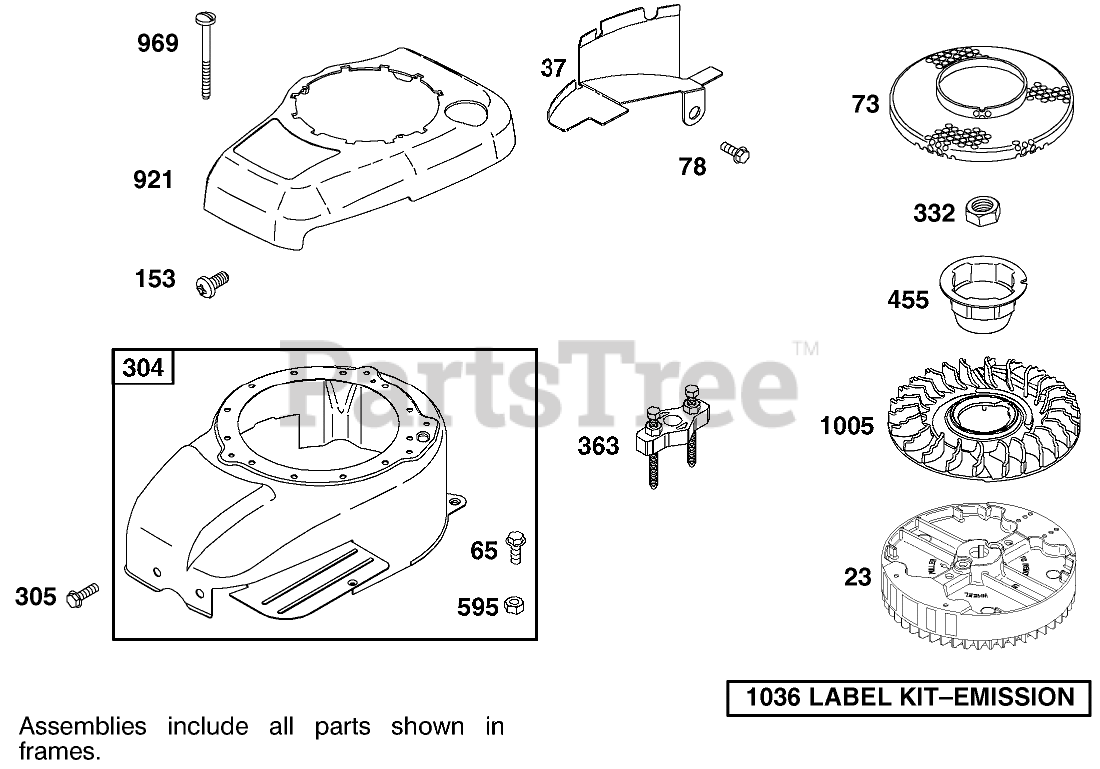

ENGINE BRIGGS & STRATTON MODEL 122602-0150-E1 Parts Diagram

  • Title

23

Briggs & Stratton 692452

Flywheel
(Superseded to 697610)

$199.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 224511

Flywheel Guard
(Superseded to 793756)

$10.99

$

In Stock, only 4 left!

0

65

Briggs & Stratton 94904

Screw-Hex
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

73

Briggs & Stratton 225133

Rod, Brake
(Superseded to 691222)

$41.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 691108

Screw

$3.49

$

In Stock, Qty 20+

0

153

Briggs & Stratton 692438

Screw (Rewind Guard)

$3.49

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 499677

Housing?Blower

$

$

Not available

305

Briggs & Stratton 691108

Screw

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 94877

Nut-Flywheel
(Superseded to 690662)

$5.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 691219

Cup-Flywheel
(Superseded to 695161)

$37.99

$

Usually ships in 2-12 days

0

515

Briggs & Stratton 263073

Spring-Torsion
(Superseded to 691855)

$4.49

$

In Stock, only 3 left!

0

595

Briggs & Stratton 94908

Nut-Hex.
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

708

Choke Shaft Seal (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$

$

Not available

921

Briggs & Stratton 692699

Cover?Housing, Blower

$55.99

$

Usually ships in 2-12 days

0

969

Briggs & Stratton 691138

Screw

$3.99

$

In Stock, Qty 18

0

1005

Briggs & Stratton 691346

Fan?Flywheel

$26.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 499343

Emissions Label

$4.49

$

Usually ships in 2-12 days

0
