20027 (R-21 OSB) - Toro 21" Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE BRIGGS & STRATTON MODEL 122602-0150-E1 Parts Diagram

21" Recycler Walk-Behind Mower

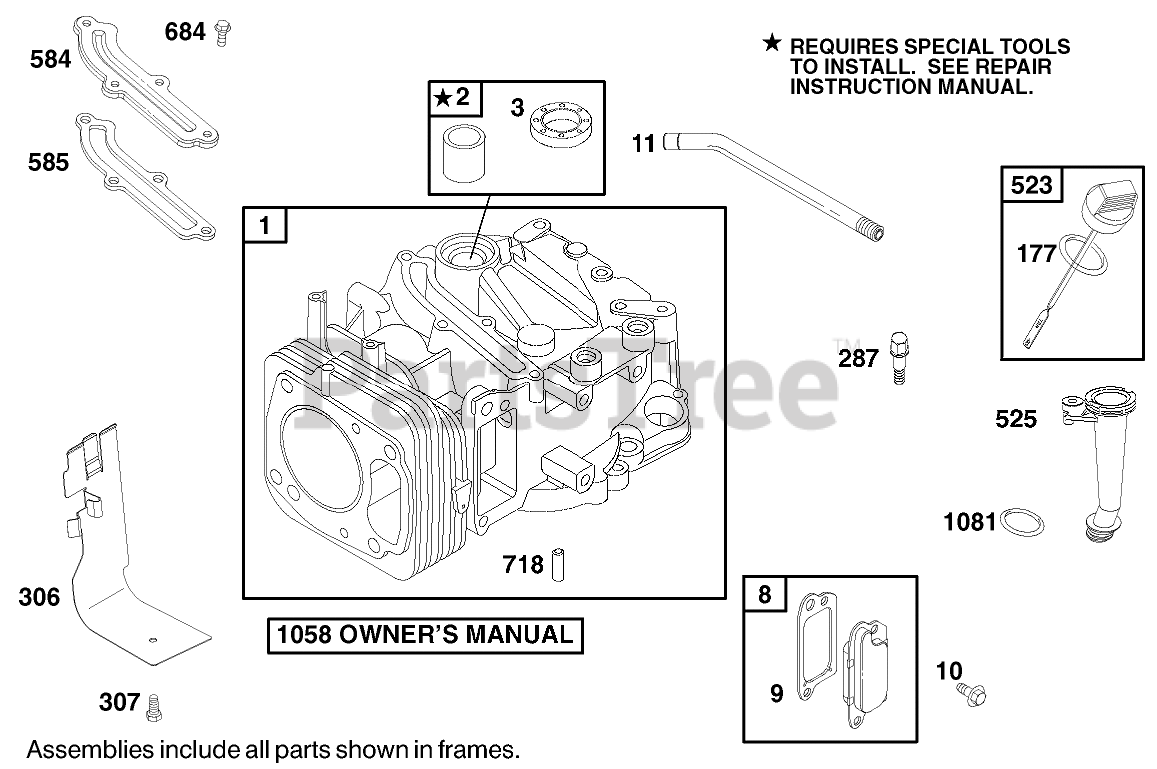

ENGINE BRIGGS & STRATTON MODEL 122602-0150-E1 Parts Diagram

  • Title

1

Toro 692781

Cylinder Assembly

$

$

Currently unavailable

2

Briggs & Stratton 399269

Bushing and Seal Kit
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Gasket Set-See Ref. 358.

$5.49

$

In Stock, Qty 14

0

8

Briggs & Stratton 495786

Breather ASM
(Superseded to 590395)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1095.

$5.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Gasket Set-See Ref. 358.

$5.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 691125

Screw

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 691260

Tube?Breather
(Superseded to 691781)

$10.99

$

Usually ships in 2-12 days

0

177

Briggs & Stratton 280393

O-Ring Seal
(Superseded to 691031)

Note: Included in Gasket Set-See Ref. 358.

$5.49

$

In Stock, Qty 20+

0

287

Briggs & Stratton 690940

Screw

$3.99

$

In Stock, Qty 5

0

306

Briggs & Stratton 691232

Shield?Cylinder

$16.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 690345

Screw

$4.99

$

Usually ships in 2-12 days

0

515

Briggs & Stratton 263073

Spring-Torsion
(Superseded to 691855)

$4.49

$

In Stock, only 2 left!

0

523

Briggs & Stratton 493601

Dipstick
(Superseded to 692953)

$9.49

$

Usually ships in 2-12 days

0

525

Briggs & Stratton 495265

Tube-Dipstick

$

$

Not available

584

Briggs & Stratton 692342

Cover?Breather Passage
(Superseded to 697734)

$9.49

$

Usually ships in 2-12 days

0

585

Briggs & Stratton 272238

Gasket-Breather
(Superseded to 691879)

Note: Included in Gasket Set-See Ref. 358.

$6.99

$

In Stock, only 1 left!

0

684

Briggs & Stratton 690345

Screw

$4.99

$

Usually ships in 2-12 days

0

708

Choke Shaft Seal (Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

718

Briggs & Stratton 230192

Pin-Dowel
(Superseded to 690959)

$6.99

$

In Stock, only 1 left!

0

1058

Toro 273323

Owner-s Manual

$

$

Currently unavailable

1081

Briggs & Stratton 280966

O-Ring Seal
(Superseded to 692296)

Note: Included in Gasket Set-See Ref. 358.

$4.99

$

In Stock, only 2 left!

0
