20027 (R-21 OSB) - Toro 21" Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) ENGINE BRIGGS & STRATTON MODEL 122602-0150-E1 Parts Diagram

21" Recycler Walk-Behind Mower

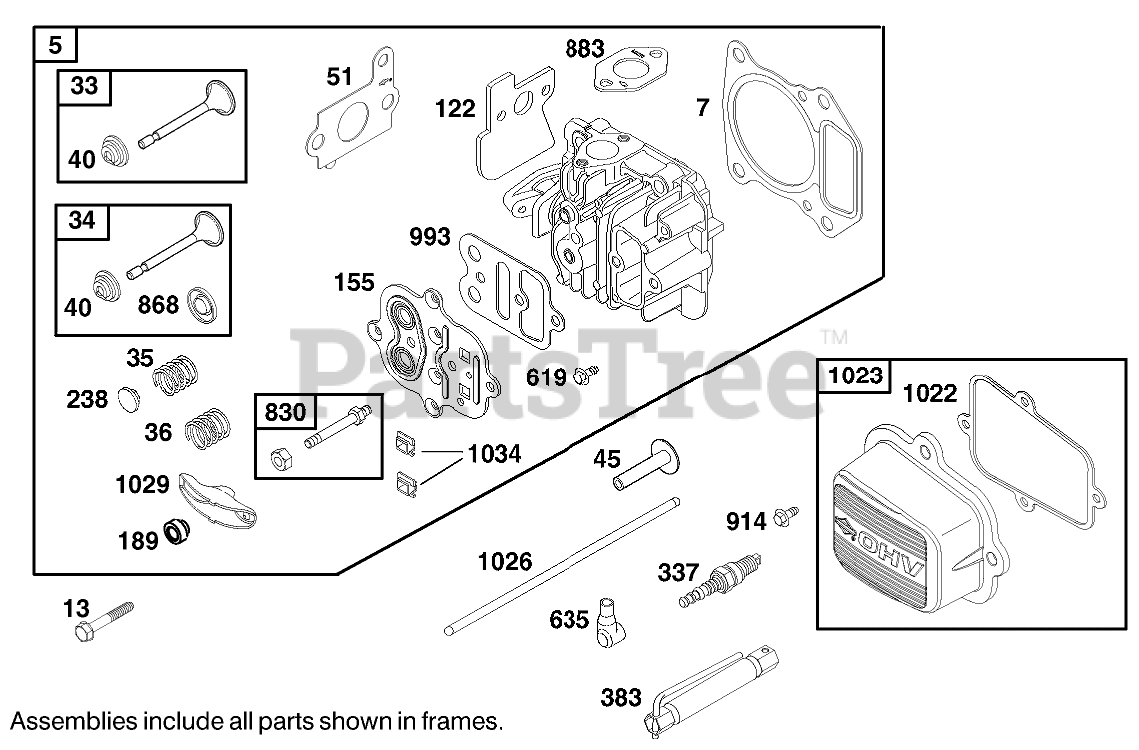

ENGINE BRIGGS & STRATTON MODEL 122602-0150-E1 Parts Diagram

  • Title

5

Toro 692801

Cylinder Head

$

$

Currently unavailable

7

Briggs & Stratton 273240

Cylinder Head Gasket
(Superseded to 697230)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1095.

$9.99

$

In Stock, Qty 7

0

7

Briggs & Stratton 273240

Cylinder Head Gasket
(Superseded to 697230)

Note: Included in Gasket Set-See Ref. 358.

$9.99

$

In Stock, Qty 7

0

13

Briggs & Stratton 691137

Screw
(Superseded to 592244)

$3.49

$

In Stock, Qty 20+

0

33

Briggs & Stratton 499642

Valve-Exhaust

$35.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 499641

Valve-Intake
(Superseded to 795443)

$27.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 691304

Spring-Valve

$5.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 263149

Valve Spring (Exhaust)
(Superseded to 691304)

$5.99

$

In Stock, only 2 left!

0

40

Briggs & Stratton 93312

Gear-Cam
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 262679

Tappet-Valve
(Superseded to 690977)

$7.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 692668

Gasket-Intake

$4.49

$

In Stock, only 3 left!

0

122

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Valve Overhaul Gasket Set-See Ref. 1095.

$14.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Gasket Set-See Ref. 358.

$14.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Carburetor Kit-See Ref. 121.

$14.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Carburetor Gasket Set-See Ref. 977.

$14.99

$

In Stock, only 1 left!

0

155

Briggs & Stratton 691231

Cylinder Head Plate
(Superseded to 696268)

$

$

Not available

189

Briggs & Stratton 691295

Rocker Arm Ball
(Superseded to 694543)

$

$

Not available

238

Briggs & Stratton 691300

Cap-Valve

$9.49

$

In Stock, Qty 9

0

515

Briggs & Stratton 263073

Spring-Torsion
(Superseded to 691855)

$4.49

$

In Stock, only 3 left!

0

619

Briggs & Stratton 691108

Screw

$3.49

$

In Stock, Qty 20+

0

708

Choke Shaft Seal (Sold in Kit Only)

Note: Included in Carburetor Kit-See Ref. 121.

$

$

Not available

914

Briggs & Stratton 691127

Screw

$4.49

$

In Stock, Qty 13

0

337

Briggs & Stratton 499608

Sparkplug
(Superseded to 692051)

$3.49

$

Usually ships in 2-12 days

0

383

Briggs & Stratton 19374

Wrench-Spark Plug
(Superseded to 19576S)

$5.99

$

In Stock, only 1 left!

0

635

Toro 662558

Sparkplug Boot

$

$

Currently unavailable

830

Briggs & Stratton 499756

Rocker Arm Stud
(Superseded to 694543)

$

$

Not available

868

Briggs & Stratton 498592

Valve Seal
(Superseded to 795440)

Note: Included in Gasket Set-See Ref. 358.

$13.99

$

In Stock, Qty 9

0

868

Briggs & Stratton 498592

Valve Seal
(Superseded to 795440)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1095.

$13.99

$

In Stock, Qty 9

0

883

Briggs & Stratton 273348

Exhaust Gasket
(Superseded to 691893)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1095.

$4.49

$

In Stock, Qty 20+

0

883

Briggs & Stratton 273348

Exhaust Gasket
(Superseded to 691893)

Note: Included in Gasket Set-See Ref. 358.

$4.49

$

In Stock, Qty 20+

0

993

Briggs & Stratton 691892

Plate Gasket
(Superseded to 694088)

Note: Included in Gasket Set-See Ref. 358.

$8.49

$

In Stock, Qty 16

0

993

Briggs & Stratton 691892

Plate Gasket
(Superseded to 694088)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1095.

$8.49

$

In Stock, Qty 16

0

1022

Briggs & Stratton 272198

Gasket
(Superseded to 692232)

Note: Included in Gasket Set-See Ref. 358.

$5.99

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 272198

Gasket
(Superseded to 692232)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1095.

$5.99

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 692694

Cover?Rocker

$35.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 498597

Push Rod
(Superseded to 795444)

$11.99

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 691230

Arm-Rocker

$9.49

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 691343

Guide-Rod, Push

$9.99

$

In Stock, only 2 left!

0
