20023 (R-21 SB) - Toro 21" Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) REAR BAGGING DISCHARGE CHUTE ASSEMBLY Parts Diagram

21" Recycler Walk-Behind Mower

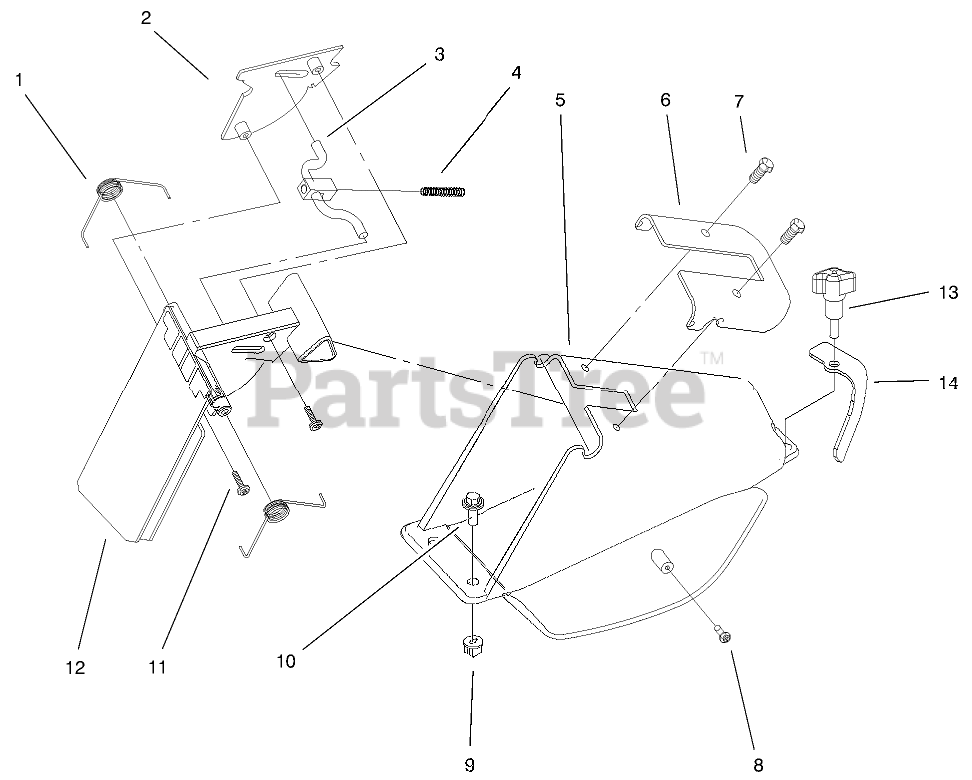

REAR BAGGING DISCHARGE CHUTE ASSEMBLY Parts Diagram

  • Title
1

Toro 88-1090

RH Door Spring (Only On: 20023)

$12.99

$

In Stock, only 2 left!

0

2

Toro 33-0441

Door Cover (Only On: 20023)

$14.99

$

Usually ships in 3-6 days

0

3

Toro 88-1800

Door Latch (Only On: 20023)

$

$

Not available

4

Toro 33-0450

Latch Comp Spring (Only On: 20023)

$

$

Not available

5

Toro 93-0263

Chute-Discharge (Only On: 20023)
(Superseded to 94-1683)

$

$

Not available

6

Toro 93-0267-03

Plate-Discharg Chute (Only On: 20023)
(Superseded to 98-2695)

$

$

Not available

7

Toro 46-8090

Screw-Plastite (Only On: 20023)

$

$

Not available

8

Toro 32144-111

Screw-Plask (Only On: 20023)

$1.49

$

In Stock, Qty 20+

0

9

Toro 93-0242

Grommet (Only On: 20023)
(Superseded to 94-1610)

$1.49

$

In Stock, Qty 20+

0

10

Toro 46-6811

Screw/Washer (Only On: 20023)

$3.49

$

In Stock, only 3 left!

0

11

Toro 32144-32

Screw (Only On: 20023)

$2.99

$

Usually ships in 3-6 days

0

12

Toro 93-0264

Door-Discharge (Only On: 20023)

$29.99

$

Usually ships in 3-6 days

0

13

Toro 100-1590

Knob (Only On: 20023)

$3.99

$

In Stock, only 2 left!

0

14

Toro 100-1589-03

Clamp-Door (Only On: 20023)

$18.99

$

Usually ships in 3-6 days

0
