20023 C (R-21 S) - Toro 21" Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) GRASS BAG ASSEMBLY PART NO. 98-2699 Parts Diagram

21" Recycler Walk-Behind Mower

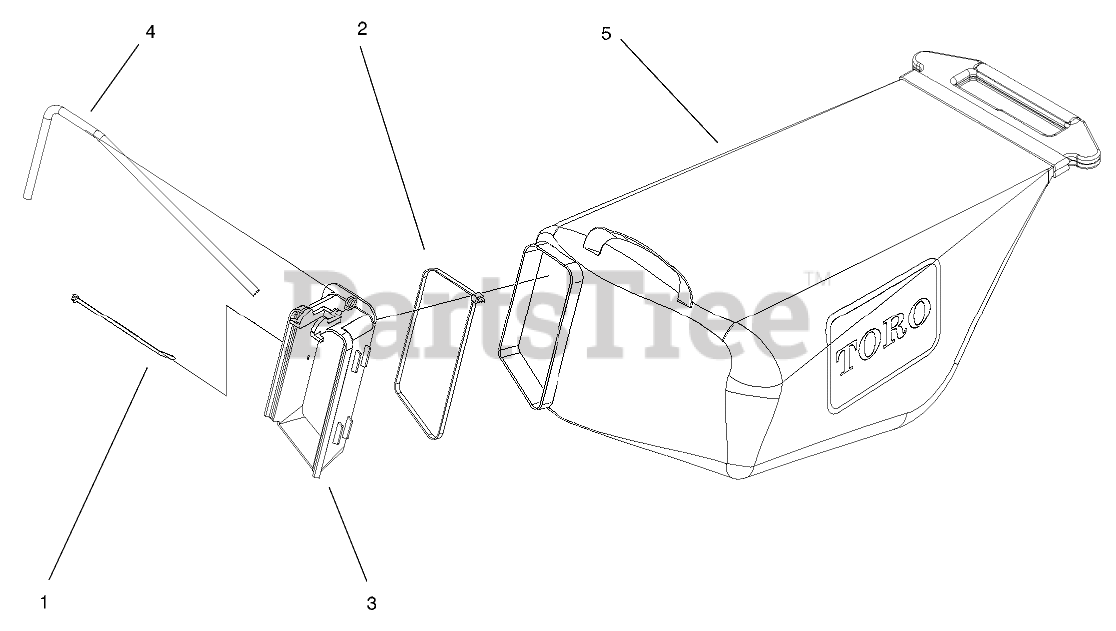

GRASS BAG ASSEMBLY PART NO. 98-2699 Parts Diagram

  • Title
1

Toro 614249

Tie-Strap (only on: 20023, 20023c)

$1.49

$

In Stock, Qty 6

0

2

Toro 614700

Tie Strap (only on: 20023, 20023c)

$7.49

$

Usually ships in 3-6 days

0

3

Chute-Bag,Inlet (only on: 20023, 20023c)

Note: Not serviced

$

$

Not available

4

Toro 98-2693-03

Wire-Support, Bag (only on: 20023, 20023c)

$

$

Not available

5

Bag-Grass,Ts (only on: 20023, 20023c)

Note: Not serviced

$

$

Not available

Toro 98-2699

Grass Bag ASM (only on: 20023, 20023c)

Note: Not illustrated

$

$

Not available
