20022 (R-21 S) - Toro 21" Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) QUANTUM ENGINE ASSEMBLY Parts Diagram

21" Recycler Walk-Behind Mower

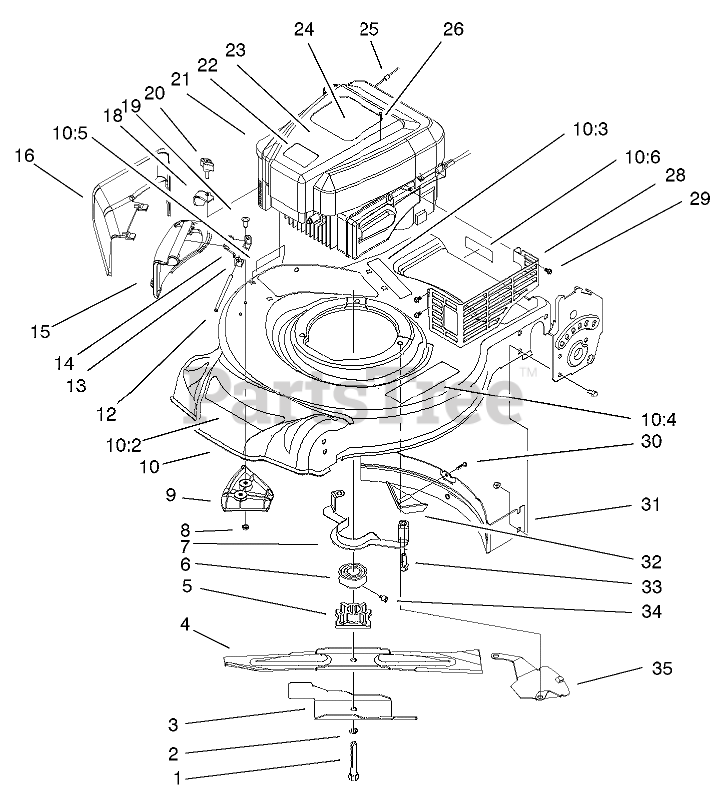

QUANTUM ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 95-1748

SCREW-BLADE
(Superseded to 105-8629)

$20.99

$

In Stock, Qty 5

0

2

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

3

Toro 93-0219-03

ACCELERATOR

$41.99

$

In Stock, only 1 left!

0

4

Toro 93-0241-03

BLADE-STEEL DECK

$45.99

$

In Stock, only 1 left!

0

5

Toro 104-1008

RETAINER-BLADE

$89.99

$

Usually ships in 3-6 days

0

6

Toro 95-1878

PULLEY

$63.99

$

In Stock, only 1 left!

0

7

Toro 92-1024-03

GUIDE-BELT

$

$

Not available

8

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, only 2 left!

0

9

Toro 99-6349

BAFFLE

$24.99

$

Usually ships in 3-6 days

0

10

Toro 99-5236

Housing Sp Steel (only on: 20022, 20023)

$478.99

$

Usually ships in 3-6 days

0

10

Toro 104-7638

Housing (only on: 20023c)

$535.99

$

Usually ships in 3-6 days

0

10:2

Toro 99-6011

DECAL - DECK

$19.99

$

Usually ships in 3-6 days

0

10:3

Toro 99-6018

Decal-Warning (only on: 20022, 20023)

$2.99

$

Usually ships in 3-6 days

0

10:3

Toro 104-7629

Decal-Warning (only on: 20023c)

$

$

Not available

10:4

Toro 104-7627

Decal-Warning (only on: 20023c)

$

$

Not available

10:4

Toro 93-0248

Decal-Warning (only on: 20022, 20023)
(Superseded to 104-8589)

$7.49

$

Usually ships in 3-6 days

0

10:5

Toro 56-6270

Danger Decal(Fr/E)(only on: 20023c)

$

$

Not available

10:5

Toro 43-8480

Decal-Danger (only on: 20022, 20023)

$6.99

$

In Stock, Qty 6

0

10:6

Toro 104-7628

Decal-Manual,Toro (only on: 20023c)

$

$

Not available

12

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 14

0

13

Toro 99-5292

BRACKET-COVER
(Superseded to 119-7079)

$12.99

$

In Stock, only 1 left!

0

14

Toro 99-5293

SPRING-TORSION

$10.99

$

In Stock, only 4 left!

0

15

Toro 99-5294

COVER-SIDE

$21.99

$

Usually ships in 3-6 days

0

16

Toro 99-5295

CHUTE-SIDE

$15.99

$

In Stock, only 2 left!

0

18

Toro 100-1589-03

Clamp-Door (only on: 20022)

$18.99

$

Usually ships in 3-6 days

0

19

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

20

Toro 98-8332

Knob (only on: 20022)

$5.49

$

In Stock, Qty 16

0

21

Engine-Briggs & Stratton Model 12H802-1776-B1

Note: Not serviced

$

$

Not available

22

Toro 98-3206

Decal

$2.49

$

Usually ships in 3-6 days

0

23

Toro 93-0243

SHROUD-ENGINE

$59.99

$

Usually ships in 3-6 days

0

24

Toro 99-6013

DECAL - RECOIL

$35.99

$

In Stock, only 1 left!

0

25

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

26

Toro 32144-121

SCREW-PPH
(Superseded to 32144-88)

$1.99

$

In Stock, only 2 left!

0

28

Toro 104-7577-03

SHIELD-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

29

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

30

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

31

Toro 93-0223-03

BAFFLE-REAR

$29.99

$

In Stock, only 1 left!

0

32

Toro 93-0217

KICKER-REAR

$

$

Not available

33

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

34

Toro 104-0214

SCREW-SET
(Superseded to 105-8875)

$11.99

$

Usually ships in 3-6 days

0

35

Toro 93-4196-03

SHIELD-GRASS

$15.99

$

In Stock, only 3 left!

0
