20021 (R-21 S1B) - Toro 21" Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) HOUSING & HANDLE BRACKET ASSEMBLY Parts Diagram

21" Recycler Walk-Behind Mower

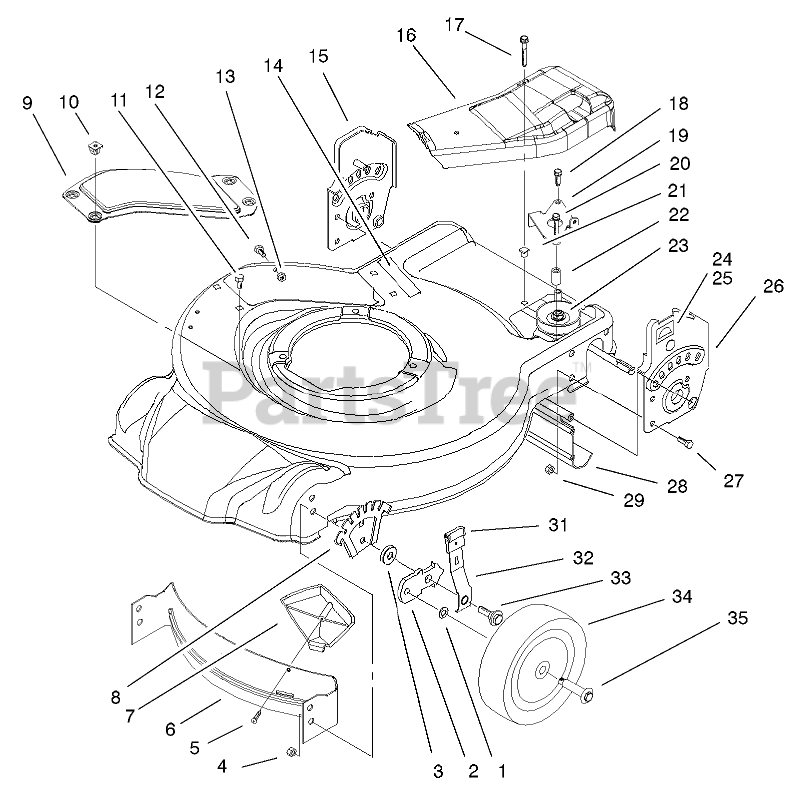

HOUSING & HANDLE BRACKET ASSEMBLY Parts Diagram

  • Title
1

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

2

Toro 95-7403-03

BRACKET-HEIGHT ADJUSTMENT, WHEEL

$

$

Not available

3

Toro 92-4890

WASHER

$8.99

$

In Stock, only 2 left!

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

6

Toro 93-0222-03

BAFFLE - FRONT

$29.99

$

Usually ships in 3-6 days

0

7

Toro 93-0216

KICKER-FRONT

$

$

Not available

8

Toro 92-4881-03

PLATE-HEIGHT, ADJUSTMENT

$29.99

$

Usually ships in 3-6 days

0

9

Toro 93-0230-01

Cover-Recycling (only on: 20020)
(Superseded to 16-9269)

$

$

Not available

10

Toro 93-0242

Grommet (only on: 20020)
(Superseded to 94-1610)

$1.49

$

In Stock, Qty 20+

0

11

Toro 32144-4

Screw-HH (only on: 20020)

$1.49

$

In Stock, Qty 20+

0

12

Toro 32105-27

Screw (only on: 20020)

$1.49

$

Usually ships in 3-6 days

0

13

Toro 3296-2

Nut-Lock (only on: 20020)

$2.49

$

In Stock, Qty 20+

0

14

Toro 99-6018

DECAL-WARNING

$2.99

$

Usually ships in 3-6 days

0

15

Toro 93-0234

RH HANDLE BRACKET ASM

$23.99

$

Usually ships in 3-6 days

0

16

Toro 93-0209

COVER-TRANSMISSION

$

$

Not available

17

Toro 32144-119

SCREW-PTH

$

$

Not available

18

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

19

Toro 93-0228-03

GUIDE-TRANSMISSION

$

$

Not available

20

Toro 92-1616

SCREW-HWHTF

$3.49

$

In Stock, only 1 left!

0

21

Toro 605120

NUT-CLIP

$4.49

$

In Stock, Qty 7

0

22

Toro 614673

BUSHING-PLATE, ACTUATOR

$12.99

$

In Stock, only 2 left!

0

23

Toro 104-7678

GEAR CASE ASM

$415.99

$

Usually ships in 3-6 days

0

24

Toro 92-2915

DECAL-HOC, RH

$6.49

$

Usually ships in 3-6 days

0

25

Toro 92-2914

DECAL-HOC, LH

$

$

Not available

26

Toro 93-0233

LH HANDLE BRACKET ASM

$

$

Not available

27

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 92-8647

SHIELD-TRAILING

$41.99

$

In Stock, only 1 left!

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$14.99

$

In Stock, only 2 left!

0

32

Toro 614687

ARM-FRONT SPRING

$21.99

$

In Stock, only 3 left!

0

33

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

34

Toro 92-9591

WHEEL ASM

$27.99

$

In Stock, only 4 left!

0

35

Toro 614672

BOLT-SHOULDER

$2.99

$

In Stock, only 4 left!

0
