20021 (R-21 S1B) - Toro 21" Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) HANDLE ASSEMBLY Parts Diagram

21" Recycler Walk-Behind Mower

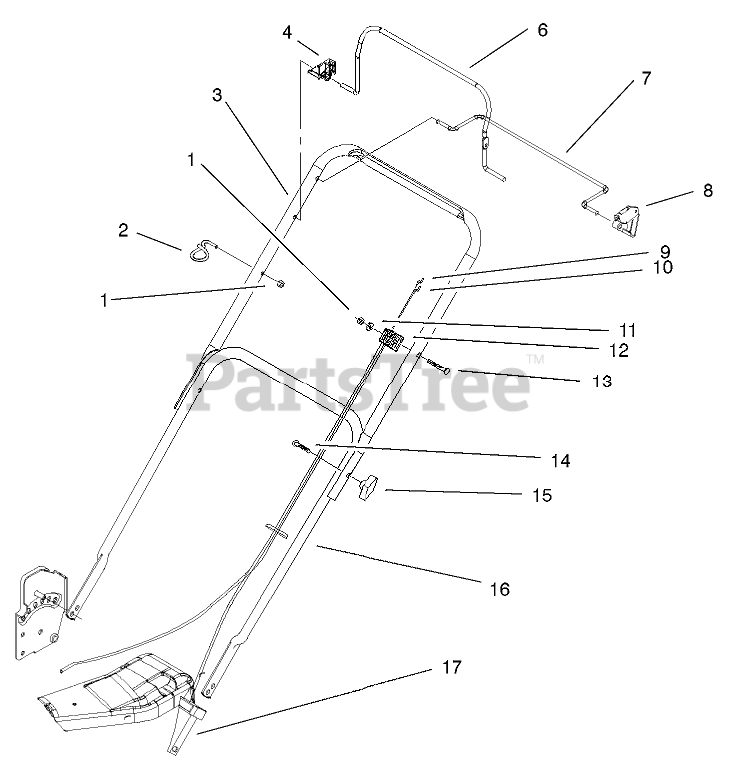

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

2

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

3

Toro 99-1569-05

HANDLE-UPPER

$214.99

$

Usually ships in 3-6 days

0

4

Toro 94-6097

STOP

$10.99

$

Usually ships in 3-6 days

0

6

Toro 99-1570-03

BAIL-BRAKE

$

$

Not available

7

Toro 99-1571-03

BAIL-TRACTION

$

$

Not available

8

Toro 92-5412

STOP-PIVOT
(Superseded to 107-0757)

$5.49

$

In Stock, only 1 left!

0

9

Toro 99-1586

CABLE-TRACTION

$27.99

$

In Stock, only 1 left!

0

10

Toro 99-1587

CABLE-BRAKE

$41.99

$

In Stock, only 1 left!

0

11

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 94-6096

ANCHOR - CABLE

$8.49

$

In Stock, only 1 left!

0

13

Toro 92-2269

SCREW-HANDLE

$6.49

$

Usually ships in 3-6 days

0

14

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 5

0

15

Toro 98-7134

KNOB-HANDLE

$2.99

$

In Stock, Qty 15

0

16

Toro 99-6021-05

HANDLE-LOWER

$

$

Not available

17

Toro 93-7380

ANCHOR-CABLE

$14.99

$

In Stock, only 1 left!

0
