20021 (R-21 S1B) - Toro 21" Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) DISCHARGE CHUTE ASSEMBLY (MODEL 20021 ONLY) Parts Diagram

21" Recycler Walk-Behind Mower

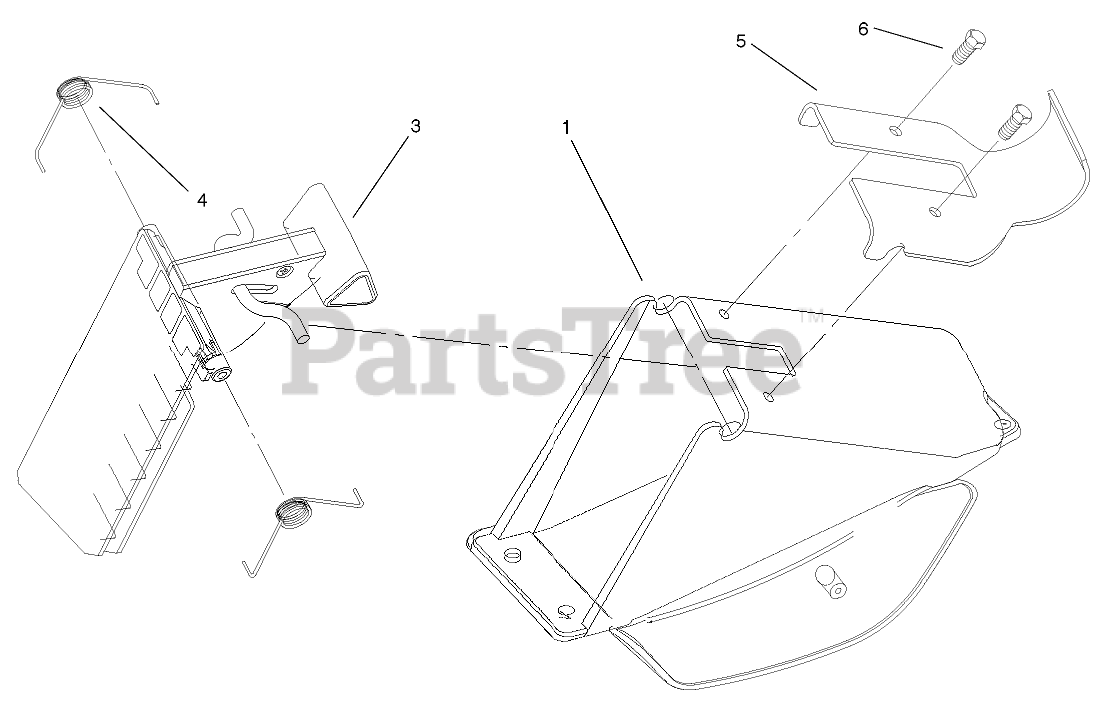

DISCHARGE CHUTE ASSEMBLY (MODEL 20021 ONLY) Parts Diagram

  • Title
1

Toro 93-0263

CHUTE - DISCHARGE
(Superseded to 94-1683)

$

$

Not available

3

Toro 93-0273

ASM - DISCHARGE DOOR

$

$

Not available

4

Toro 88-1090

SPRING-DOOR, RH

$12.99

$

In Stock, only 2 left!

0

5

Toro 100-1190-03

Plate-Discharge Chute
(Superseded to 98-2695)

$

$

Not available

6

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

Toro 93-0274

ASM - DISCHARGE CHUTE

Note: Not illustrated

$210.99

$

Usually ships in 3-6 days

0
