20021 (R-21 S1B) - Toro 21" Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) ENGINE BRIGGS & STRATTON MODEL 12H802-1767-E1 Parts Diagram

21" Recycler Walk-Behind Mower

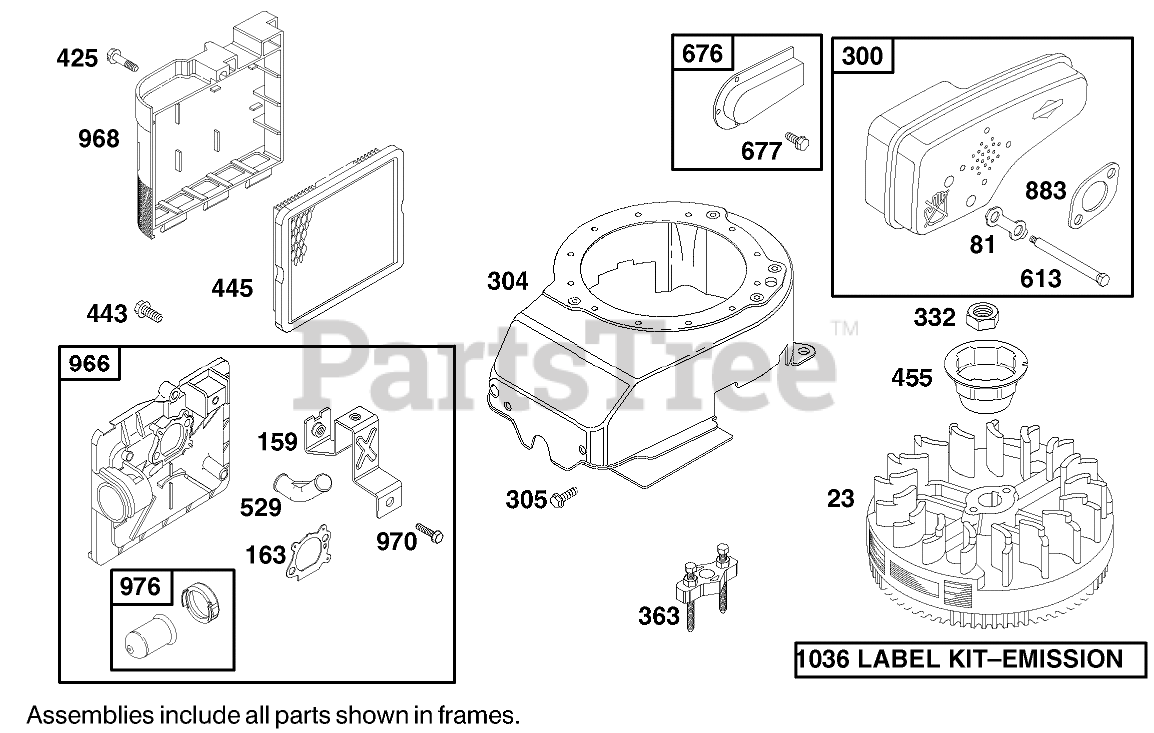

ENGINE BRIGGS & STRATTON MODEL 12H802-1767-E1 Parts Diagram

  • Title

23

Toro 693821

Flywheel

$

$

Currently unavailable

81

Briggs & Stratton 223664

Lock-Muffler Screw
(Superseded to 691740)

$5.49

$

In Stock, Qty 6

0

159

Briggs & Stratton 224815

Strap-Bracket
(Superseded to 795259)

$32.99

$

In Stock, only 4 left!

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Gasket Set-See Ref. 358.

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Kit-See Ref. 121.

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Gasket Set-See Ref. 977.

$3.49

$

In Stock, Qty 20+

0

300

Briggs & Stratton 497838

Muffler-Exhaust
(Superseded to 692038)

$29.99

$

In Stock, only 1 left!

0

304

Briggs & Stratton 493293

Housing-Blower
(Superseded to 795071)

$102.99

$

In Stock, only 2 left!

0

305

Briggs & Stratton 94744

Screw-Hex
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 92284

Nut
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

425

Briggs & Stratton 94872

Screw(A/C Cover)
(Superseded to 690670)

$5.99

$

In Stock, only 4 left!

0

443

Briggs & Stratton 94873

Screw-Hex.
(Superseded to 692523)

$7.49

$

In Stock, only 2 left!

0

445

Briggs & Stratton 491588

Filter-Air Cleaner, Cartridge
(Superseded to 491588S)

$6.49

$

In Stock, Qty 20+

0

455

Briggs & Stratton 691219

Cup-Flywheel
(Superseded to 695161)

$37.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 281299

Grommet
(Superseded to 691923)

$9.49

$

In Stock, only 1 left!

0

613

Briggs & Stratton 94231

Screw-Shoulder
(Superseded to 691340)

$4.99

$

In Stock, Qty 7

0

676

Briggs & Stratton 493871

Deflector-Muffler

$14.99

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 94896

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

883

Briggs & Stratton 272253

Gasket-Exhaust
(Superseded to 691881)

Note: Included in Gasket Set-See Ref. 358.

$8.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 272253

Gasket-Exhaust
(Superseded to 691881)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1095.

$8.99

$

Usually ships in 2-12 days

0

966

Briggs & Stratton 496116

Base-Primer, Air Cleaner
(Superseded to 795259)

$32.99

$

In Stock, only 4 left!

0

968

Briggs & Stratton 281340

Air Cleaner Cover
(Superseded to 692298)

$27.99

$

In Stock, only 1 left!

0

970

Briggs & Stratton 94749

Screw-Hex.
(Superseded to 691669)

$3.99

$

In Stock, only 1 left!

0

976

Briggs & Stratton 496115

CarburetorPrimer
(Superseded to 694395)

$4.49

$

In Stock, Qty 20+

0

1036

Briggs & Stratton 499341

Emissions Label

$3.49

$

In Stock, only 1 left!

0
