20019 - Toro 22" Recycler Walk-Behind Mower (SN: 230000001 - 230999999) (2003) LOW WHEEL REAR AXLE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

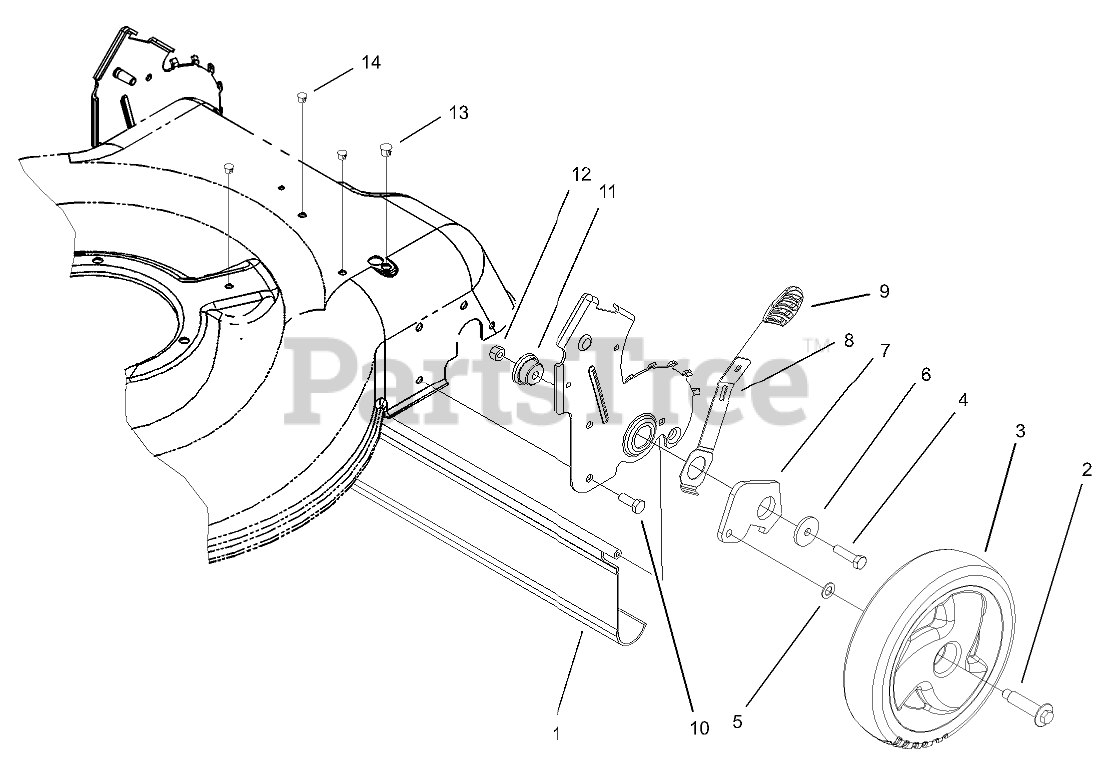

LOW WHEEL REAR AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 105-1843

Shield-Trailing
(Superseded to 114-1585)

$25.99

$

In Stock, only 4 left!

0

2

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 6

0

3

Toro 105-1814

WHEEL ASM (59505)

$33.99

$

In Stock, only 2 left!

0

4

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

5

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

6

Toro 105-3048

Washer-Flat

$1.49

$

In Stock, Qty 12

0

7

Toro 105-1819

Arm-Pivot, Rear (LH)

$12.99

$

In Stock, only 4 left!

0

8

Toro 105-1809

Arm-Spring

$11.99

$

In Stock, only 2 left!

0

9

Toro 105-3042

Knob-Lever, HOC

$4.49

$

In Stock, Qty 5

0

10

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 105-1818

Bushing-Mount, HOC

$5.49

$

In Stock, Qty 9

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 104-9368

Plug-Dome

$0.99

$

In Stock, only 4 left!

0

14

Toro 104-9373

Plug-Dome

$1.99

$

In Stock, only 3 left!

0
