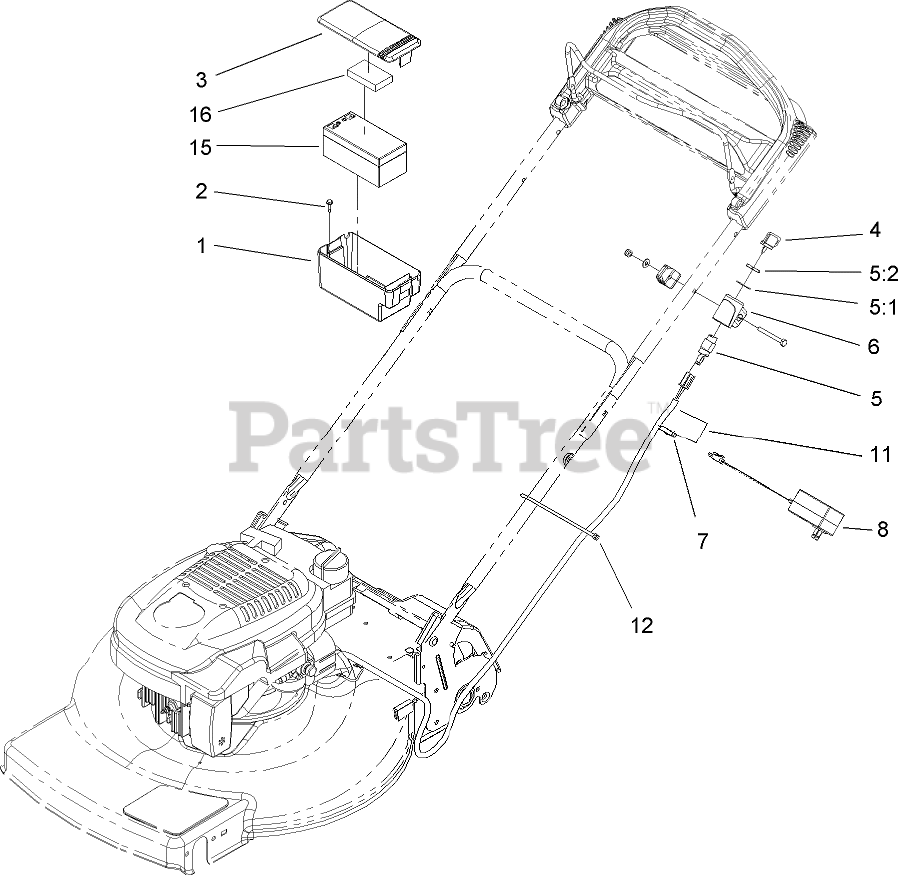

20018 - Toro 22" Recycler Walk-Behind Mower (SN: 230000001 - 230999999) (2003) ELECTRICAL START ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

ELECTRICAL START ASSEMBLY Parts Diagram

  • Title

1

Toro 106-3996

Box-Battery
(Superseded to 108-4844)

$23.99

$

Usually ships in 3-6 days

0

2

Toro 104-7648

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

3

Toro 106-3997

Cover-Battery
(Superseded to 108-4844)

$23.99

$

Usually ships in 3-6 days

0

4

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

5

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, Qty 7

0

5:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

5:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

6

Toro 104-8692

Mount-Switch
(Superseded to 108-9760)

$5.99

$

In Stock, Qty 11

0

7

Toro 105-8627

Harness-Wire

$

$

Not available

8

Toro 104-7401

CHARGER-12 VOLT
(Superseded to 136-9126)

$41.99

$

In Stock, Qty 18

0

11

Toro 104-7953

DECAL-WARNING

$9.99

$

Usually ships in 3-6 days

0

12

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

15

Toro 106-3995

BATTERY-12 VOLT (WET)

$96.99

$

Usually ships in 3-6 days

0

16

Toro 106-3994

Foam-Battery

$1.99

$

In Stock, only 2 left!

0
