20018 - Toro 22" Recycler Walk-Behind Mower (SN: 220300001 - 220999999) (2002) RECOIL STARTER ASSEMBLY NO. 590702 (OPTIONAL) TECUMSEH MODEL LEV120361561B Parts Diagram

22" Recycler Walk-Behind Mower

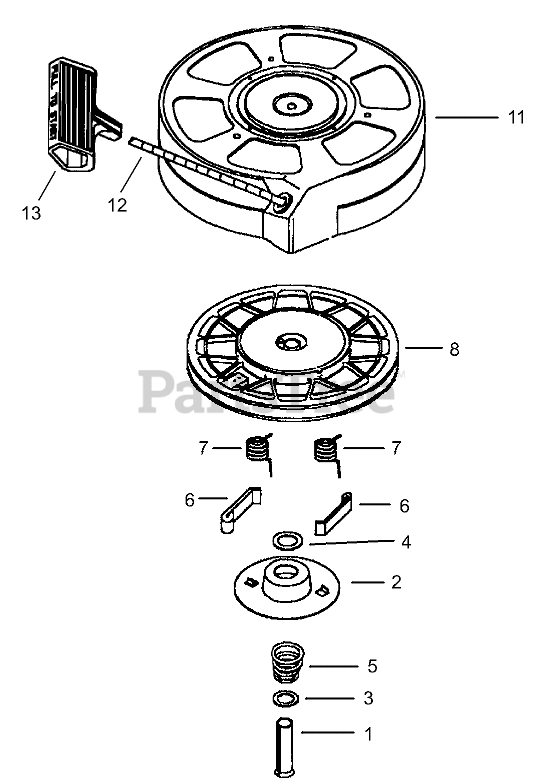

RECOIL STARTER ASSEMBLY NO. 590702 (OPTIONAL) TECUMSEH MODEL LEV120361561B Parts Diagram

  • Title

Tecumseh 590702

Starter-Recoil
(Superseded to 590739)

Note: Original Tecumseh Part

$62.99

$

Usually ships in 3-12 days

0

1

Tecumseh 590599A

Spring Pin (Incl. 4)

Note: Original Tecumseh Part

$5.49

$

In Stock, only 2 left!

0

2

Tecumseh 590600

Washer

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

3

Tecumseh 590696

Retainer

Note: Original Tecumseh Part

$7.49

$

In Stock, only 1 left!

0

4

Tecumseh 590601

Washer

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

5

Tecumseh 590697

Spring-Brake

Note: Original Tecumseh Part

$3.99

$

Usually ships in 3-12 days

0

6

Tecumseh 590698

Dog-Starter

Note: Original Tecumseh Part

$6.99

$

In Stock, only 4 left!

0

7

Tecumseh 590699

Spring-Dog

Note: Original Tecumseh Part

$7.49

$

In Stock, only 2 left!

0

8

Tecumseh 590700

Pulley and Rewind Spring ASM

Note: Original Tecumseh Part

$26.99

$

Usually ships in 3-12 days

0

11

Tecumseh 590703A

Starter Housing ASM

Note: Original Tecumseh Part

$24.99

$

In Stock, only 2 left!

0

12

Tecumseh 590535

Rope-Starter (98 cut to length)

Note: Original Tecumseh Part

$9.49

$

In Stock, Qty 13

0

13

Tecumseh 590701

Handle-Starter (STD)

Note: Original Tecumseh Part

$6.49

$

In Stock, only 2 left!

0
