20018 - Toro 22" Recycler Walk-Behind Mower (SN: 220000001 - 220300000) (2002) HANDLE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

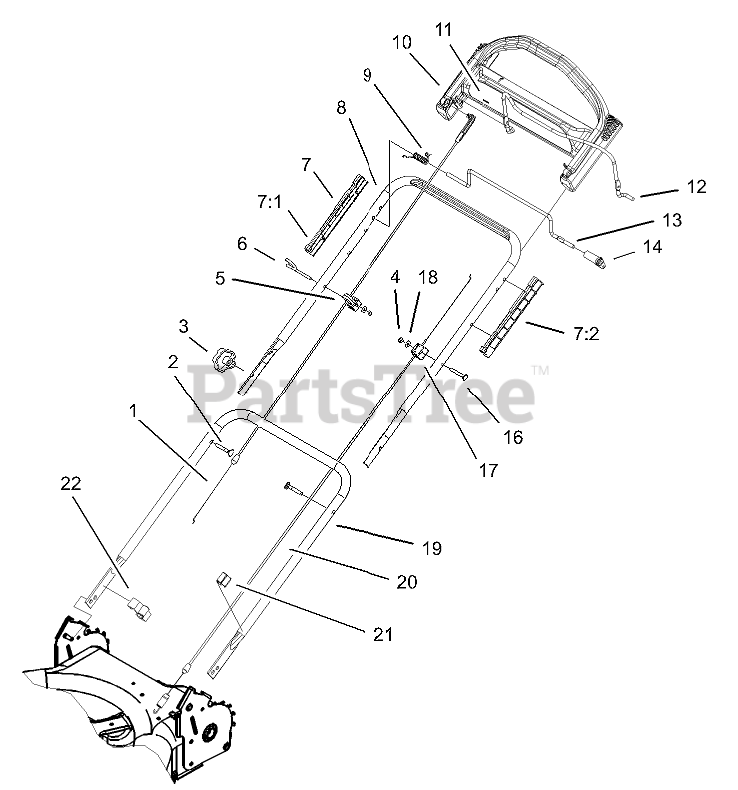

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8676

Cable-Brake

$34.99

$

In Stock, only 2 left!

0

2

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 5

0

3

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, only 2 left!

0

4

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

5

Toro 99-5239

ANCHOR-CABLE
(Superseded to 136-5864)

$2.99

$

In Stock, Qty 7

0

6

Toro 105-3049

GUIDE-ROPE (Serial Range 230600000-230612003)

$

$

Not available

7

Toro 105-8593

HANDLE GUIDE KIT

$19.99

$

Usually ships in 3-6 days

0

7:1

Guide-RH

Note: Not serviced separately

$

$

Not available

7:2

Guide-LH

Note: Not serviced separately

$

$

Not available

8

Toro 104-8680-05

Handle-Upper

$74.99

$

In Stock, only 1 left!

0

9

Toro 104-8690

Spring-Torsion
(Superseded to 136-7166)

$3.49

$

In Stock, Qty 6

0

10

Toro 104-8678

HANDLE-CONTROL

$83.99

$

In Stock, only 1 left!

0

11

Toro 105-3033

Decal-Handle, Control

$25.99

$

Usually ships in 3-6 days

0

12

Toro 104-8679-03

Bail-Brake
(Superseded to 131-0880-03)

$25.99

$

In Stock, only 1 left!

0

13

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$17.99

$

In Stock, only 1 left!

0

14

Toro 99-1589

LEVER-TRACTION

$7.99

$

In Stock, Qty 15

0

16

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 8

0

17

Toro 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, only 4 left!

0

18

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 105-1831-05

Handle-Lower
(Superseded to 112-6440-05)

$67.99

$

In Stock, only 1 left!

0

20

Toro 105-1844

Cable-Traction

$27.99

$

In Stock, only 4 left!

0

21

Toro 105-6813

Retainer-Cable

$3.49

$

In Stock, Qty 5

0

22

Toro 105-6830

Guide-Cable

$

$

Not available
